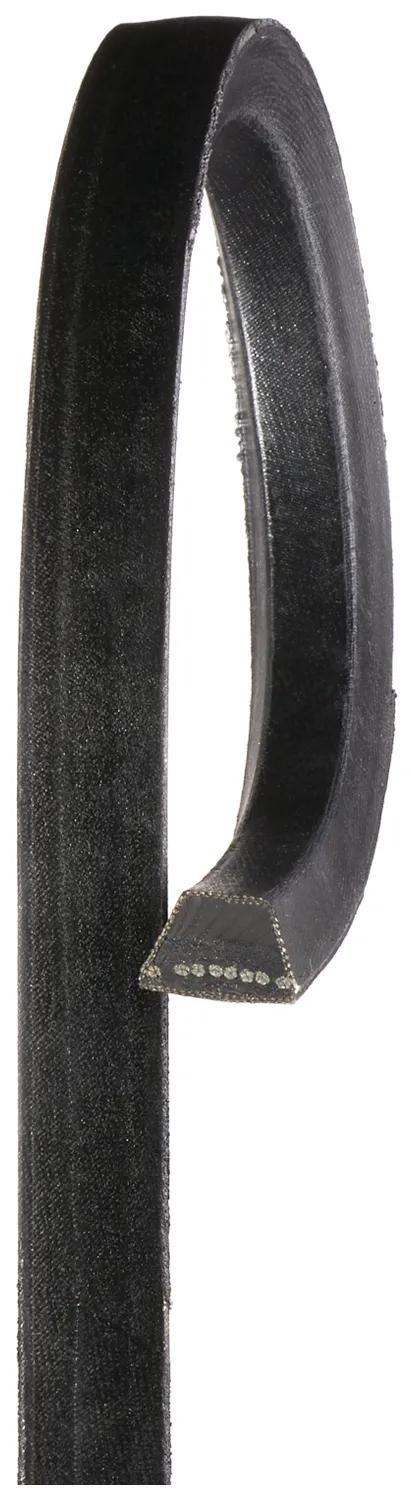

Classical Section Wrapped V-Belt, W: 7/8 in
#GATC136
Product Overview
Designed To Give Long, Dependable Service & Superior Performance On Heavy-Duty A, B, C, D & E Section Single Or Multiple V-Belt Drives.
Features & Benefits
- Also Known As Hi-Power II Belts.
- Composite Multi-Purpose Construction Reduces Flex Fatigue.
- Meets Rubber Manufacturers Association Tests For Static Conductivity.
- Superior Resistance To Oil, Heat, Ozone, Sunlight, Weather.
- Superior Length Stability Means Less Tensioning & Take-Up During Service.
Specifications
| Belt Top Width | 7/8 to 1 in (2.24 to 2.54 cm) |
| Construction | Wrapped |
| Length | 140 in |
| Material | Polyester |
| Notched | No |
| # of Grooves | 1 |
| Section | C |
| Length Range | 140 to 149.99 in |
| Type | Classical Section Wrapped V-Belt |
| Width | 7/8 in (2.24 cm) |
Interchanges & Equivalent parts:
| 02032172 |
| 02325CS |
| 055608 |
| 056259 |
| 107084 |
| 1316714 |
| 134300 |
| 14854 |
| 20521395 |
| 22C3550 |
| 240831 |
| 25021395 |
| 302793 |
| 3030002342258 |
| 3950006 |
| 41047660 |
| 4FH92 |
| 5438498 |
| 568952R1 |
| 591878R1 |
| 596222R1 |
| 63805 |
| 67136 |
| 70547286 |
| 7093027 |
| 72DH187P |
| 9810060 |
| 9811730 |
| 9811920 |
| AC136 |
| C136 |
| CD1014V |
| F17235 |
| F20033 |
| F240831 |
| H6060K |
| IC136 |
| L1047C |
| MS39257C136 |
| PC1395 |
| RT3136 |
| S134C |
| 78136 |
| CP136 |
| 1K612 |
| 1K7940 |
| 7A1360 |
| A-C136 |
| A557531 |
| 1C136 |
| 41010905 |
| RC136 |
| 90042136 |
