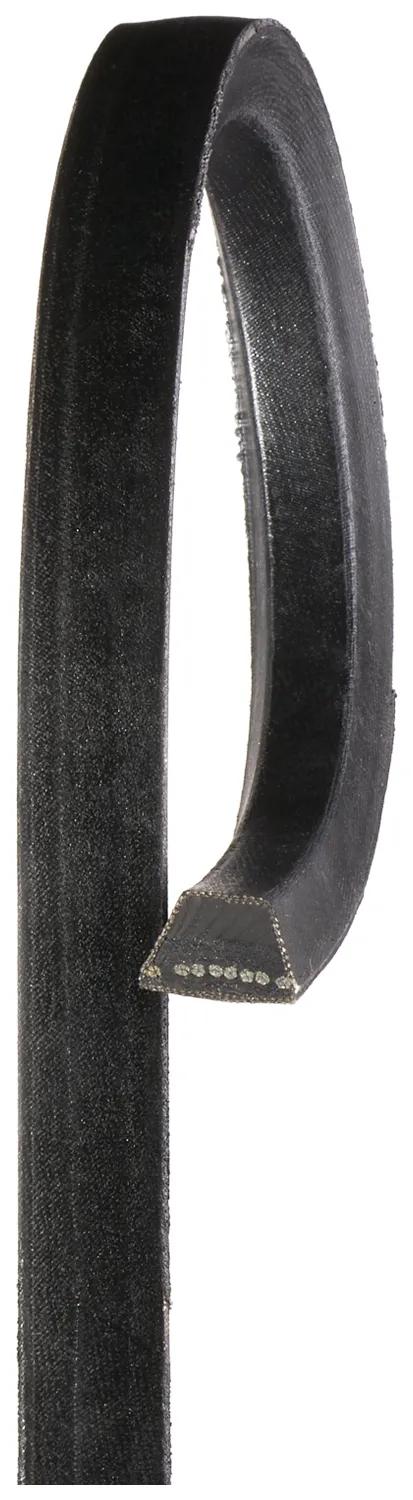

Classical Section Wrapped V-Belt, W: 7/8 in
#GATC90
Product Overview
Designed To Give Long, Dependable Service & Superior Performance On Heavy-Duty A, B, C, D & E Section Single Or Multiple V-Belt Drives.
Features & Benefits
- Also Known As Hi-Power II Belts.
- Composite Multi-Purpose Construction Reduces Flex Fatigue.
- Meets Rubber Manufacturers Association Tests For Static Conductivity.
- Superior Resistance To Oil, Heat, Ozone, Sunlight, Weather.
- Superior Length Stability Means Less Tensioning & Take-Up During Service.
Specifications
| Belt Top Width | 7/8 to 1 in (2.24 to 2.54 cm) |
| Construction | Wrapped |
| Length | 94 in |
| Material | Polyester |
| Notched | No |
| # of Grooves | 1 |
| Section | C |
| Length Range | 90 to 99.99 in |
| Type | Classical Section Wrapped V-Belt |
| Width | 7/8 in (2.24 cm) |
Interchanges & Equivalent parts:
| 02010525 |
| 02011044 |
| 04038B |
| 1010 |
| 10557 |
| 107078 |
| 12197 |
| 129696 |
| 13C30 |
| 146601297 |
| 160X3HC1 |
| 215249 |
| 22C2390 |
| 22CX49 |
| 284063 |
| 30900 |
| 360726V1 |
| 4616629 |
| 469095R1 |
| 4FJ22 |
| 515765E |
| 543920 |
| 607446R1 |
| 607898R1 |
| 67090 |
| 70543920 |
| 730697 |
| 7532730 |
| 78090 |
| 843029M1 |
| 856559 |
| 857862 |
| AAH127866 |
| AC86 |
| AC90 |
| AH19544H |
| AN32762N |
| AW7532730 |
| C11078C |
| CD1035V |
| CO10044 |
| E55668 |
| EB48257 |
| EG215249 |
| HCX942 |
| HXS82 |
| IC90 |
| K1825 |
| MS39257C90 |
| MZ3506 |
| N31419 |
| N31419A |
| N31419N |
| N34299 |
| N52547 |
| NP129167 |
| P43794 |
| PC94 |
| RE60 |
| V5094 |
| W7532730 |
| Z38698 |
| C90 |
| CP90 |
| 056911 |
| 11057 |
| 226967 |
| 275404 |
| 3030004945440 |
| 3030005290390 |
| 3030006907027 |
| 3030009882488 |
| 3409 |
| 4671445 |
| 5447317 |
| 5880038 |
| 5880039 |
| 636899 |
| 638444 |
| 711779 |
| 7530170 |
| 90792 |
| A-AH127866 |
| A-C86 |
| A41274 |
| A550169 |
| A555741 |
| A-C90 |
| A-W7532730 |
| AH127866 |
| AH158880 |
| AH19544 |
| C4A167 |
| C |
| 90042090 |
