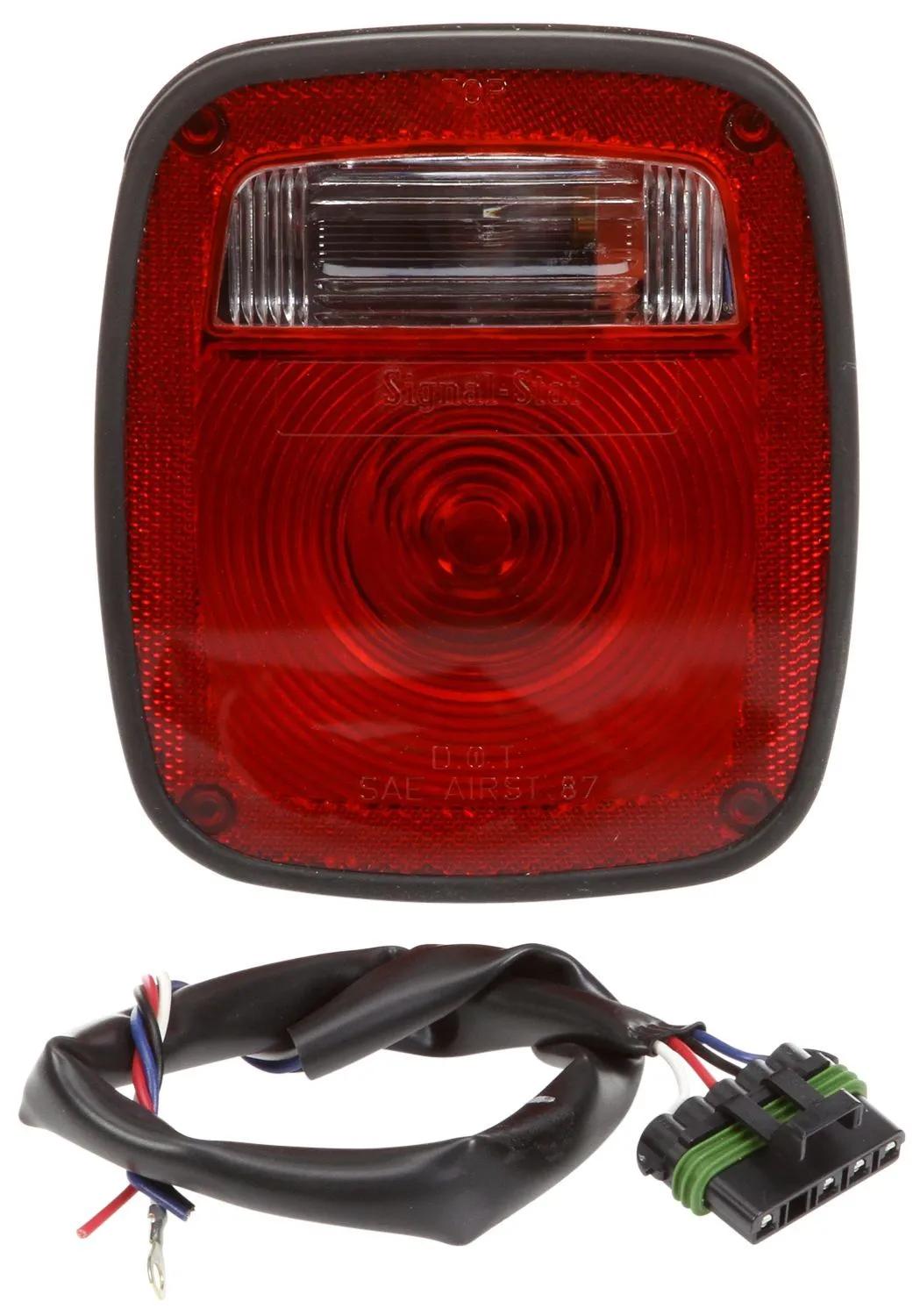

Combination Stop/Tail/Turn Light, Red & White
#TRL5014K
Product Overview
Signal-Stat, Incandescent, Red/Clear Polycarbonate Lens, RH, Combo Box Light, 3 Stud , Packard , Stripped End, 12V
Features & Benefits
- 5013, 5013K: GM #15565731, 15574697, 15613943, 15684994 Oshkosh #2078210 Peterbilt #16-06160L
- 5014: GM #15565732, 15574696, 15613944, 15684995 Freightliner #681-544-04-03 Oshkosh #2078200 Peterbilt #16-06160R, 16-06292
Specifications
| Amps | 0.59 amp to 2.1 amp |
| Color | Blanc, Rouge |
| Common Size | 5 in (12.7 cm) |
| Contents | Services GM # 15613944 & # 15565732; Navistar # 1661282C91 |
| Current Major | 2,1 amp |
| Current Minor | 0,59 amp |
| Depth | 2-27/32 in (7.21 cm) |
| Fits Pigtail Part #(s) | 9470 |
| Function | A, I, L, R2, S, T |
| Height | 6-47/64 in (17.09 cm) |
| Kit (Y/N) | No |
| # Lamp Prongs | 5 |
| Lamp Type | Ampoule remplaçable |
| Left, Right or Both Side | Right |
| Length | 6-3/4 in (17.15 cm) |
| Lens Height | 6-47/64 po (17,09 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 5-49/64 po (14,66 cm) |
| Mount Type | Montage par goujon |
| Number Of Wires | 3 |
| Plug Side One | Packard Connector |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Combination Stop/Tail/Turn Light |
| Series | Signal-Stat |
| Shape | Carré |
| Standard | FMVSS 108, DOT, SAE |
| Style | Metri-Pack main droite |
| Technology | Incandescent |
| VMRS Code | 034-002-022 |
| Volt | 12V |
| Weight | 1.36 lb (0.62 kg) |
| Width | 5-49/64 in (14.66 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 5014K |
| 84135014K |
| 8067856 |
| SIG5014K |
| TL5014K |
| TLD5014K |
| 5014D |
| TRU5014K |
| 5014KS1G |
| 8413-5014K |
| LIT5014K |
| TL 5014K |
| GRT53702 |
| 53702 |
