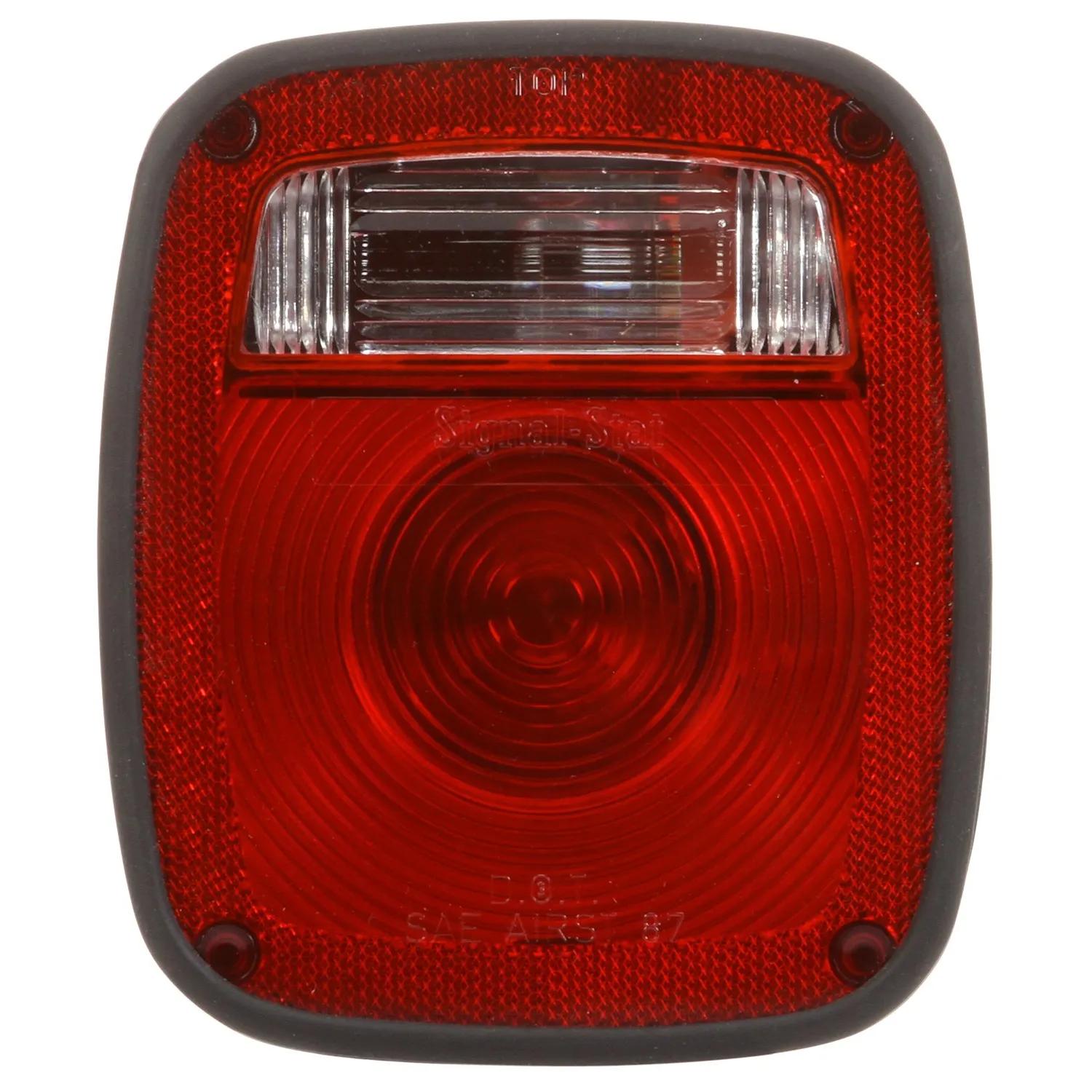

Combination Stop/Tail/Turn Light, Red & White
#TRL5014Y102
Product Overview
Signal-Stat, Incandescent, Red/Clear Polycarbonate Lens, RH, Combo Box Light, 3 Stud , Packard 12034047, 12V
Features & Benefits
- 5023Y102: Navistar #1661281C91
- 5014Y102: Navistar #1661282C91, 2009909C91
Specifications
| Color | Red & White |
| Common Size | 5 in (12.7 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.59 amp |
| Depth | 2-27/32 in (7.21 cm) |
| Height | 6-47/64 in (17.09 cm) |
| Kit (Y/N) | No |
| # Lamp Prongs | 5 |
| Lamp Type | Bulb Replaceable |
| Left, Right or Both Side | Right |
| Length | 6-3/4 in (17.15 cm) |
| Lens Height | 6-47/64 in (17.09 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 5-49/64 in (14.66 cm) |
| Mount Type | Stud Mount |
| Plug Side Two | No Plug |
| Product Type | Combination Stop/Tail/Turn Light |
| Series | Signal-Stat |
| Shape | Square |
| Standard | FMVSS 108, DOT, SAE |
| Technology | Incandescent |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Weight | 1.27 lb (0.58 kg) |
| Width | 5-49/64 in (14.66 cm) |
Interchanges & Equivalent parts:
| 2009909C91 |
| 1661282C91 |
| 53702 |
| 5014Y102 |
| SIG5014Y102 |
| TL5014Y102 |
| TLD5014Y102 |
| 8413-5014Y102 |
| LIT5014Y102 |
| TL 5014Y102 |
| GRT53702 |
| TKL5014Y102 |
