Combination Stop/Tail/Turn Light, Red & White
#TRL5072
Product Overview
Signal-Stat, LED, Red/Clear Acrylic Lens, LH, Combo Box Light, 3 Stud , License Light, Hardwired, Packard /Ring Terminal, 12V
Features & Benefits
- Upgrade your vehicle to LED technology, allowing significant return on your investment
- LEDs have no filament, therefore are not susceptible to shock and vibration

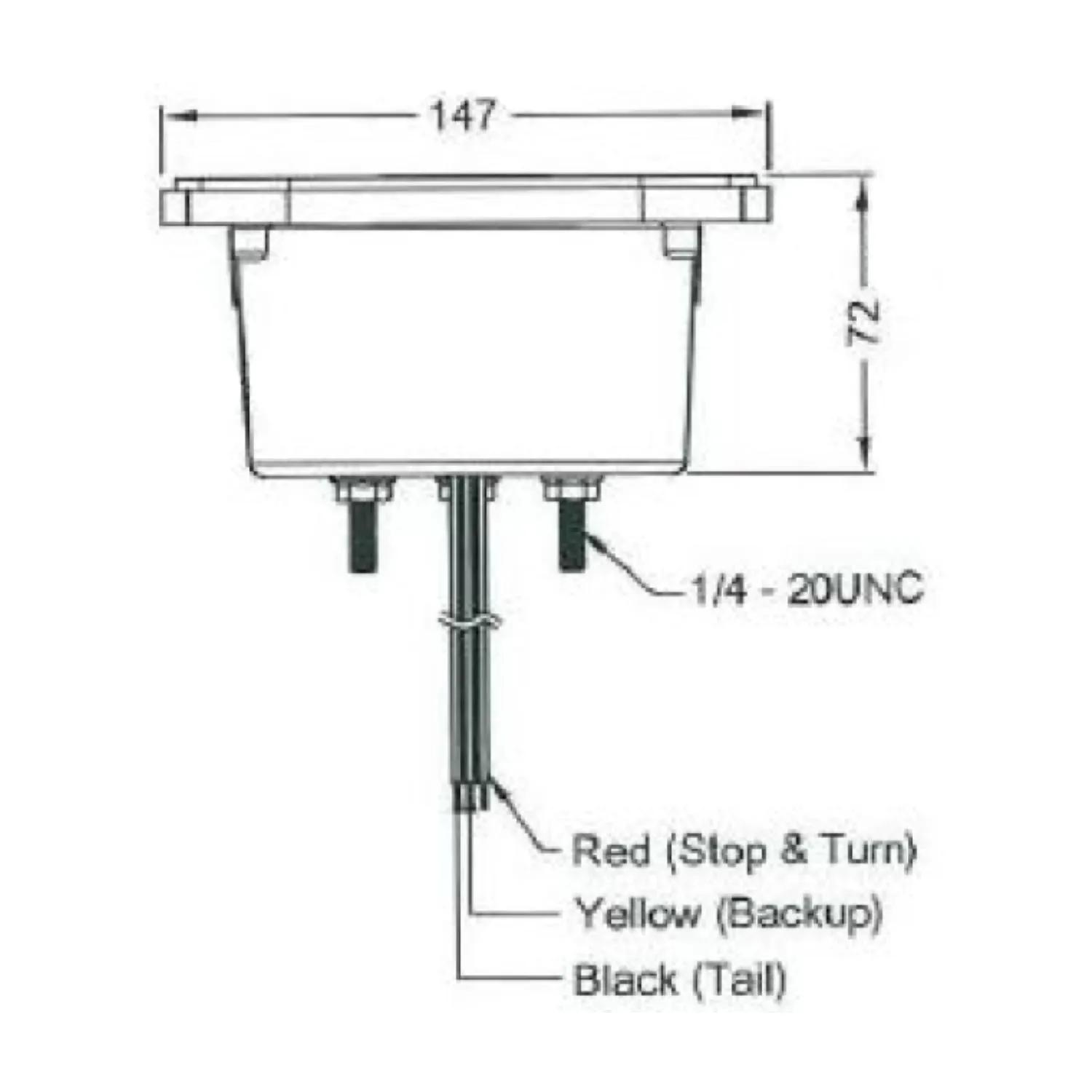

Specifications
| Color | Red & White |
| Common Size | 5 in |
| Contents | Mulit-Function Lamp. Roadside |
| Current Major | 0.14 amp |
| Current Minor | 0.06 amp |
| Depth | 2-29/32 in |
| Height | 6-47/64 in |
| Kit (Y/N) | No |
| Lamp Type | Mulit-Function Lamp, Roadside |
| Left, Right or Both Side | Left |
| Length | 6-47/64 in |
| Lens Height | 6-47/64 in |
| Lens Material | Acrylic |
| Lens Width | 5-51/64 in |
| Mount Type | Stud Mount |
| Number Of Wires | 4 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | Packard Connector |
| Product Type | Combination Stop/Tail/Turn Light |
| Series | Signal-Stat |
| Shape | Rectangular |
| Standard | FMVSS 108, DOT, SAE |
| Technology | LED |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Weight | 1.29 lb |
| Width | 5-51/64 in |
| Wire Gauge | 18 ga |
| Wire Length | 8 in |
Interchanges & Equivalent parts:
| 5072 |
| TKL5072 |
