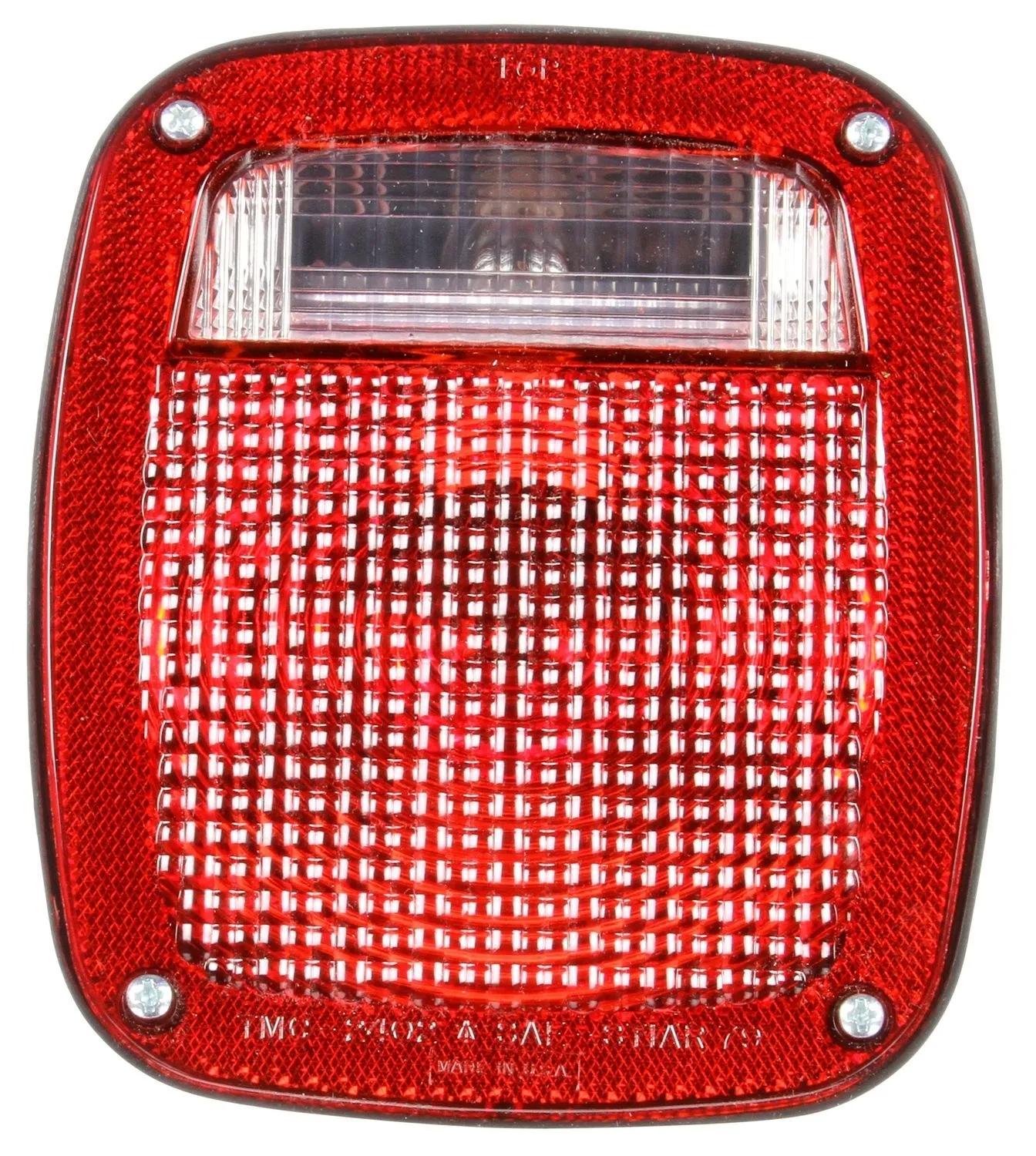

Combinaison arrêt/arrière/clignotant, rouge et blanc
#TRL5315Y101
Sommaire du produit
Signal-Stat, incandescent, lentille en polycarbonate rouge/transparent, côté gauche, éclairage de boîtier combiné, 3 goujons, éclairage de licence, Packard, 12 V
Caractéristiques et avantages
- Navistar #1661281C91
- Navistar #1661282C91
- RH lamp popular replacement for GM/IH OE #56139474, #15565732
- Combination stop, tail, turn, back-up and reflex reflector
- Dual optic acrylic lens
- Permastat body provides impact resistance
Spécifications
| Amps | 0.59 amp to 2.1 amp |
| Color | Red & White |
| Common Size | 5 in (12.7 cm) |
| Contents | Lamp |
| Current Major | 2.1 amp |
| Current Minor | 0.59 amp |
| Depth | 2-3/4 in (6.99 cm) |
| Finish | Black |
| Fits Pigtail Part #(s) | 9470 |
| Function | A, I, L, R2, S, T |
| Height | 6-11/16 in (16.99 cm) |
| Kit (Y/N) | No |
| # Lamp Prongs | 5 |
| Lamp Type | Bulb Replaceable |
| Left, Right or Both Side | Both Sides |
| Length | 6-3/4 in (17.15 cm) |
| Lens Height | 6-11/16 in (16.99 cm) |
| Matériau de la lentille | Polycarbonate |
| Lentille - Largeur | 5-3/4 in (14.61 cm) |
| Type de support | Stud Mount |
| Nombre de câbles | 5 |
| Fiche #2 | No Plug |
| Type de produit | Combination Stop/Tail/Turn Light |
| Séries | Signal-Stat |
| Forme | Square |
| Simple ou double | Single |
| Standard | FMVSS 108, DOT, SAE |
| Style | Metri-Pack Replacement With Double Connector |
| Technologie | Incandescent |
| Code VMRS | 034-002-013 |
| Volt | 12V |
| Poids | 1.2 lb (0.54 kg) |
| Largeur | 5-3/4 in (14.61 cm) |
Interchanges et pièces équivalentes:
| 15565732 |
| 1661281C91 |
| 1661282C91 |
| 56139474 |
| 46003806 |
| 5315Y101 |
| 84135315Y101 |
| SIG5315Y101 |
| TLD5315Y101 |
| TRL5315Y101 |
| 80383R |
| TRU5315Y101 |
| 5315Y101S1G |
| 81143 |
| 81196 |
| 8413-5315Y101 |
| LIT5315Y101 |
| TL 5315Y101 |
| TL 5315Y101 |
| TL5315Y101 |
| GRT53702 |
| GRT53762 |
| TKL5315Y101 |
| TG53762 |
| 53762 |
