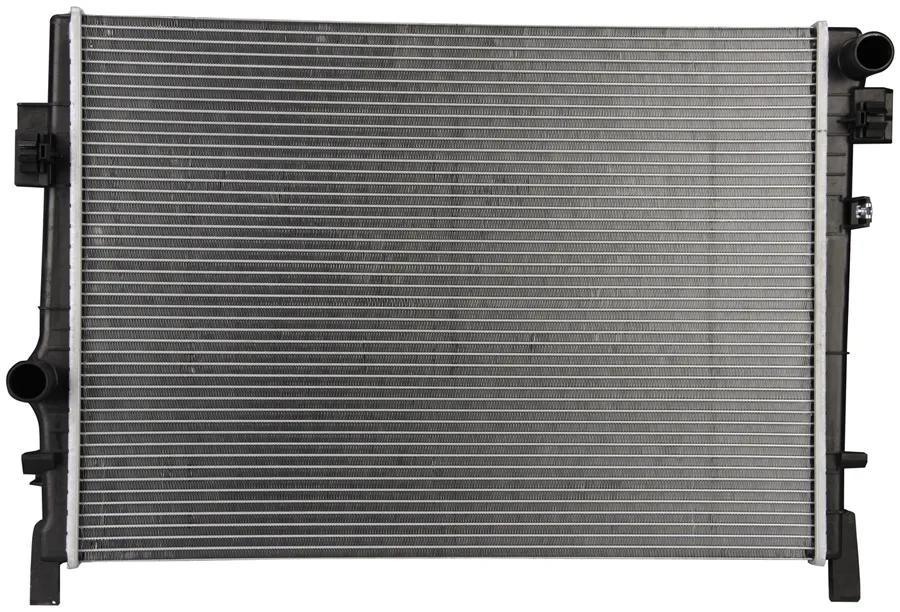

Complete Radiator

#SPECU13084

Product Overview


The Structure And Design Of Spectra Premium Radiators Are Built To Undertake The Same Durability And Expectations Of That Of The OE.

Interchanges & Equivalent parts: 13084, OR13084, 4113084, CU13084, 68038238AA, 2844, 68038238AB, 68102115AA, 2219061, 0ACR5918, 3455, 103456, C13084, 438325, CH3010348, REA4113084A, A13084, RAD13084, 8013084

Specifications


Direct Fit or Universal Direct Fit
Downflow or Crossflow Crossflow
Height (in.) 25.25
Inlet Diameter (in) 1-3/8 in.
Length (in.) 18.5
Number of Rows 1
Outlet Diameter (in) 1.375
Radiator Make Dodge
Radiator Material Aluminum
Transmission Ports (Yes/No) No
Radiator Outlet Connector Size 1 3/8 in.
Radiator Core Size 25-1/8 in. x 18-1/16 in. x 5/8 in.
Radiator Inlet Connector Size 1 3/8 in.

Features & Benefits


  • To Allow Room For The Occurring Thermal Expansion, OE Clevis Pins Are Included Where It Is Required
  • Subject To Aging And Endurance Testing To Validate Performance Under Extreme Weather Conditions
  • Premium OE Hardware And Fittings Included In Every Box
  • Increased Tube Wall Thickness For Durability And Longevity
  • To Reduce Stress On The Headers And Prevent Warping During Thermal Expansion, Stress Cuts Are Made To The Side Rails
  • Redesigned Corner Brackets To Increase Unit Durability And Improve Ease Of Installation
  • To Reduce Stress On The Headers And Prevent Warping During Thermal Expansion, Stress Cuts Are Made To The Side Rails
  • Redesigned Corner Brackets Toá Increase Unit Durability And Improve Ease Of Installation
