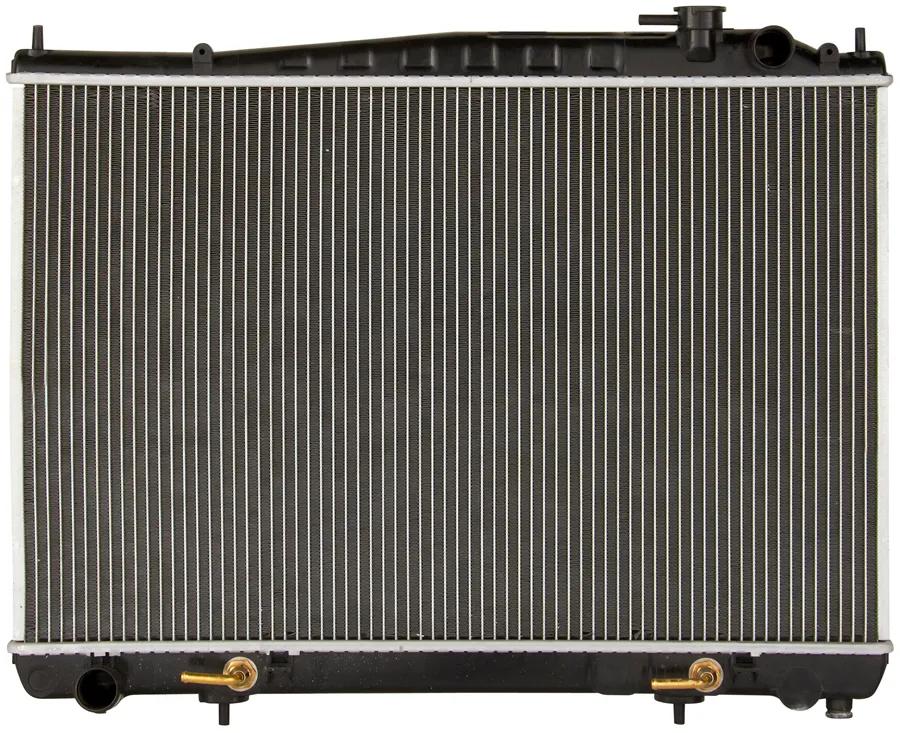

Complete Radiator

#SPECU2054

Product Overview


The Structure And Design Of Spectra Premium Radiators Are Built To Undertake The Same Durability And Expectations Of That Of The OE.

Interchanges & Equivalent parts: 431478, 214603H207, 214606P011, 214606P010, 2214410, REA412054A, 214603H017, 2275, CU2275, OR2054, 2054, 214606P013, RAD2275, 214606P012, 2668, 7183A, A2275, A2054, 0AYL5510, 8012054, 9889, 2726, 2879, 412054

Specifications


Direct Fit or Universal Direct Fit
Downflow or Crossflow Downflow
Height (in.) 17.6875
Inlet Diameter (in) 1-3/8 in.
Length (in.) 27.0625
Number of Rows 1
Outlet Diameter (in) 1.375
Radiator Inlet Header Size 1 7/8 in. x 28 1/16 in.
Radiator Make Infiniti
Radiator Material Aluminum
Transmission Ports (Yes/No) Yes
Radiator Oil Cooler Size (Concentric) 14 3/4 in.
Radiator Outlet Connector Size 1 3/8 in.
Radiator Mount Type Top Pin / Bottom Saddle
Radiator Core Size 17-11/16 in. x 27-1/16 in. x 15/16 in.
Radiator Inlet Connector Size 1 3/8 in.
Radiator Outlet Header Size 7 1/4 in. x 28 1/8 in.
Transmission Oil Cooler Size Concentric 14-3/4 in.

Features & Benefits


  • To Allow Room For The Occurring Thermal Expansion, OE Clevis Pins Are Included Where It Is Required
  • Subject To Aging And Endurance Testing To Validate Performance Under Extreme Weather Conditions
  • Premium OE Hardware And Fittings Included In Every Box
  • Premium OE Hardware And Fittings Included In Every Box
  • Increased Tube Wall Thickness For Durability And Longevity
  • To Reduce Stress On The Headers And Prevent Warping During Thermal Expansion, Stress Cuts Are Made To The Side Rails
  • Redesigned Corner Brackets Toá Increase Unit Durability And Improve Ease Of Installation
