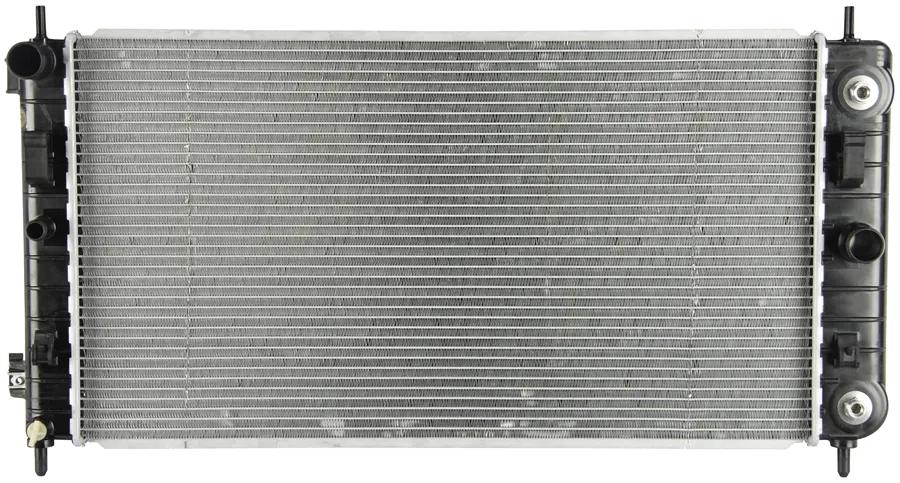

Complete Radiator

#SPECU2727

Product Overview


The Structure And Design Of Spectra Premium Radiators Are Built To Undertake The Same Durability And Expectations Of That Of The OE.

Interchanges & Equivalent parts: RAD2727, 412727, 735009, A27271, OR2727, 21483, 3264, C2727, REA412727A, 8012727, 52494386, 3437, 2784, GM3010444, 9512A, 0AGM5731, 2727, GM3010508, 433832, C2972, 9496, CU2727, RAD2972, 15873468, 2972, 2851, 2431, 2219014, 103119

Specifications


Direct Fit or Universal Direct Fit
Downflow or Crossflow Crossflow
Height (in.) 26.6875
Inlet Diameter (in) 1-5/16 in.
Length (in.) 14.5625
Number of Rows 1
Outlet Diameter (in) 1.3125
Radiator Inlet Header Size 2 1/16 in. x 15 1/4 in.
Radiator Make Chevrolet / Pontiac / Saturn
Radiator Material Aluminum
Transmission Ports (Yes/No) Yes
Radiator Oil Cooler Size 3 Plates 11 1/2 in.
Radiator Outlet Connector Size 1 5/16 in.
Radiator Mount Type Top / Bottom Post
Radiator Core Size 26-11/16 in. x 14-9/16 in. x 13/16 in.
Radiator Inlet Connector Size 1 5/16 in.
Radiator Outlet Header Size 2 1/16 in. x 15 in.
Transmission Oil Cooler Size 3 Plates 11-1/2 in.

Features & Benefits


  • To Allow Room For The Occurring Thermal Expansion, OE Clevis Pins Are Included Where It Is Required
  • Subject To Aging And Endurance Testing To Validate Performance Under Extreme Weather Conditions
  • Premium OE Hardware And Fittings Included In Every Box
  • Premium OE Hardware And Fittings Included In Every Box
  • Increased Tube Wall Thickness For Durability And Longevity
  • To Reduce Stress On The Headers And Prevent Warping During Thermal Expansion, Stress Cuts Are Made To The Side Rails
  • Redesigned Corner Brackets Toá Increase Unit Durability And Improve Ease Of Installation
