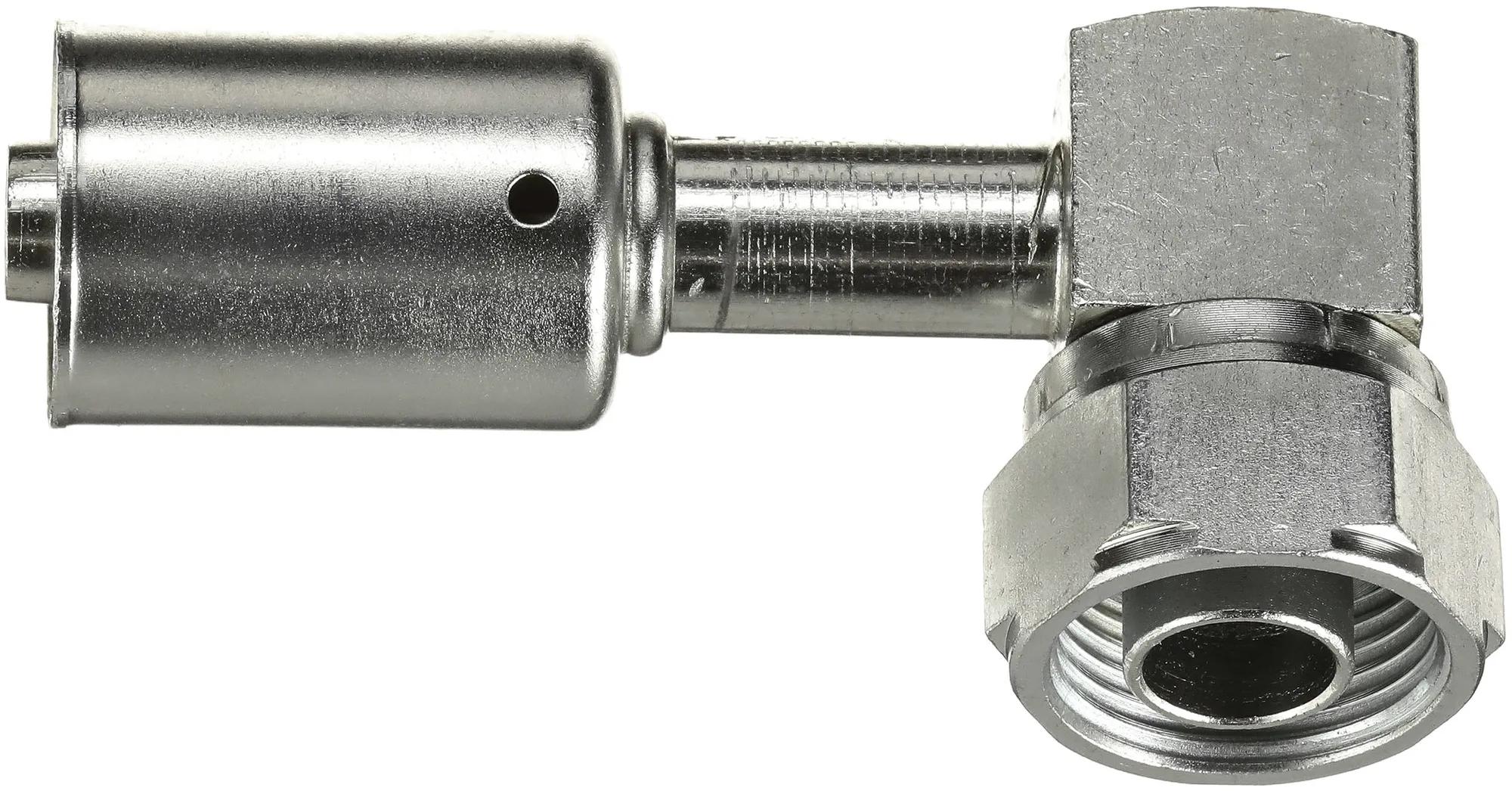

Compressor Female SAE Tube O-Ring Nut Swivel - 90 Block - Steel (PolarSeal ACA)
#GATG45959-0810S
Product Overview
PolarSeal ACA Couplings Are For Use w/ Gates PolarSeal Air Conditioning Hose.
Features & Benefits
- Available in Various Bend Angles & Common Stem Sizes -6, -8, -10 & -12.
- O-Ring Not Included. Must Be Ordered Separately.
- Offered in Many of the Most Popular Styles of Aluminum Couplings w/ Select Styles Available in Zinc-Plated Steel.
- Utilize Gates PolarSeal Portable Crimper, or One of Gates Bench Top Crimpers, to Make Crimped AC Assemblies Using ACA Couplings & PolarSeal Hose.
Specifications
| Coupling Description | PolarSeal ACA Compressor Female SAE Tube O-Ring Nut Swivel - 90 Block - Steel |
| Cut Off (in) – C | 1-7/16 in (3.66 cm) |
| Drop (in.) | 51/64 in (2.03 cm) |
| Hose Recommendation | Gates PolarSeal Refrigerant Hose |
| Industrial Description | 8ACA-10CFTON90BL-S |
| Inside Diameter | 1-1/2 in (3.81 cm) |
| Length | 3-1/64 in (7.67 cm) |
| Series | PolarSeal ACA Compressor Female SAE Tube O-Ring Nut Swivel - 90 deg Bent Tube - Steel |
| Type | PolarSeal ACA Compressor Female SAE Tube O-Ring Nut Swivel - 90 deg Bent Tube - Steel |
Interchanges & Equivalent parts:
| G45959-0810S |
| 733202095 |
