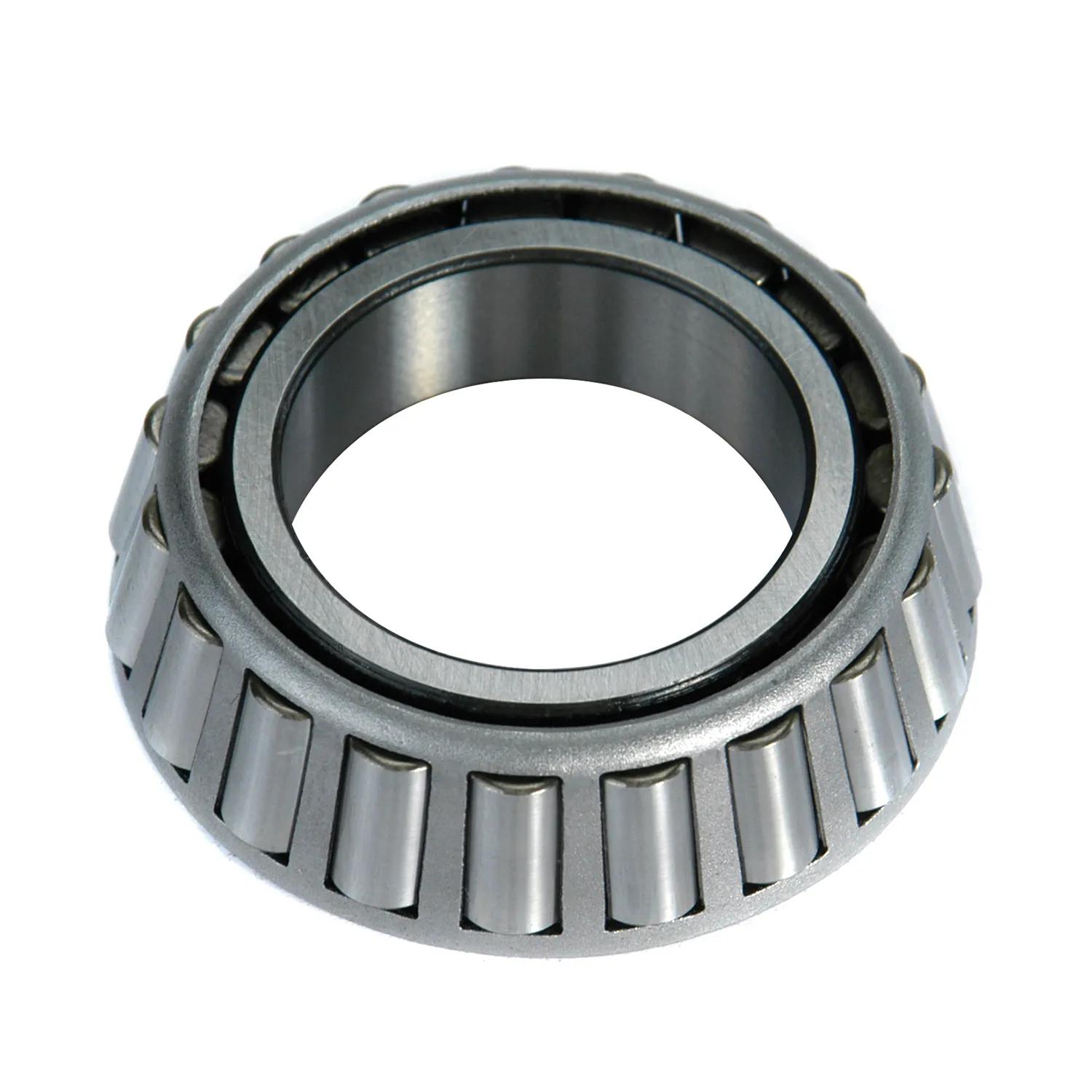

CONE
#TIM3782
Specifications
| Bearing Weight | 1.00 Kg (2.1 lb) |
| Bearing Width (T) | 30.163 mm (1.1875 in) |
| Bore (d) | 44.450 mm (1.7500 in) |
| Cage-Cone Frontface Clearance (Ab) | 1.5 mm (0.06 in) |
| Cage-Cone Backface Clearance (Aa) | 1.5 mm (0.06 in) |
| Cage Type | Stamped Steel |
| Cone Backface Backing Diameter (db) | 57.91 mm (2.28 in) |
| Cone Backface "To Clear" Radius (R) | 3.560 mm (0.14 in) |
| Cone Frontface Backing Diameter (da) | 52.07 mm (2.05 in) |
| Cone Width (B) | 30.302 mm (1.1930 in) |
| Cup Backface Backing Diameter (Db) | 82.04 mm (3.23 in) |
| Cup Backface ""To Clear"" Radius (r) | 3.30 mm (0.130 in) |
| Cup Frontface Backing Diameter (Da) | 87.90 mm (3.50 in) |
| Cup Outer Diameter (D) | 93.264 mm (3.6718 in) |
| Cup Part Number | 3720 |
| Cup Width (C) | 23.813 mm (0.9375 in) |
| Design Units | Imperial |
| Dynamic Radial Rating (1 million revolutions) (C1) | 27500 lbf (122000 N) |
| Dynamic Radial Rating (90 million revolutions) (C90) | 7120 lbf (31700 N) |
| Dynamic Thrust Rating (90 million revolutions) (Ca90) | 4120 lbf (18300 N) |
| Effective Center Location (a) | -8.1 mm (-0.32 in) |
| Factor (K) | 1.73 |
| Heat Generation Factor (Rib-Roller End) (G2) | 14.5 |
| Heat Generation Factor (Roller-Raceway) (G1 ) | 49.9 |
| Geometry Factor (Cg) | 0.0903 |
| ISO Factor (e) | 0.34 |
| ISO Factor (Y) | 1.77 |
| Series | 3700 |
| Static Radial Rating (C0) | 34300 lbf (153000 N) |
