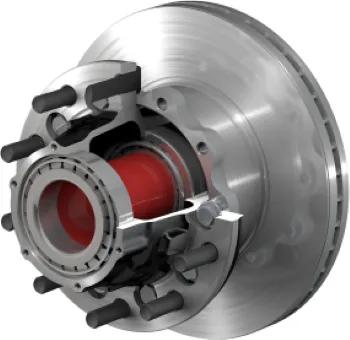

ConMet Hub & Rotor Assembly, Trailer, Stud: M22 x 1.5 mm x 3-7/16 in, Preset Disc Brake with ABS Tone Ring
#CON10083402
Product Overview
Hub and Rotor Assembly, Preset, Disc Brake, U-Section Rotor, Parallel Spindle, Iron Hub, Aluminum Wheel, Trailer Position, ABS Tone Ring Includes
Specifications
| Axle Code | TP |
| Flange Offset | 51/64 in (4.57 cm) |
| Hub Rating (lb) | 12500 lbs (5682 kg) |
| Inner Bearing Cup Number | 432 |
| Outer Bearing Cup Number | 432 |
| Position | Trailer |
| Stud Length | 3-7/16 in (8.74 cm) |
| Weight (lbs) | 148 lbs (67.13 kg) |
| Wheel Stud Bolt Circle Diameter | 11-1/4 in (28.58 cm) |
| Wheel Stud Thread Size | M22 X 1.5 mm |
