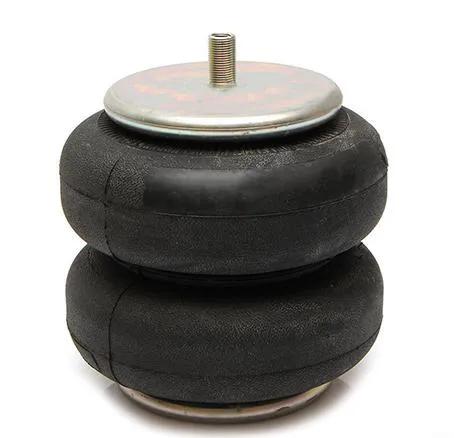

Convoluted Air Spring for Hendrickson UBL Series Underbeam Lift and Trailer Models
#SAP557897
Product Overview
Air Spring, Convoluted Air Spring, For Hendrickson UBL Series Underbeam Lift, HLUR-2 (Pararev), HLN (Non-Steer), HLP (Paralift), HLUN, HLU, All Models Trailer
Specifications
| Air Spring Type | Convoluted |
| Bottom Plate Diameter | 6-19/64 in |
| Bottom Stud Configuration | 3/8 in-16 UNC |
| Quantity | 1 |
| Top Plate Diameter | 6-19/64 in |
| Top Plate Hole/Stud Qty | 1 |
| Top Stud Configuration | 1/4 in - 18 NPTF |
| Fits Models | Hendrickson UBL Series Underbeam Lift, HLUR-2 (Pararev), HLN (Non-Steer), HLP (Paralift), HLUN, HLU, All Models Trailer |
| Product Category | Air Spring |
Interchanges & Equivalent parts:
| SP 557897 |
| 23114 |
| 2878 |
| 70418501 |
| C23114 |
| R002878 |
| S23114 |
