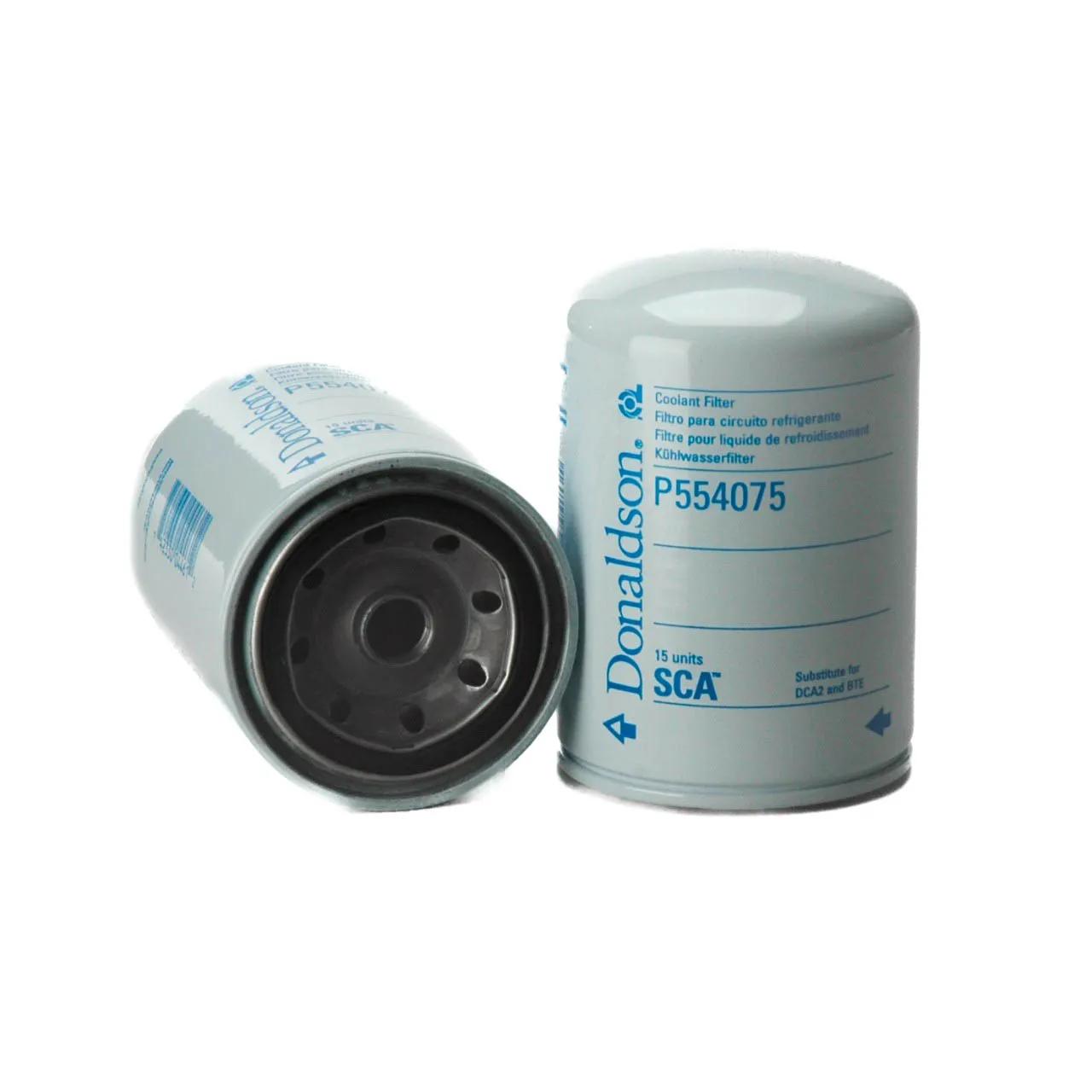

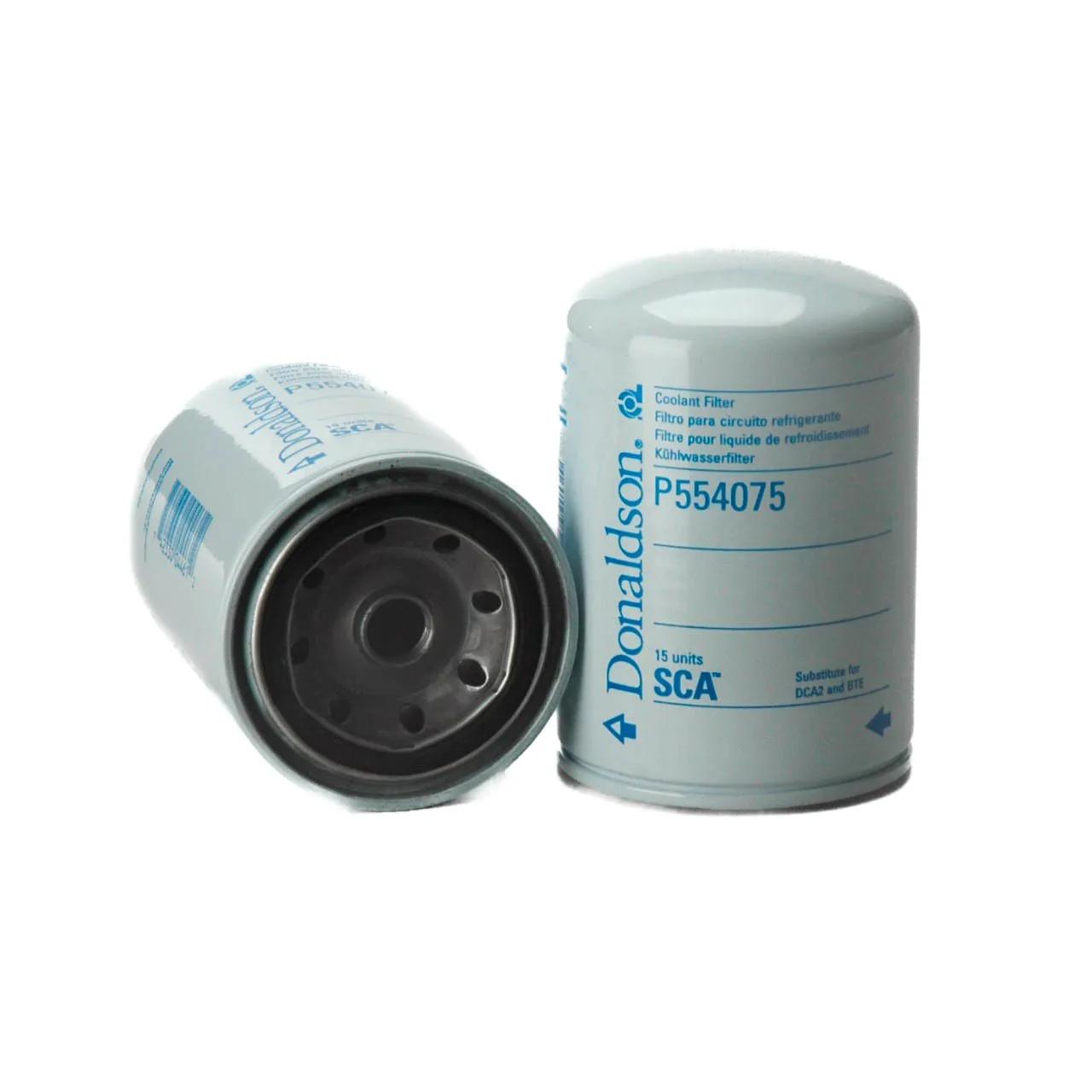

Coolant Filter L: 5,36 in, Thread : 11/16-16 UN , OD: 3,66 in
#DONP554075
Features & Benefits
- Donaldson coolant filters provide protection from contamination for a range of coolant systems
- Contains enough additive to initially charge the cooling system to reach the first service interval
- Seals are constructed specifically to withstand extreme heat and cold
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency 99% | 50 Micron |
| Efficiency Test Std | SAE J1985 |
| Engine Manufacturer | Cummins |
| Gasket ID | 2.4 in (61 mm) |
| Gasket OD | 2.8 in (71.2 mm) |
| Length | 5.36 in (136.2 mm) |
| Outer Diameter | 3.66 in (92.97 mm) |
| Length Range | 5 to 5.99 in |
| Style | Spin-On |
| Thread Size | 11/16-16 UN |
Interchanges & Equivalent parts:
| AMW2054 |
| AMW2056 |
| ABPN10GWF2054 |
| LFW4013 |
| WF2054 |
| WF2056 |
| WF2091 |
| WF2145 |
| WFR82014 |
| WFR82054 |
| WFR82055 |
| WFR82056 |
| WFR82066 |
| PR7570 |
| A17002 |
| H29WF |
| H32WF |
| WE2054 |
| LFW5870 |
| 4075 |
| PW4456 |
| WC5713 |
| SW1639 |
| SW1641 |
| SW1620 |
| SFC2054 |
| 24075 |
| SFC2075 |
| 5540524000 |
| 1801088C1 |
| 441365C1 |
| 441365C2 |
| 690140C1 |
| 690172C1 |
| 797890G1 |
| 1W5518 |
| 2266566 |
| 3I1254 |
| 3I1285 |
| 3I1291 |
| VS1816 |
| 12565210 |
| 2512644 |
| 3305370 |
| 3316461 |
| 531210 |
| 125652107 |
| 70698281 |
| 71497007 |
| D5HZ8A424B |
| DNP554075 |
| 299083 |
| 04WF2054 |
| 51914364 |
| 6004111030 |
| 6004111161 |
| 6004111171 |
| CUWF2054A |
| GUWF2054 |
| 2434 |
| C3318318 |
| 40C0435 |
| 50063050001 |
| W6508262 |
| DONP554075 |
| 264589 |
| BW2006 |
| 5000822871 |
| OE46263 |
| 3318318 |
| 991218318 |
| 36050 |
| 15274300 |
| 23507189 |
| T70564 |
| 688840 |
| T061042 |
| WF554075 |
| 207015007 |
| 79286195 |
| 79286795 |
| 811415 |
| 207010002 |
| 27118239 |
| WGW2056 |
| 800152007 |
| 6004111581 |
| 00811415 |
| 125652100 |
| LFW2055 |
| PW4013 |
| BW5140 |
| 4228689 |
| L4228689 |
| DN P554075 |
| DN P554075 |
| WF2075 |
| WF2074 |
| 3100308 |
| 3100307 |
| 725095050 |
| 29005354 |
| 5580026590 |
| 476011830 |
| 465532590 |
| 91008147 |
| 808613610 |
| E8NN8A424D |
| WF120 |
| PR3753 |
