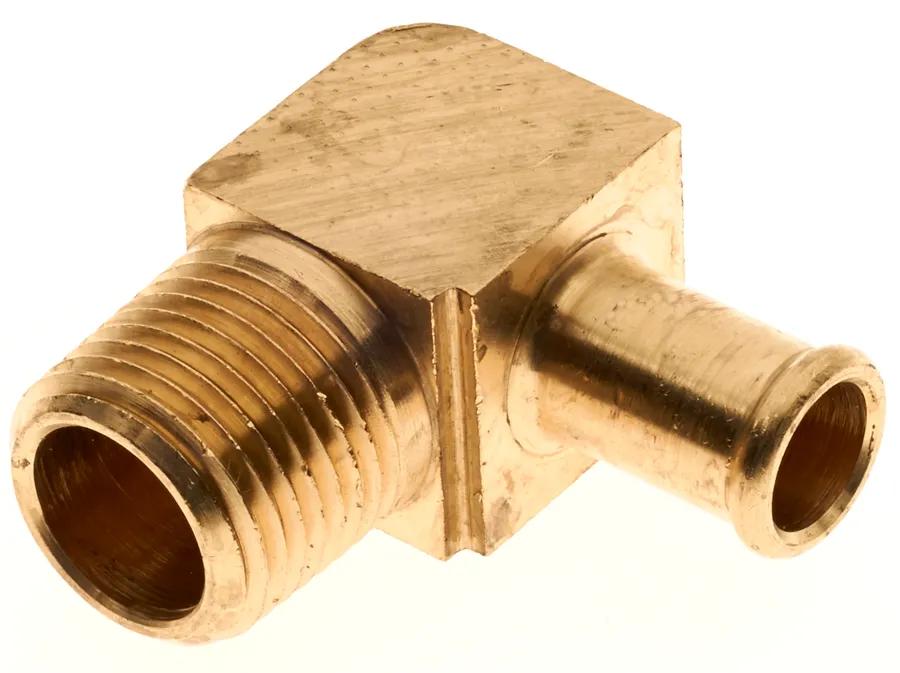

Coupling, 10SB-8RMP90
#GATG37106-1008
Product Overview
Recommended for Low Pressure Fuel, Oil, Compressed Air & Water Lines Used in Small Engines, Vacuum Advance & Evaporative Emission Control Systems.
Features & Benefits
- Contact Gates to Verify Compliance to Desired Specifications & Suitability for Particular Applications.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Single Bead Fittings Are Quick Connecting, Field Attachable & Reusable.
- An Economical Choice for General Purpose Fluid Applications.
- Single Bead is Sometimes Referred to as Beaded Nipple.
- Use w/ Low Pressure Hose Such as Multi-Purpose or General Purpose Hose.
Specifications
| Angle | 90 deg |
| Fits Hose Size | 5/8 in (1.6 cm) |
| Fixed or Swivel Type | Fixed |
| Industrial Description | 10SB-8RMP90 |
| Inside Diameter | 5/8 in (1.6 cm) |
| Inside Diameter 1 (in) | 5/8 in (1.6 cm) |
| Length | 1-13/64 in (3.05 cm) |
| Material | 360 Brass |
| Pressure | 60 psi (4.14 bar) |
| Temperature | -40°F @ +250°F (-40°C @ +121°C) |
| Thread Type | Pipe Thread |
Interchanges & Equivalent parts:
| G37106-1008 |
| 725016685 |
