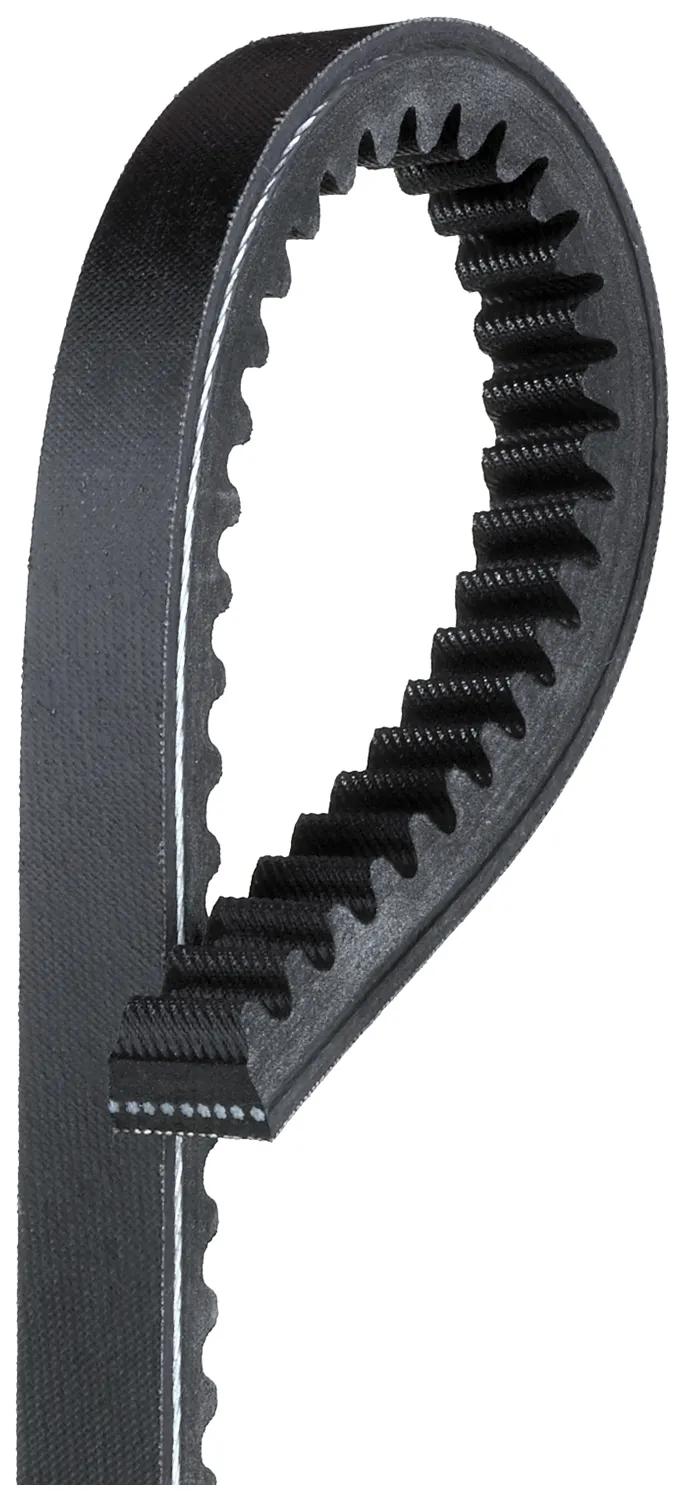

Truck & Bus V-Belt, L: 51.85 in, W: 19/32 in
#GATTR22517
Features & Benefits
- Meets SAE J636b and SAE J637 specifications.
- Oil and heat-resistant construction throughout.
- Special tensile cords give high stretch resistance
- Special notch design resists cracking while providing tensile member support during operation.
- Deep notch pattern also allows greater flexibility over small diameter pulleys and helps keep the belt cool.
Specifications
| Angle | 40 deg |
| Belt Top Width | 1/2 to 5/8 in (1.27 to 1.6 cm) |
| Construction | Notched |
| Length | 52.5 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 1 |
| Section | RA |
| Length Range | 50 to 54.99 in |
| Type | Truck & Bus V-Belt |
| Weight | 0.53 lb (0.24 kg) |
| Width | 19/32 in (1.5 cm) |
Interchanges & Equivalent parts:
| GYB22524 |
| 00641325 |
| 0070020 |
| 0070052 |
| 0119780 |
| 026117 |
| 0412021752 |
| 0412031752 |
| 049006501 |
| 05291927 |
| 110151A |
| 22524 |
| 0412121752 |
| 109937 |
| 122201A |
| 131149 |
| 134778 |
| 134788 |
| 147985H3 |
| 157857 |
| 15A1310 |
| 15A1325 |
| 178563 |
| 181GP |
| 182256 |
| 191830 |
| 210677 |
| 21140Z5617 |
| 212585 |
| 213171 |
| 22-520 |
| 22-522 |
| 22-524 |
| 2310001020 |
| 231000120 |
| 234601R1 |
| 241M |
| 243603K11 |
| 243603R1 |
| 243603R11 |
| 243603R12 |
| 25-13180 |
| 25-22517 |
| 259401 |
| 2612532 |
| 2800047520 |
| 3040364 |
| 313669R1 |
| 313669R11 |
| 33X128 |
| 359016C91 |
| 359022C91 |
| 35974HA |
| 35974HAX |
| 35974HBX |
| 3857B1520 |
| 390461R1 |
| 390461R2 |
| 39974HA |
| 4028662 |
| 427956 |
| 430009 |
| 432676 |
| 432998 |
| 4351296 |
| 4353709 |
| 4387311 |
| 44739 |
| 48185 |
| 54481 |
| 54918 |
| 550469 |
| 59202 |
| 62A7 |
| 6309903 |
| 670339C1 |
| 670582C1 |
| 674459 |
| 674460 |
| 686190X91 |
| 700225 |
| 70259401 |
| 81304 |
| 87878HA |
| 87878HAX |
| 900149224 |
| 910416-6250 |
| 997222 |
| 9974520 |
| A13571 |
| A38866 |
| A63840 |
| AE1623 |
| B-22524-A |
| B5510 |
| D11024730 |
| D3HA 8620 NA |
| DE51296 |
| DE512961 |
| DE512962 |
| GT22523 |
| GT22523E |
| GT22523T |
| GT22523TA |
| GT601 |
| GTFL601 |
| GTTR22517 |
| JE-524 |
| JE-524-C |
| MF8505 |
| MF8510 |
| PGF12200 |
| PGF12200E |
| R82602 |
| R97939 |
| RECMF8510 |
| REMF8505 |
| REMF8510 |
| S2292 |
| S2515 |
| T22517 |
