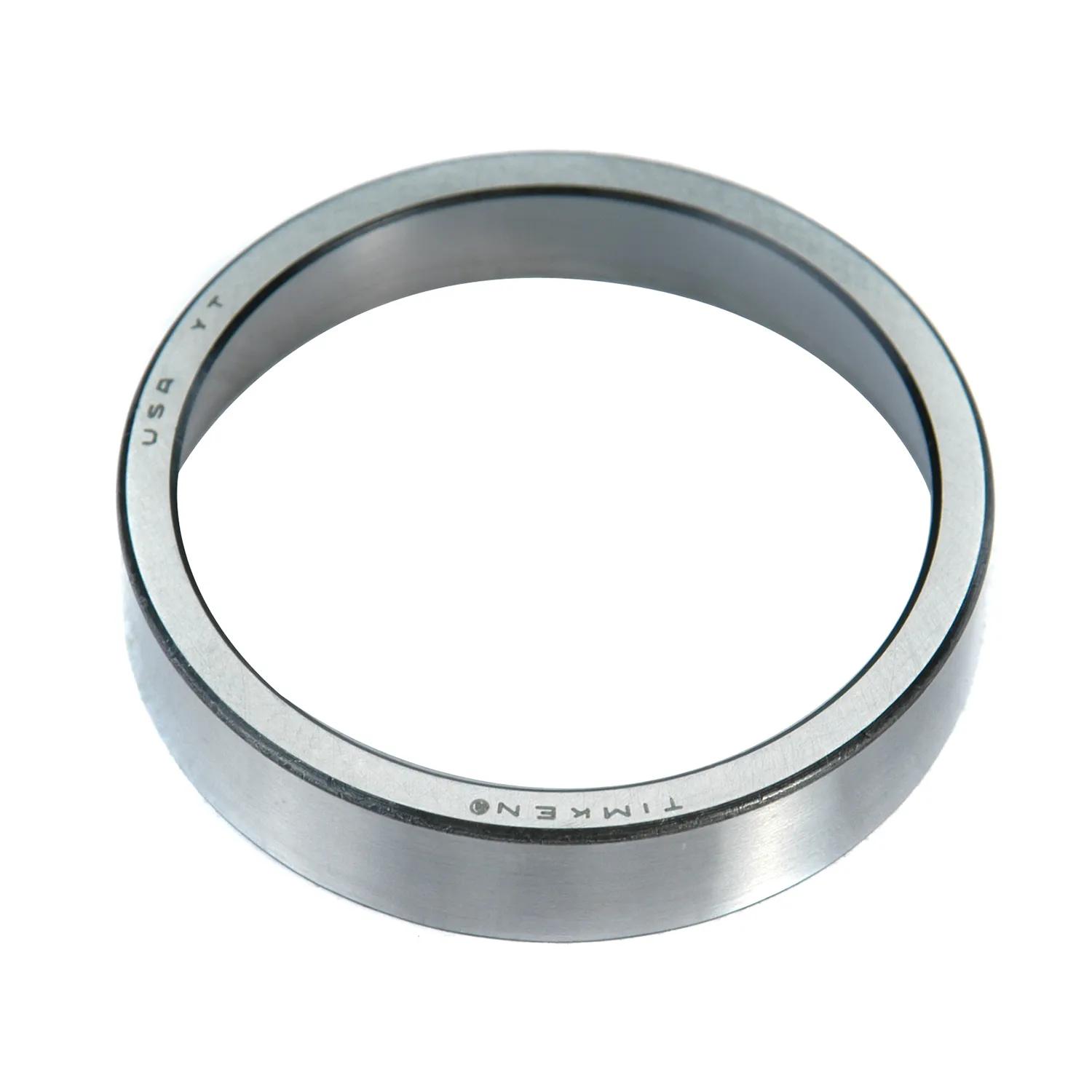

CUP
#TIM25521
Specifications
| Diamètre de la face arrière de la coupelle (Db) | 2.83 in (71.88 mm) |
| Cup Backface ""To Clear"" Radius (r) | 0.130 in (3.30 mm) |
| Cup Frontface Backing Diameter (Da) | 3.05 in (77.00 mm) |
| Cup Outer Diameter (D) | 3.2700 in (83.058 mm) |
| Cup Width (C) | 0.7500 in (19.050 mm) |
| Design Units | Imperial |
| Geometry Factor (Cg) | 0.0801 |
| ISO Factor (e) | 0.33 |
| ISO Factor (Y) | 1.79 |
| Series | 25500 |
