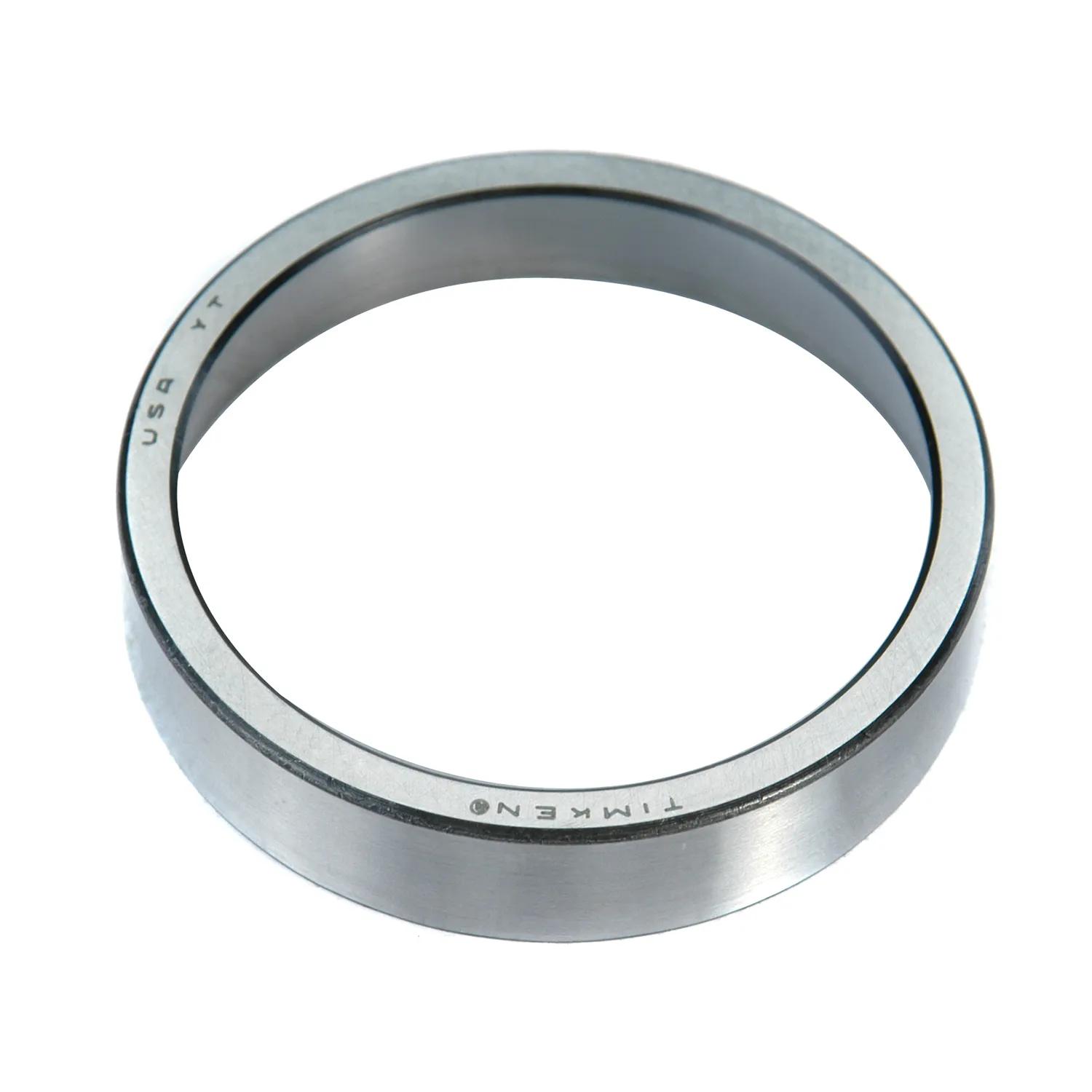

CUP
#TIM453A
Specifications
| Cup Backface Backing Diameter (Db) | 3.82 in (97.03 mm) |
| Cup Backface ""To Clear"" Radius (r) | 0.030 in (0.76 mm) |
| Cup Outer Diameter (D) | 4.25 in (107.95 mm) |
| Cup Frontface Backing Diameter (Da) | 3.96 in (100.10 mm) |
| Cup Width (C) | 0.8750 in (22.225 mm) |
| Design Units | Imperial |
| Geometry Factor (Cg) | 0.0946 |
| ISO Factor (e) | 0.34 |
| ISO Factor (Y) | 1.79 |
| Series | 455 |
