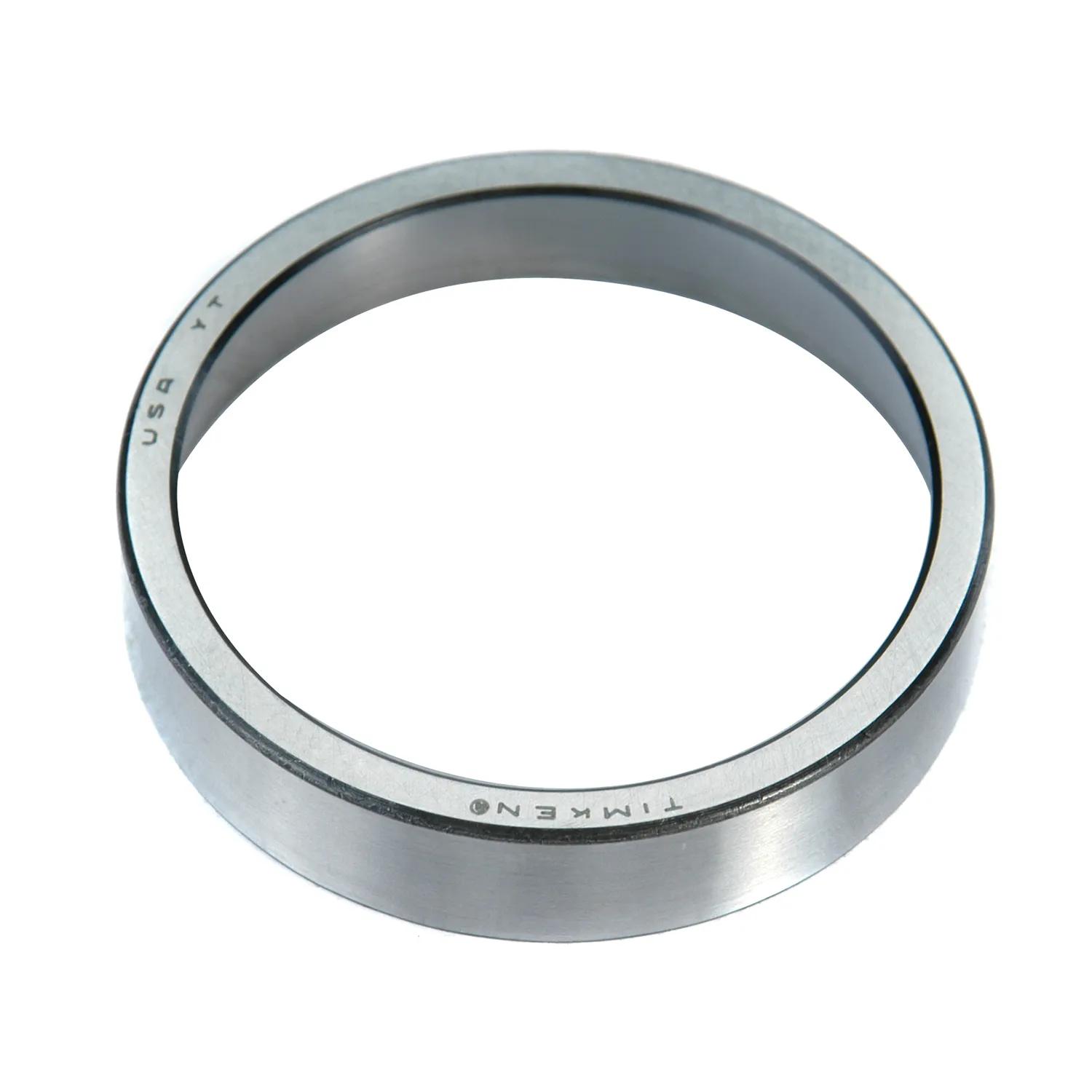

CUP
#TIM633
Specifications
| Bearing Weight | 2.7 Kg (5.9 lb) |
| Bearing Width (T) | 41.278 mm (1.6251 in) |
| Bore (d) | 57.150 mm (2.2500 in) |
| Cage-Cone Backface Clearance (Aa) | 3.8 mm (0.15 in) |
| Cage-Cone Frontface Clearance (Ab) | 2.5 mm (0.1 in) |
| Cage Type | Stamped Steel |
| Cone Backface "To Clear" Radius (R) | 3.560 mm (0.14 in) |
| Cone Backface Backing Diameter (db) | 74.93 mm (2.95 in) |
| Cone Frontface Backing Diameter (da) | 69.09 mm (2.72 in) |
| Cone Part Number | 635 |
| Cone Width (B) | 41.275 mm (1.6250 in) |
| Cup Backface Backing Diameter (Db) | 116.08 mm (4.57 in) |
| Cup Backface ""To Clear"" Radius (r) | 3.30 mm (0.130 in) |
| Cup Outer Diameter (D) | 130.175 mm (5.1250 in) |
| Cup Frontface Backing Diameter (Da) | 124.00 mm (4.89 in) |
| Cup Width (C) | 31.750 mm (1.2500 in) |
| Design Units | Imperial |
| Dynamic Radial Rating (1 million revolutions) (C1) | 52400 lbf (233000 N) |
| Dynamic Radial Rating (90 million revolutions) (C90) | 13600 lbf (60400 N) |
| Dynamic Thrust Rating (90 million revolutions) (Ca90) | 8420 lbf (37400 N) |
| Effective Center Location (a) | -11.2 mm (-0.44 in) |
| Factor (K) | 1.61 |
| Heat Generation Factor (Rib-Roller End) (G2) | 21 |
| Heat Generation Factor (Roller-Raceway) (G1 ) | 106.4 |
| Geometry Factor (Cg) | 0.0814 |
| ISO Factor (e) | 0.36 |
| ISO Factor (Y) | 1.66 |
| Series | 635 |
| Static Radial Rating (C0) | 67000 lbf (298000 N) |
