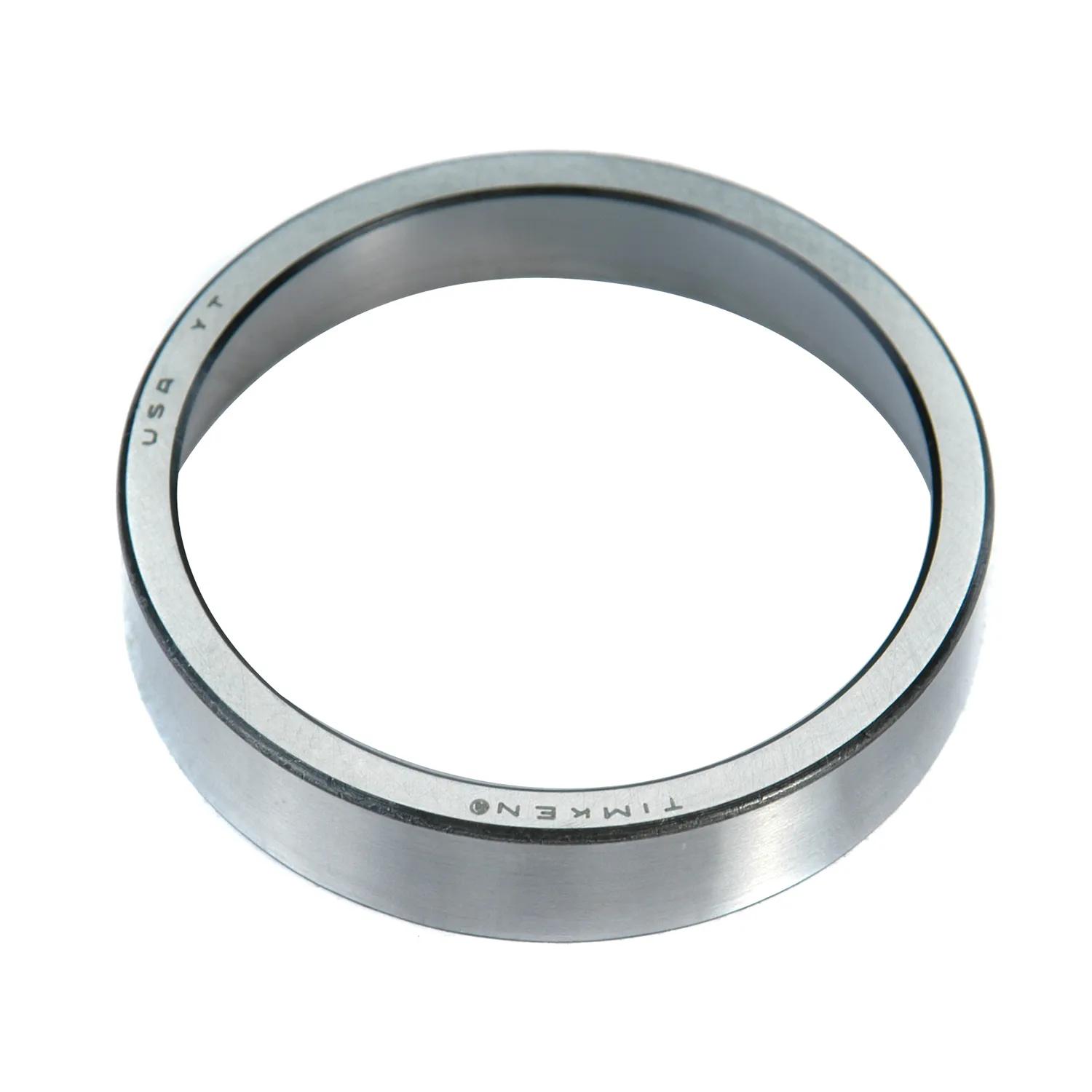

CUP
#TIM9220
Specifications
| Cup Backface Backing Diameter (Db) | 5.43 in (137.92 mm) |
| Cup Backface ""To Clear"" Radius (r) | 0.130 in (3.30 mm) |
| Cup Outer Diameter (D) | 6.3750 in (161.925 mm) |
| Cup Frontface Backing Diameter (Da) | 6.04 in (153.20 mm) |
| Cup Width (C) | 1.2500 in (31.750 mm) |
| Design Units | Imperial |
| Geometry Factor (Cg) | 0.0984 |
| ISO Factor (e) | 0.71 |
| ISO Factor (Y) | 0.85 |
| Series | 9200 |
