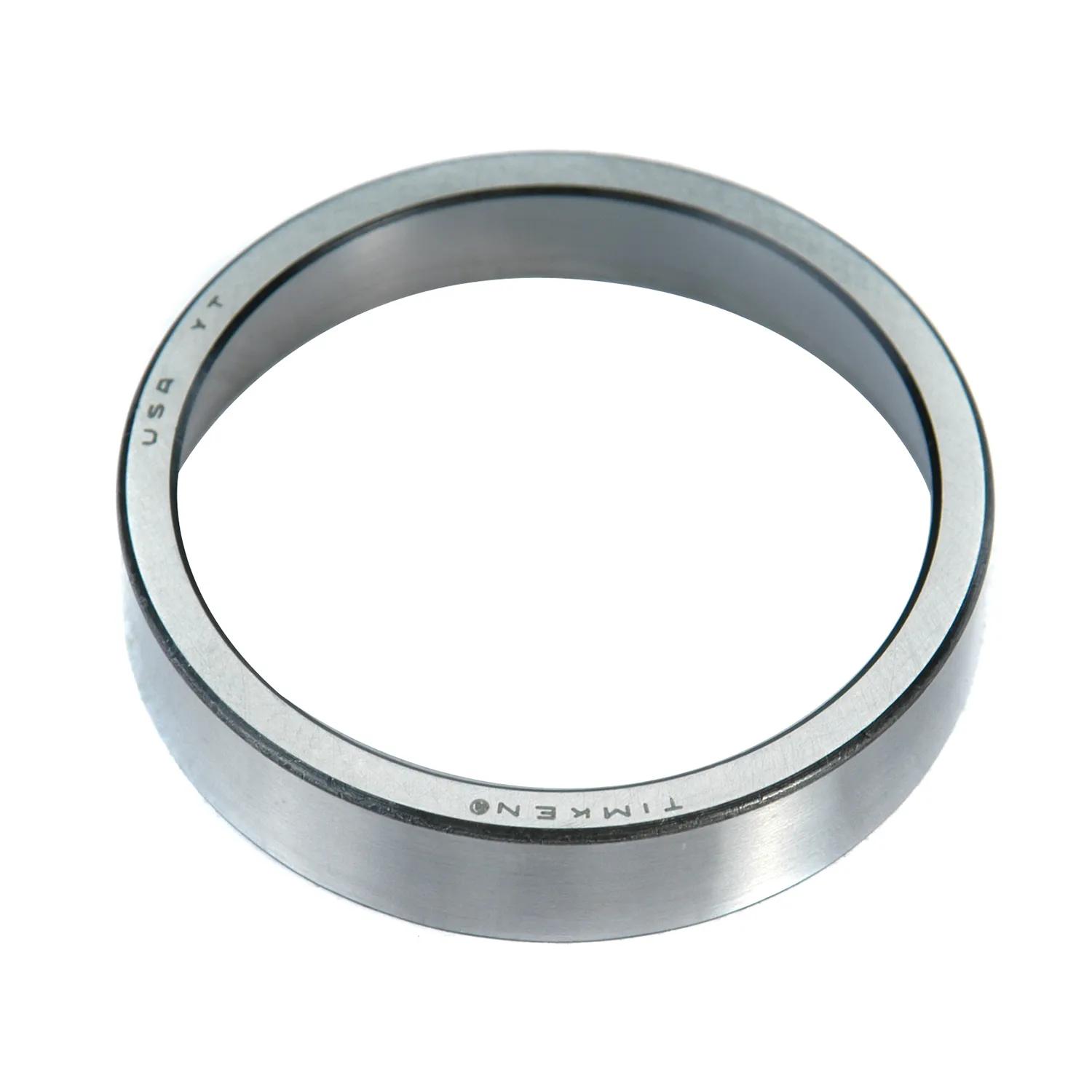

CUP
#TIMHM804810
Specifications
| Bearing Width (T) | 30.163 mm |
| Bearing Weight | 1.00 Kg (2.1 lb) |
| Bolt Size | 1/2 in (1.27 cm) |
| Bore (d) | 48.412 mm |
| Cage-Cone Backface Clearance (Aa) | 0.8 mm |
| Cage-Cone Frontface Clearance (Ab) | 3.6 mm |
| Cage Type | Stamped Steel |
| Cone Backface Backing Diameter (db) | 66.04 mm |
| Cone Frontface Backing Diameter (da) | 57.40 mm |
| Cone Backface "To Clear" Radius (R) | 3.560 mm |
| Cone Part Number | HM804849 |
| Cone Width (B) | 29.370 mm |
| Cup Backface Backing Diameter (Db) | 81.03 mm |
| Cup Backface ""To Clear"" Radius (r) | 3.30 mm |
| Cup Frontface Backing Diameter (Da) | 91.90 mm |
| Cup Outer Diameter (D) | 95.250 mm |
| Cup Width (C) | 23.020 mm |
| Design Units | Imperial |
| Dynamic Radial Rating (1 million revolutions) (C1) | 33100 lbf (147000 N) |
| Dynamic Radial Rating (90 million revolutions) (C90) | 8590 lbf (38200 N) |
| Dynamic Thrust Rating (90 million revolutions) (Ca90) | 8030 lbf (35700 N) |
| Effective Center Location (a) | -3.8 mm (-0.15 in) |
| Factor (K) | 1.07 |
| Heat Generation Factor (Rib-Roller End) (G2) | 13.8 |
| Heat Generation Factor (Roller-Raceway) (G1 ) | 44.8 |
| Geometry Factor (Cg) | 0.102 |
| ISO Factor (e) | 0.55 |
| ISO Factor (Y) | 1.1 |
| Series | HM804800 |
| Static Radial Rating (C0) | 35400 lbf (157000 N) |
