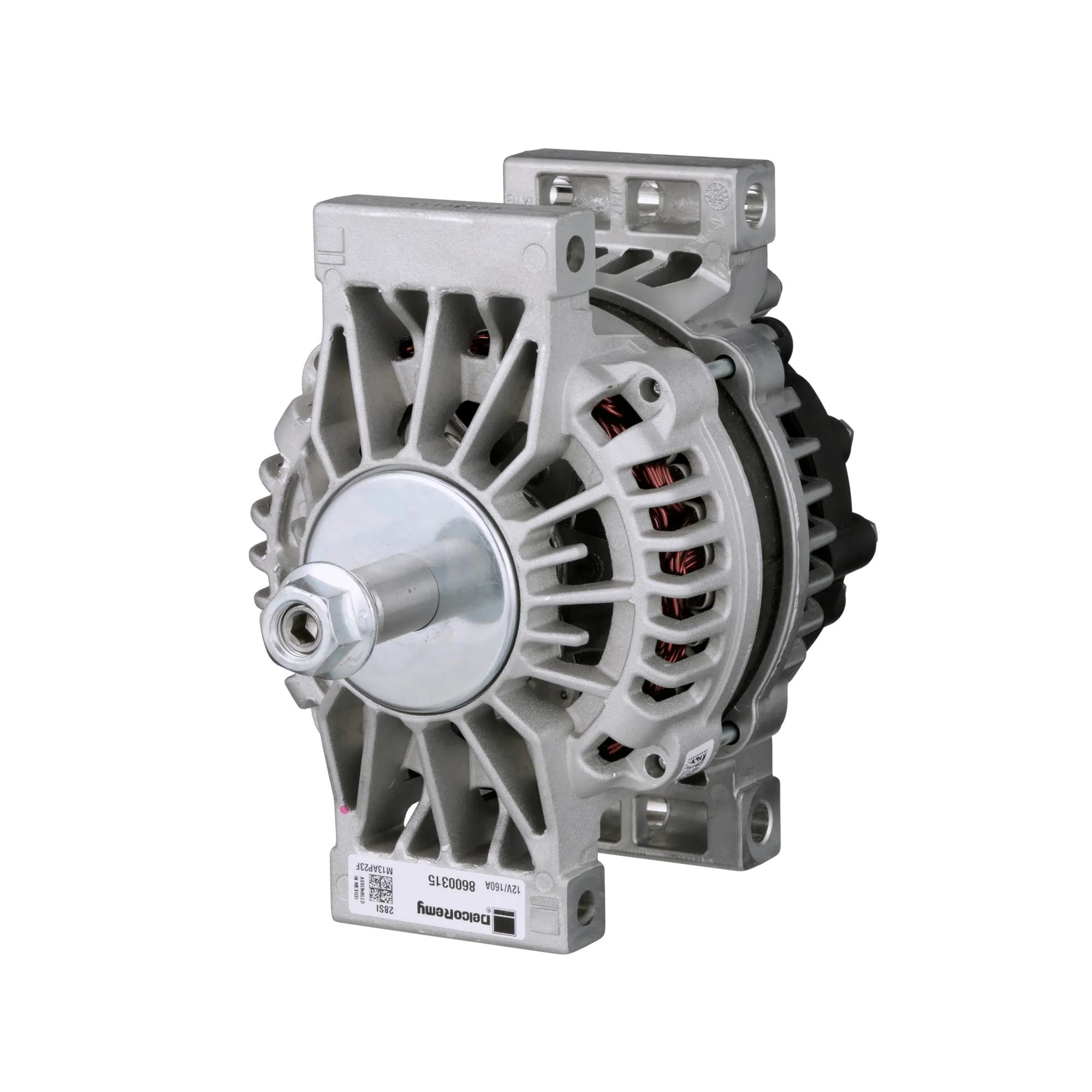

Delco Remy 28SI Heavy Duty Alternator, 12V, 160 Amp, Pad Mount, Clockwise Rotation
#DEC8600315
Product Overview
Alternator, Heavy Duty, Term Stud Regulator, 5/16 B+ Output Terminal, 160 A Current Rating, 10000 rpm Continuous, 12000 rpm Intermittent Maximum Speed, Model 28SI, Pad Mounting, Negative Polarity, Remote Sense Terminal, Clockwise Rotation Direction, 12 V System, 125 °C Temperature Rating
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Dual internal fan (DIF) design provides maximum cooling technology
- OE approved, assuring OE quality, reliability and performance for aftermarket replacements
- Superior output producing up to 200 A at road speed and 140 A at idle
- Equipped with remote sense which can reduce battery charge time by 50%; remote sense utilizes a second wire that reads the actual voltage at the battery, signaling the alternator to boost output to compensate for voltage drop, ensuring 14 V at the battery and a full state of charge between vehicle stops
- Warranty: school bus: 2 year/unlimited miles
Specifications
| Application | Medium & Heavy Duty Truck / School Bus |
| B+ Output Terminal | 5/16 in |
| Contents | (1) Alternator, Instruction Sheet |
| Model | 28SI |
| Polarity | Negative |
| Remote Sense Terminal | Yes |
| Type | Heavy Duty |
| Weight | 18.7 lb |
| Current Rating | 160 A |
| Maximum Speed | 10000 rpm Continuous, 12000 rpm Intermittent |
| Mounting Configuration | Pad Mount |
| Regulator Type | Term Stud |
| Rotation Direction | Clockwise |
| System Voltage | 12V |
| Temperature Rating | 125 °C |
| Product Category | Alternator |
Interchanges & Equivalent parts:
| AM1771 |
| D2710060160P |
| 90014723 |
| 90014723N |
| ALT1280 |
| AL9961LH |
