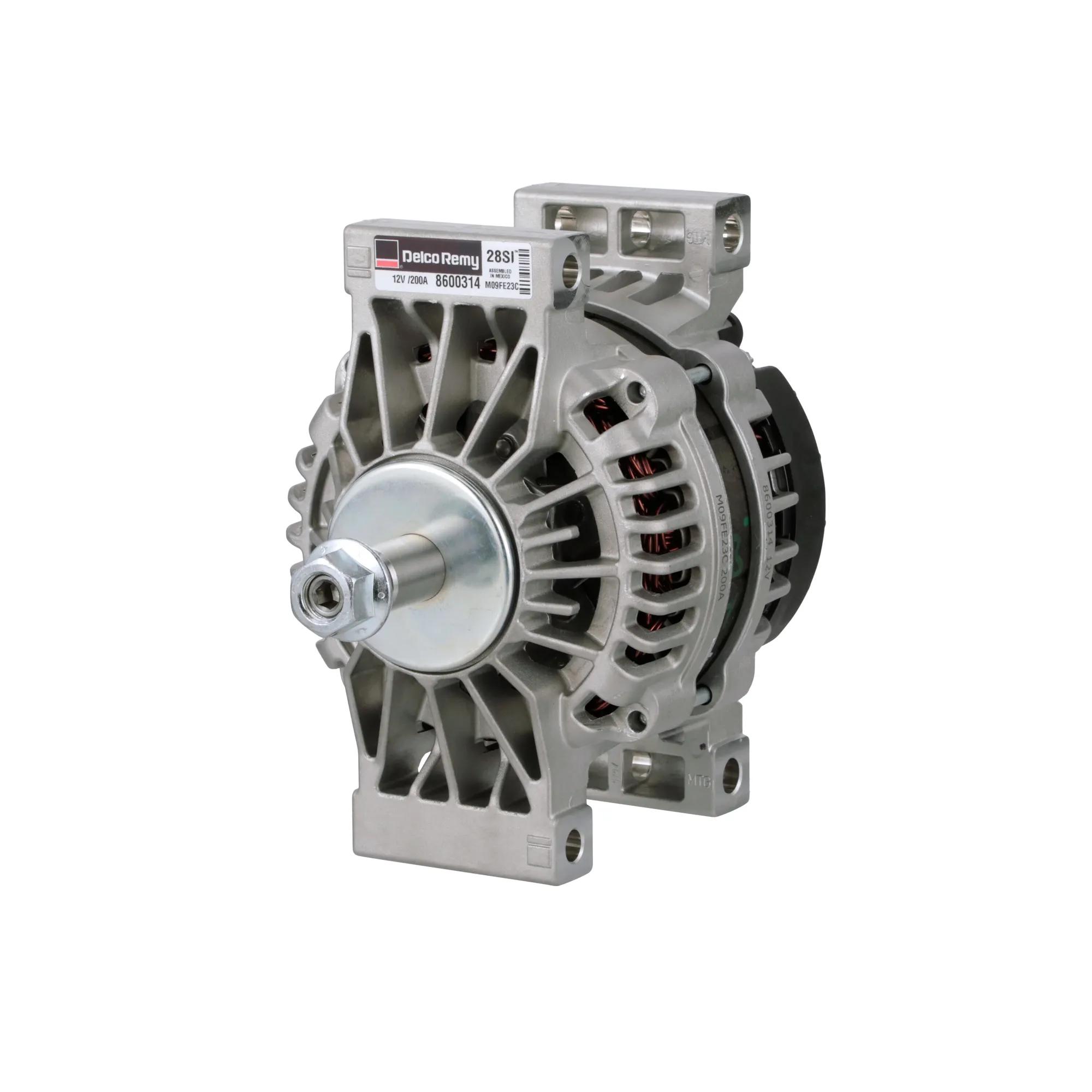

Delco Remy 28SI Heavy Duty Alternator, 12V, 200 Amp, Pad Mount, CW Rotation

#DEC8600314

Product Overview

Alternator, Heavy Duty, Term Stud Regulator, 5/16 B+ Output Terminal, 200 A Current Rating, 10000 rpm Continuous, 12000 rpm Intermittent Maximum Speed, Model 28SI, Pad Mounting, Negative Polarity, Remote Sense Terminal, Clockwise Rotation Direction, 12 V System, 125 °C Temperature Rating

Features & Benefits

Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.

Dual internal fan (DIF) design provides maximum cooling technology

OE approved, assuring OE quality, reliability and performance for aftermarket replacements

Superior output producing up to 200 A at road speed and 140 A at idle

Equipped with remote sense which can reduce battery charge time by 50%; remote sense utilizes a second wire that reads the actual voltage at the battery, signaling the alternator to boost output to compensate for voltage drop, ensuring 14 V at the battery for a full charge between stops

Warranty: school bus: 2 year/unlimited miles

Specifications

Application	Medium & Heavy Duty Truck / School Bus
B+ Output Terminal	5/16 in
Contents	(1) Alternator, Instruction Sheet
Dust Shield	No
Fan Type	Dual internal fan (DIF)
Ground Terminal	Negative
Manufacturer	Delco Remy
Model	28SI
New or Remanufactured	New
# of Grooves	Pulley Not Included
Polarity	Negative
Remote Sense Terminal	Yes
Terminal	#10, 10, # 10
Type	Heavy Duty
Weight	18.7 lb
Current Rating	200 A
Maximum Speed	10000 rpm Continuous, 12000 rpm Intermittent
Mounting Configuration	Pad
Regulator Type	Term Stud
Rotation Direction	Clockwise
System Voltage	12 V
Temperature Rating	125 °C
Product Category	Alternator
