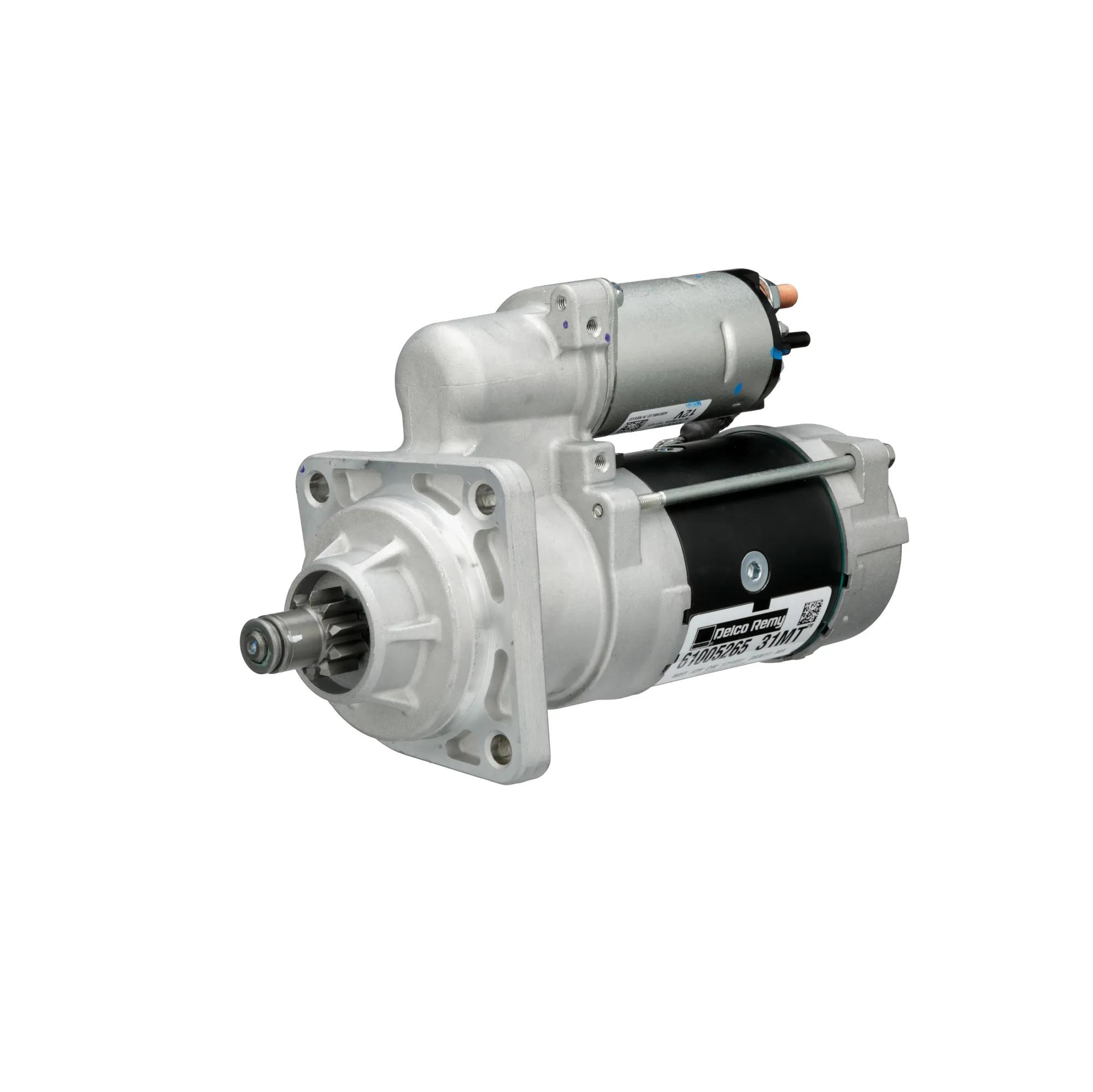

Delco Remy 31MT Heavy Duty Starter Motor, 12V, 10 Teeth, 4.1 kW Peak, CW Rotation
#DEC61005265
Product Overview
Starter Motor, Heavy Duty, SAE1, 31MT, Over Crank Protection: No, Pinion Pitch: 10/12, Pinion Teeth: 10, Polarity: Grounded, 4.1 kW Peak at 12 V, CW Rotation, Solenoid Position: 315 deg, 12 V, For Delivery Vehicles, Waste Disposal Vehicles, Emergency Vehicles, School Busses, Tow and Haulers, Recreational Vehicles, Shuttle Busses, Generation Sets and Compressor Units, 3.5 in W
Features & Benefits
- Developed from the 29MT design - of which there are more than 1.25 million OE units installed - the 31MT provides virtually full coverage for the class 6 and 7 commercial vehicle aftermarket
- This model features positive shift engagement; in the case of tooth abutment, the armature rotation in full power clears the abutment to allow pinion engagement, resulting in zero click-no-cranks (CNC). Well suited for high start/stop vehicle applications
- The 31MT is highly corrosion resistant due to improved brush holder plating and stainless steel springs
- A number of design changes to the hardware, including the commutator, O-rings, bearings, and lamination, have resulted in the 31MT being a very robust starter
Specifications
| Application | Véhicules de livraison, Véhicules de collecte des déchets, Véhicules d'urgence, Autobus scolaires, Dépanneuses et transporteurs, Véhicules récréatifs, Navettes, Groupes électrogènes et unités de compression |
| Contient | Démarreur, Feuille d'instructions |
| Model | 31MT |
| New or Remanufactured | Neuf |
| Rotation | Horaire |
| Type | Robuste |
| Volt | 12V |
| Width | 3,5 po |
| Fits Models | C500, L700, T600A, T800, W900, DM, DMM, F, MC, MH, MR, R, RB, RD, RL, RM, RW, RWL, RWS, U |
| Mounting Type | SAE1 |
| Over Crank Protection | Non |
| Pinion Pitch | Mod 2.5 |
| Pinion teeth | 10 |
| Polarity | Mise à la masse |
| Power Rating | 4.1 kW Peak at 12 V |
| Solenoid Position | 315° |
| Voltage Rating | 12 V |
| Product Category | Démarreur |
| Weight | 18,5 lb |
