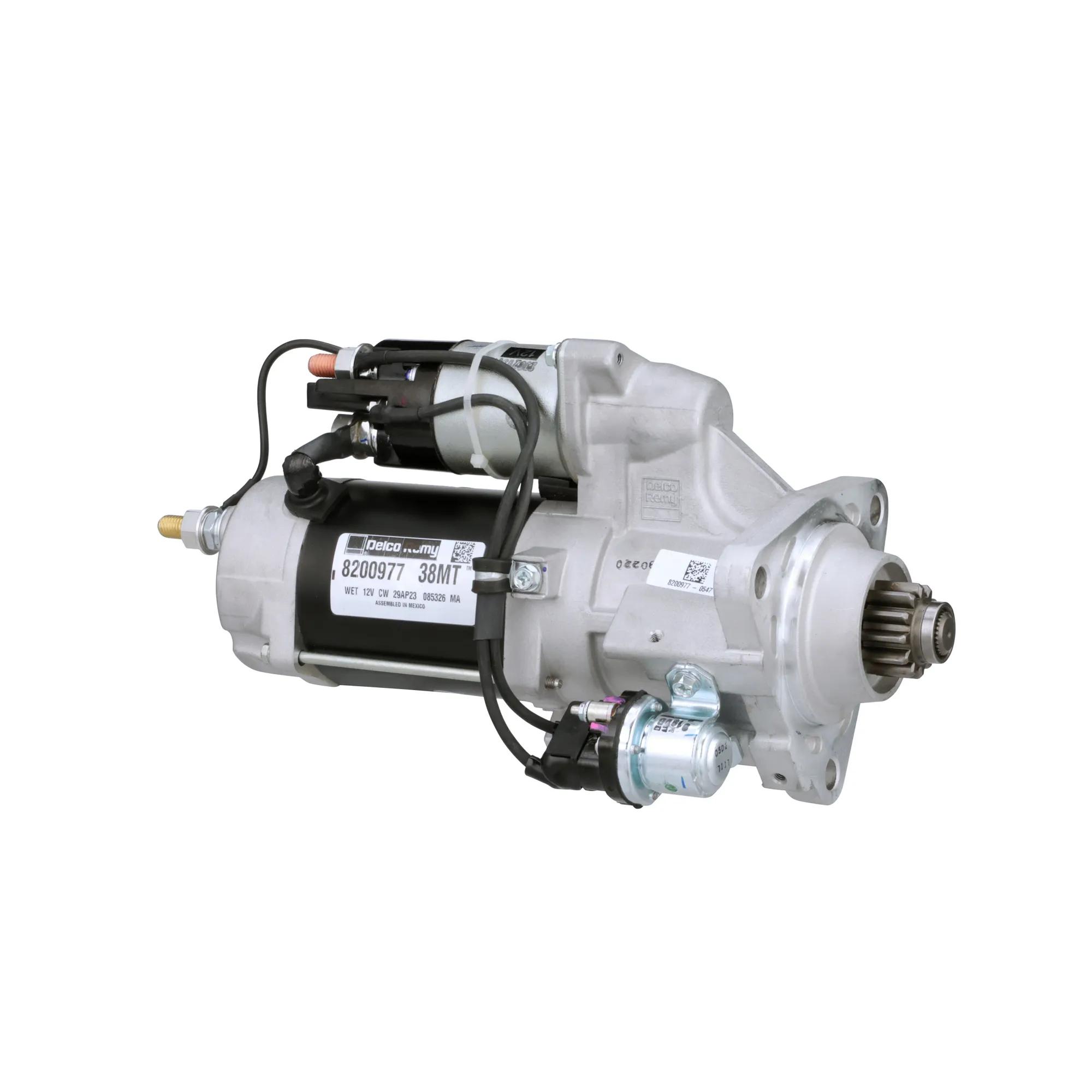

Delco Remy 38MT+ Heavy Duty Starter Motor, 12V, 4.3 kW Peak, CW Rotation

#DEC8200977

Product Overview

Starter Motor, Heavy Duty, SAE 3, 38MT+, Over Crank Protection: No, Pinion Pitch: MOD 3.0, Pinion Teeth: 12, Polarity: Grounded, 4.3 kW Peak at 12 V, CW Rotation, Solenoid Position: 68 deg, 12 V, 13.74 in L, 3.94 in W

Features & Benefits

Available with integrated over crank protection (IOCP), a built-in circuit breaker that protects the starter from thermal damage and automatically resets at a safe operating temperature, eliminating the need for a wiring harness

38MT+ features an integral magnetic switch (IMS) that reduces voltage drop and ensures the solenoid receives maximum available voltage in any starting condition

Electrical soft-start consistently and accurately engages the pinion with the ring gear, providing increased reliability

Cranks up to 4% faster than the competition

Specifications

Contents	Starter, Instruction Sheet
Length	13.74 in
Model	38MT+
New or Remanufactured	New
Rotation	CW
Type	Heavy Duty
Width	3.94 in
Fits Models	B7, C60 Kodiak, C6500 Kodiak, C70 Kodiak, C7500 Kodiak, T6500, T7500, CF8000, CFT8000, F800, LN8000, LNT8000F, LS8000F, LT8000F, LTS8000F, Century Class, FL50, FL60, FL70, FL80, C6500 Topkick, C7500 Topkick, 1452SC, 1652SC, 1652UPS, 1654, 2155, 2275, 2276 S, 2375 S, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3000FE, 3000RE, 3400, 3600, 3700, 3800, 3900FC, 4600, 4600LP, 4600UH, 4700, 4700LP, 4700LPX, 4800, 4900, 5000, 7100, 8100, 8200, 8300, 9100 SBA, 9200 SBA, 9300, 9400, 9600, 9700, 9800 SBA, 9900 SFA, C500, C540, C550, T300, T400, T450, T600A, T800, W900, CH, DM, DMM, MC, MH, MR, R, RB, RD, RM, RW, ACL, VN, WG, WX
Mounting Type	SAE 3
Over Crank Protection	Yes
Pinion Pitch	Mod 3
Polarity	Grounded
Power Rating	4.3 kW Peak at 12 V
Solenoid Position	68 deg
Voltage Rating	12 V
Product Category	Starter Motor
Weight	28.44 lb

Interchanges & Equivalent parts:

D611006
