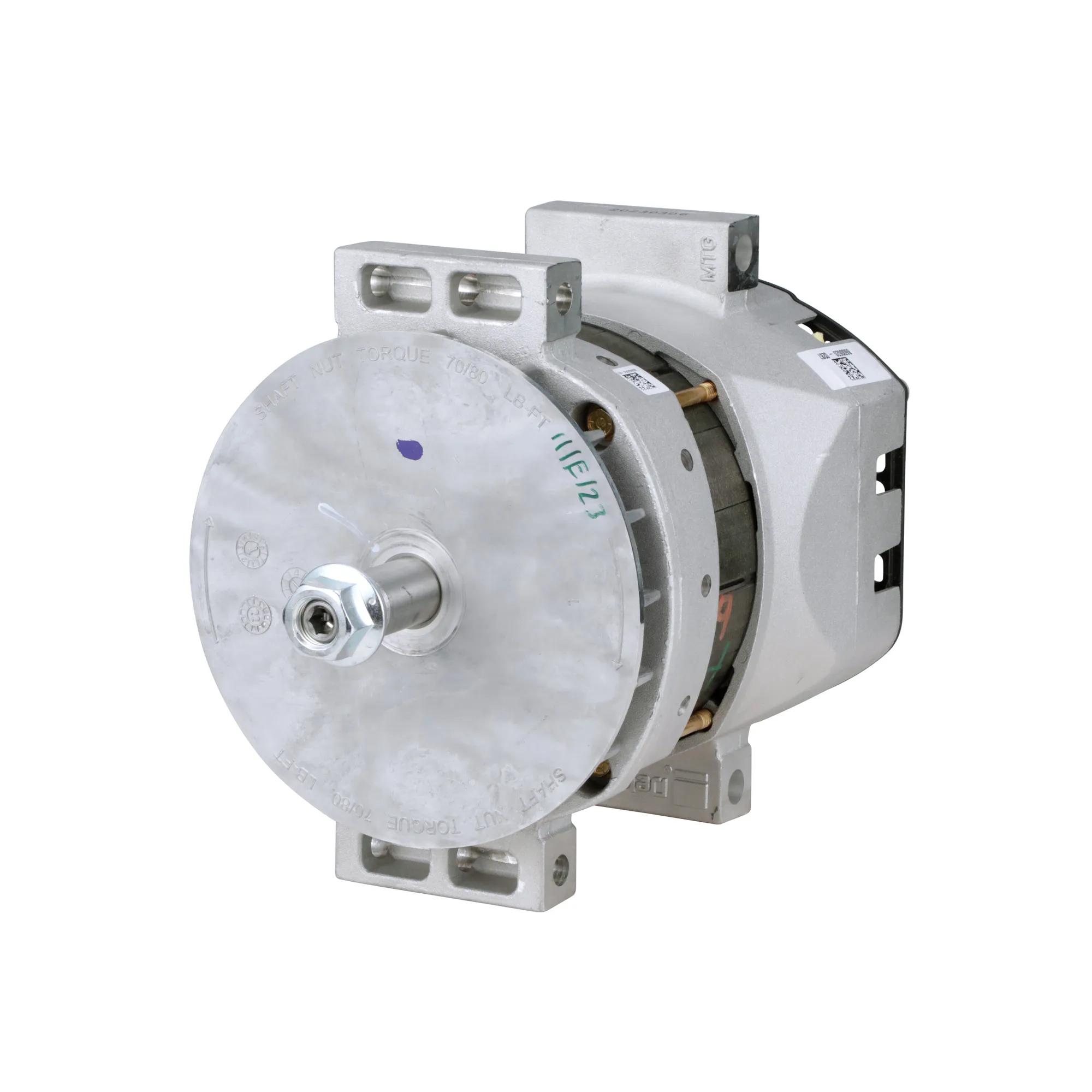

Delco Remy 40SI Heavy Duty Alternator, 12V, 320 Amp, Pad Mount, Brushless
#DEC8600628
Product Overview
The Delco Remy 40SI is a heavy duty, brushless alternator designed for reliable performance in demanding applications. Operating at 12 volts and delivering up to 320 amps, it features a pad mount configuration and clockwise rotation. This alternator includes an internal voltage regulator and remote sense terminal to optimize battery charging efficiency. It is OE approved, ensuring quality and durability for aftermarket replacements.Alternator, Heavy Duty, 5/16 B+ Output Terminal, 320 A Current Rating, 0.72 Efficiency, 8000 rpm Continuous, 10000 rpm Intermittent Maximum Speed, Model 40SI, Pad Mounting, Negative Polarity, Remote Sense Terminal, Clockwise Rotation Direction, 12 V System, 125 °C Temperature Rating
Features & Benefits
- Brushless advantage: fewer moving parts means less wear and longer life
- Equipped with remote sense which can reduce battery charge time by 50%. Remote sense utilizes a second wire that reads the actual voltage at the battery, signaling the alternator to boost output to compensate for voltage drop, ensuring 14 V at the battery for a full charge between stops
- OE approved, assuring OE quality and performance for aftermarket replacements
- Superior output producing up to 320 A at road speed and 190 A at idle
Specifications
| Application | Robuste |
| Borne de sortie B+ | 5/16 po |
| Position de l'horloge de l'alternateur | 4h30 |
| Contient | (1) Alternateur, feuille d'instructions |
| Pare-poussière | Non |
| Type de ventilateur | Externe |
| Terminal I | #10 |
| Fabricant | Delco Remy |
| Modèle | 40SI |
| Neuf ou remanufacturé | Neuf |
| Polarité | Négative |
| Remote Sense Terminal | Oui |
| R Terminal | 10 |
| Terminal | # 10 |
| Type | Robuste |
| Weight | 15.9 lb (7.21 kg) |
| Current Rating | 320 A |
| Efficiency | 0.72 |
| Maximum Speed | 8000 tr/min en continu, 10000 tr/min en intermittent |
| Mounting Configuration | Coussinet |
| Regulator Type | Interne |
| Rotation Direction | Clockwise |
| System Voltage | 12 V |
| Temperature Rating | 125 °C |
| Product Category | Alternateur |
Interchanges & Equivalent parts:
| 90047107 |
