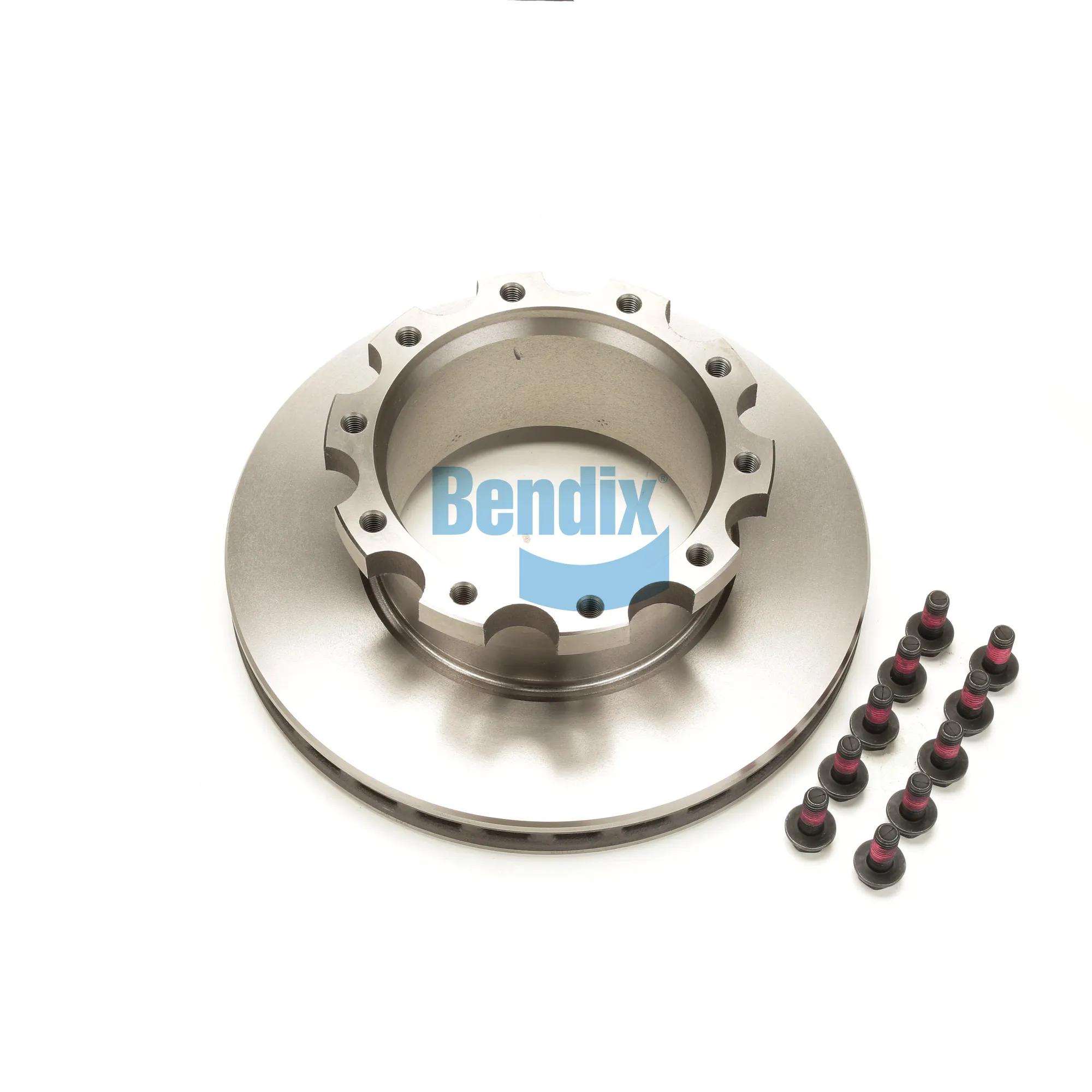

Bendix U-Shaped Vented Brake Rotor, 16-15/16 in Dia, 1-49/64 in Thickness, 10 Bolt Holes
#BENK038574
Specifications
| ABS | Yes |
| Bolt Circle Diameter | 9-13/16 in (24.93 cm) |
| Diameter | 16-15/16 in (43.03 cm) |
| Diameter Range | 16 to 16.99 in |
| Discard Thickness (in.) | 1-1/2 in (3.81 cm) |
| Finish | Directional |
| Flange Thickness | 29/32 in (2.31 cm) |
| Hardware Included | No |
| Height | 5-29/32 in (15.01 cm) |
| Hole Size | M16 x 2 |
| Length | 19-1/2 in (49.53 cm) |
| Material | Iron |
| Model | ADB22X/ADB225 |
| New Disc Thickness | 1-49/64 in (4.5 cm) |
| Number of Bolt Holes | 10 |
| Overall Depth | 5-29/32 in (15.01 cm) |
| Pilot Diameter | 8-21/32 in (22 cm) |
| Type | U-Shaped |
| Vented or Non-Vented | Vented |
| Weight | 86 lb (39 kg) |
Interchanges & Equivalent parts:
| M44D76617 |
| S-32193 |
| S-23223 |
| 802082 |
| 745-K038574 |
| 76AR617G |
| ADR1030 |
| ADR180406 |
| BNDK038574 |
| PL76617 |
| SSR920 |
| 153125802 |
| S32193 |
| BW K038574 |
