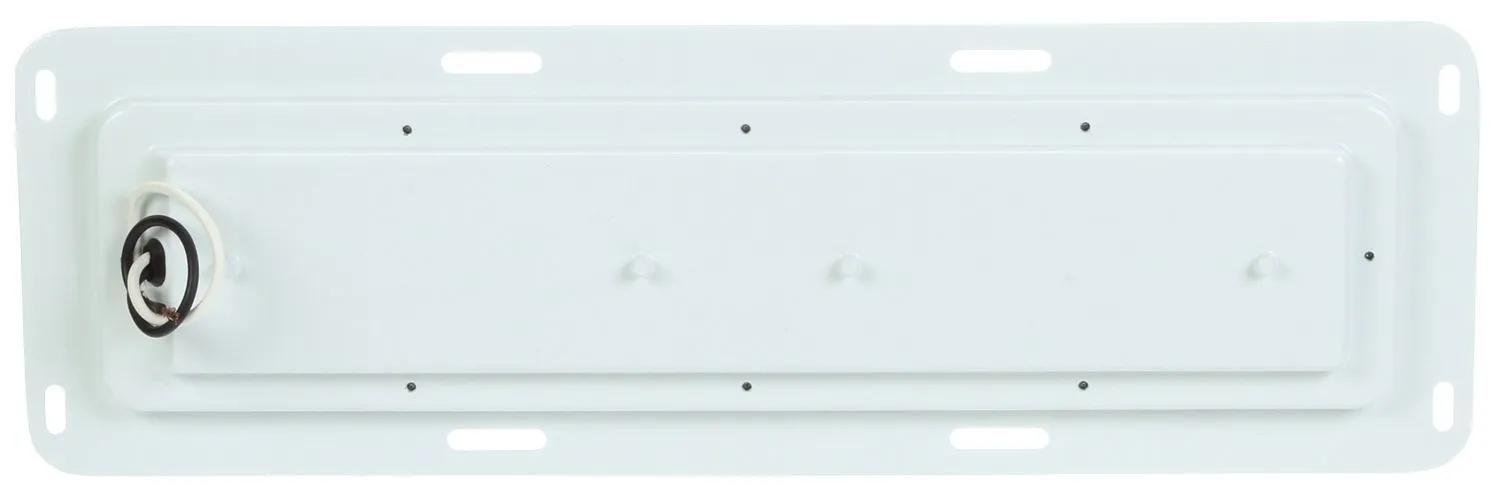

Dome Light, 80 Series, 10 Diode, LED, Clear Polycarbonate Lens, Rectangular, Hardwired, White
#TRL80251C
Product Overview
80 Series Dome Light featuring 10 white 1W LEDs, rectangular clear polycarbonate lens, die cast aluminum housing with white powder coat finish. Hardwired with stripped end, 12V operation, includes white 8 screw bracket mount. Lower profile than competitor lamps, mounts in 1'' deep pocket with nearly flush mount and only 1'' protrusion. Provides flicker-free, bright white light unaffected by cold temperatures. Retrofit or replacement is quick and easy.Dome Light, 80 Series, 10 Diode, Hardwired, LED, 8 Screw Bracket, Polycarbonate, Clear, 1.08 in H, 5.75 in L, 2 Wires, Rectangular, 12 V, Warranty: Limited Lifetime, 18.19 in W
Features & Benefits
- US Patent #7244058
- Die Cast Aluminum Housing
- White Powder Coat Finish
- Polycarbonate Lens
- 10 White 1W LED's
- Lower profile than competitor lamps (will mount in 1'' deep pocket)
- Nearly flush mount, only 1'' protrusion
- High Impact Polycarbonate Lens. Metal Housing Is White Epoxy Powder Coated.
- Not affected by cold temperatures
- LED's provide whiter, brighter light
- Retrofit or replacement is quick and easy
- Flicker-free lighting in all temperatures
Specifications
| Amps | 2 amp |
| Color | White |
| Common Size | 2 in |
| Connection Type | Hardwired |
| Contents | Lamp |
| Depth | 1-5/64 in |
| Dimension | 18-3/16 in x 5-3/4 in x 1-5/64 in |
| Finish | White Powder Coat |
| Height | 1.08 in |
| Housing Color | White |
| Kit (Y/N) | No |
| Lamp Type | LED |
| LED | Yes |
| Length | 5-3/4 in |
| Lens Color | Clear |
| Lens Material | Polycarbonate |
| Material | Aluminum |
| Mounting Type | 8 Screw Bracket |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Quantity | 1 |
| Series | 80 Series |
| Shape | Rectangular |
| Standards | US Patent #7244058 |
| Style | LED Interior Lamp |
| Switch | No |
| Technology | LED |
| Type | 80 Series, 10 Diode |
| UPC | 735111143239 |
| Volt | 12V |
| Voltage Rating | 12 V |
| Warranty | Limited Lifetime |
| Weight | 2.31 lb (1.05 kg) |
| Width | 18-3/16 in |
| Wire Gauge | 14 ga |
| Current Rating | 2 amp |
| Lumens | 800 lm |
| Product Category | Dome Light |
Interchanges & Equivalent parts:
| 602216 |
| TRU80251C |
| 60-2201 |
| 60-2211 |
| 60-2251 |
| 60-6651 |
| 81935 |
| 8413-80251C |
| LIT80251C |
| TL 80251C |
| TL 80251C |
| TL80251C |
| TLD80251C |
| 61881GR0 |
| 80251CTLT |
| GRT61261 |
| GRT61611 |
| GRT61881 |
| M360 |
| TKL80251C |
| 80251C3 |
