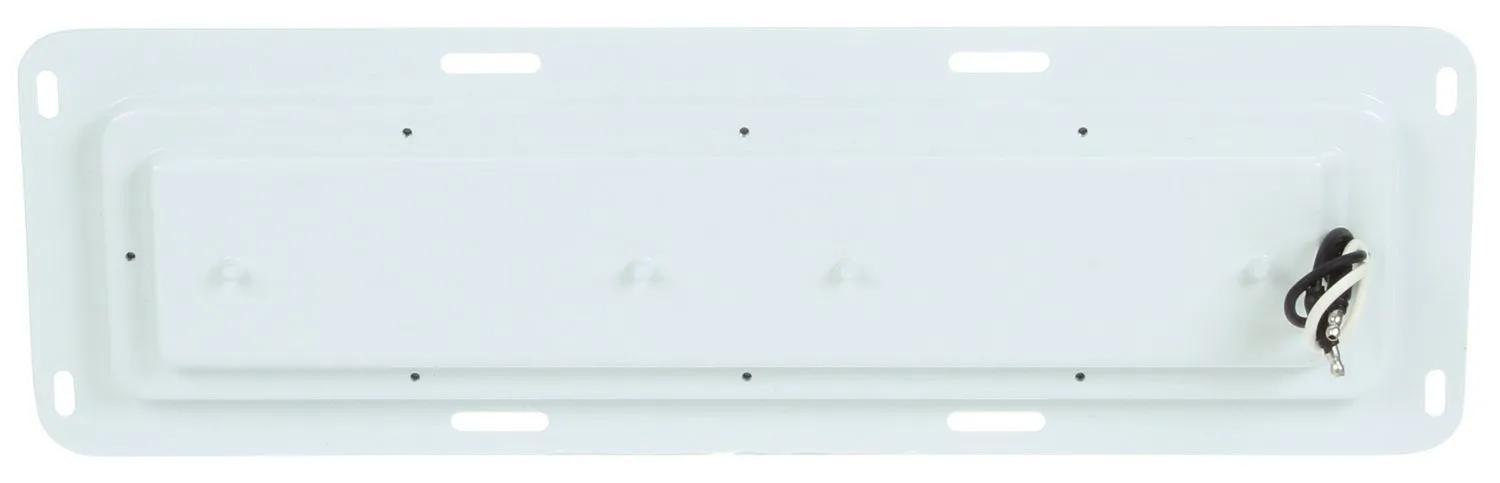

Dome Light, 80 Series, 10 Diode, LED, Clear Polycarbonate, Rectangular, Hardwired, White
Product Overview
80 Series LED dome light with 10 diodes, rectangular clear polycarbonate lens, white 8-screw bracket mount, hardwired with .180 bullet connector, 12V. Features nearly flush mount design with only 1 inch protrusion for more vehicle space. Provides flicker-free, whiter, brighter light rated at 1,000 lumens, ideal for refrigerated or cold weather vehicles. Solid-state LED design resists shock and vibration. LEDs fully encapsulated in epoxy to prevent moisture and corrosive damage. Operational temperature range -40 to 122°F. Quick retrofit or replacement with standard 16x4 cut-out.Dome Light, 80 Series, 10 Diode, Hardwired, LED, 8 Screw Bracket, Polycarbonate, Clear, 1.08 in H, 5.75 in L, 2 Wires, Rectangular, 12 V, Warranty: 3 Years, 18.19 in W
Features & Benefits
- Robust LED Dome Lamp withMotion Sensor located in center of lamp to power lamp on
- Motion sensor determined by changes in heat and stays on through 5 minutes of inactivity
- Recognizes movement up to 10 feet away from lamp surface
- Nearly flush mount design with only 1 inch protrusion to allow more room in vehicle body
- Not affected by cold temperatures, providing flicker-free lighting with faster start-up time
- LEDs provide whiter, brighter light rated at 1,000 lumens for improved visibility
- Solid-state LED design impervious to damage from shock and vibration
- Retrofit or replacement is quick and easy with standard 16x4 cut-out
- LEDs fully encapsulated in epoxy to prevent damage from moisture and corrosives
- Operational temperature range -40 to 122°F
Specifications
| Color | White |
| Common Size | 3 in |
| Connection Type | Hardwired |
| Finish | White Powder Coated |
| Height | 1.08 in |
| Housing Color | White |
| Kit (Y/N) | No |
| Lamp Type | LED |
| LED | Yes |
| Length | 5.75 in |
| Lens Color | Clear |
| Lens Height | 3-45/64 in |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mounting Type | 8 Screw Bracket |
| Mount Type | 8 Screw Bracket |
| Number Of Wires | 2 |
| Operating Temperature | -40 to 122°F |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | .180 Bullet, Standard |
| Product Type | Dome Light |
| Quantity | 1 |
| Series | 80 Series |
| Shape | Rectangular |
| Switch | No |
| Technology | LED |
| Type | 80 Series, 10 Diode |
| UPC | 735111179009 |
| VMRS Code | 034-004-089 |
| Voltage Rating | 12 V |
| Warranty | 3 Years |
| Weight | 2.19 lb (0.99 kg) |
| Width | 18.19 in |
| Wire Gauge | 14 ga |
| Current Rating | 2 amp |
| Lumens | 1,000 |
| Product Category | Dome Light |
Interchanges & Equivalent parts:
| 61881 |
| 602201 |
| 602211 |
| 602215 |
| 602216 |
| 602251 |
| 61261 |
| 61611 |
| 80255CTLT |
| RC DL28ML |
| TLD80255C |
| 1000-DL28ML |
| DL28ML |
| GRT61F61 |
| M365 |
| TKL80255C |
| 80255C |
