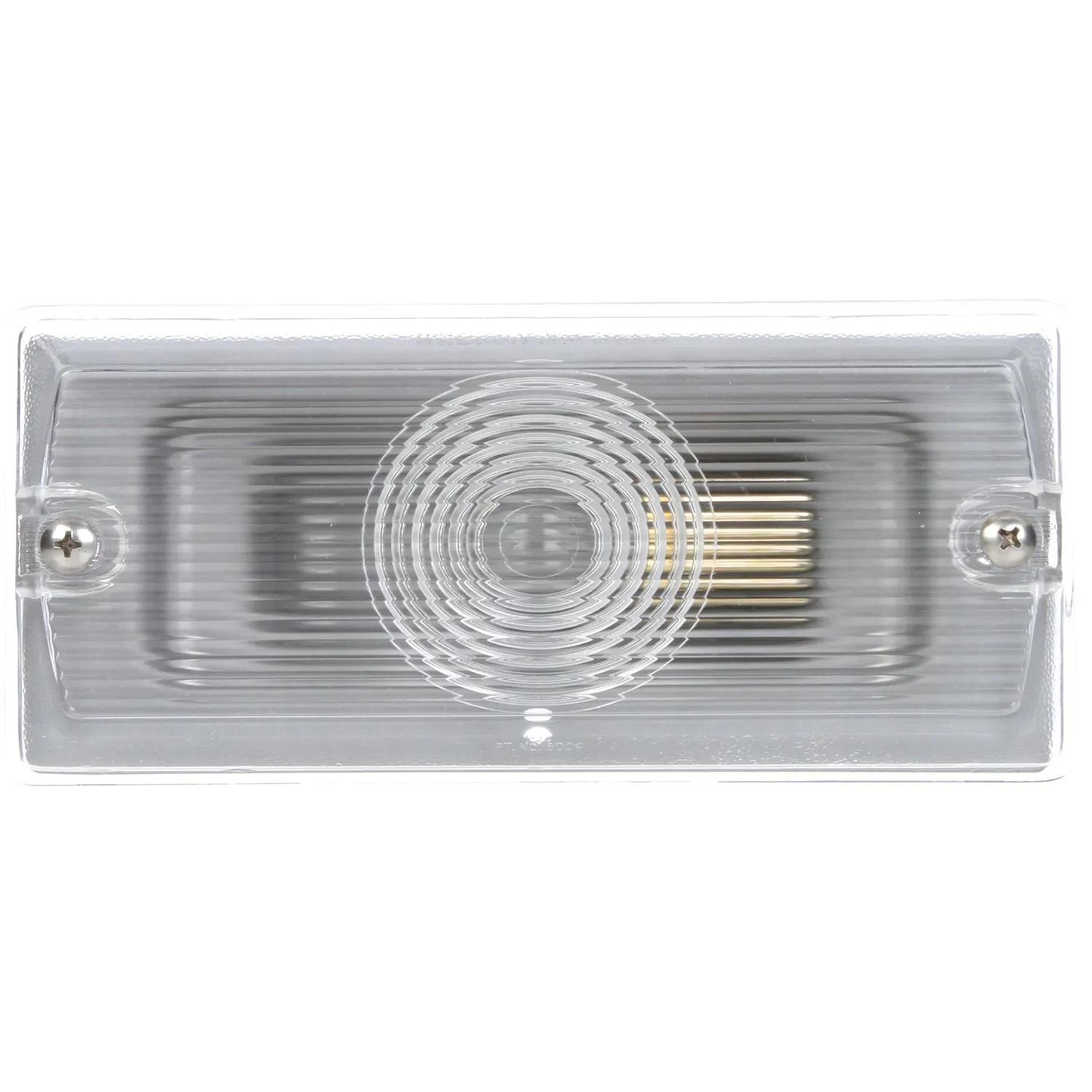

Dome Light, Clear, Rectangular
#TRL81350
Product Overview
Bulb Replaceable, Incandescent, 1 Bulb, Rectangular Clear, Dome Light, 2 Screw Bracket Mount, Hardwired, Stripped End, 12V
Features & Benefits
- Flush mounts on two screws at 6.0" centers
- Requires a 2" x 5 1/4" hole for installation
- Grounds through mounting screws for easy setup
- Functions as an interior dome lamp for versatility
- Can be used as a compartment lamp for added utility
- Also serves as a utility lamp for various applications
Specifications
| Amps | 1.04 amp |
| Bulb Type | Incandescent |
| Color | White |
| Common Size | 3 in (7.62 cm) |
| Depth | 1-7/8 in (4.78 cm) |
| Diameter | 6-13/16 in (17.3 cm) |
| Height | 3 in (7.62 cm) |
| Kit (Y/N) | No |
| Length | 3 in (7.62 cm) |
| Lens Height | 6-29/32 in (17.55 cm) |
| Lens Material | Acrylic |
| Lens Width | 3-1/8 in (7.95 cm) |
| Material | Polycarbonate |
| Mount Type | Bracket Mount |
| Number Of Wires | 1 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Dome Light |
| Shape | Rectangular |
| Switch | No |
| Technology | Incandescent |
| VMRS Code | 034-004-089 |
| Volt | 12V |
| Weight | 0.2 lb (0.09 kg) |
| Width | 6-13/16 in (17.3 cm) |
| Wire Gauge | 16 GA |
Interchanges & Equivalent parts:
| 24079600 |
| 81350 |
| 8005100030 |
| HT50603164 |
| TL81350 |
| TLD81350 |
| TRU81350 |
| 596301 |
| 8866W |
| 614915 |
| 5960301 |
| 61541 |
