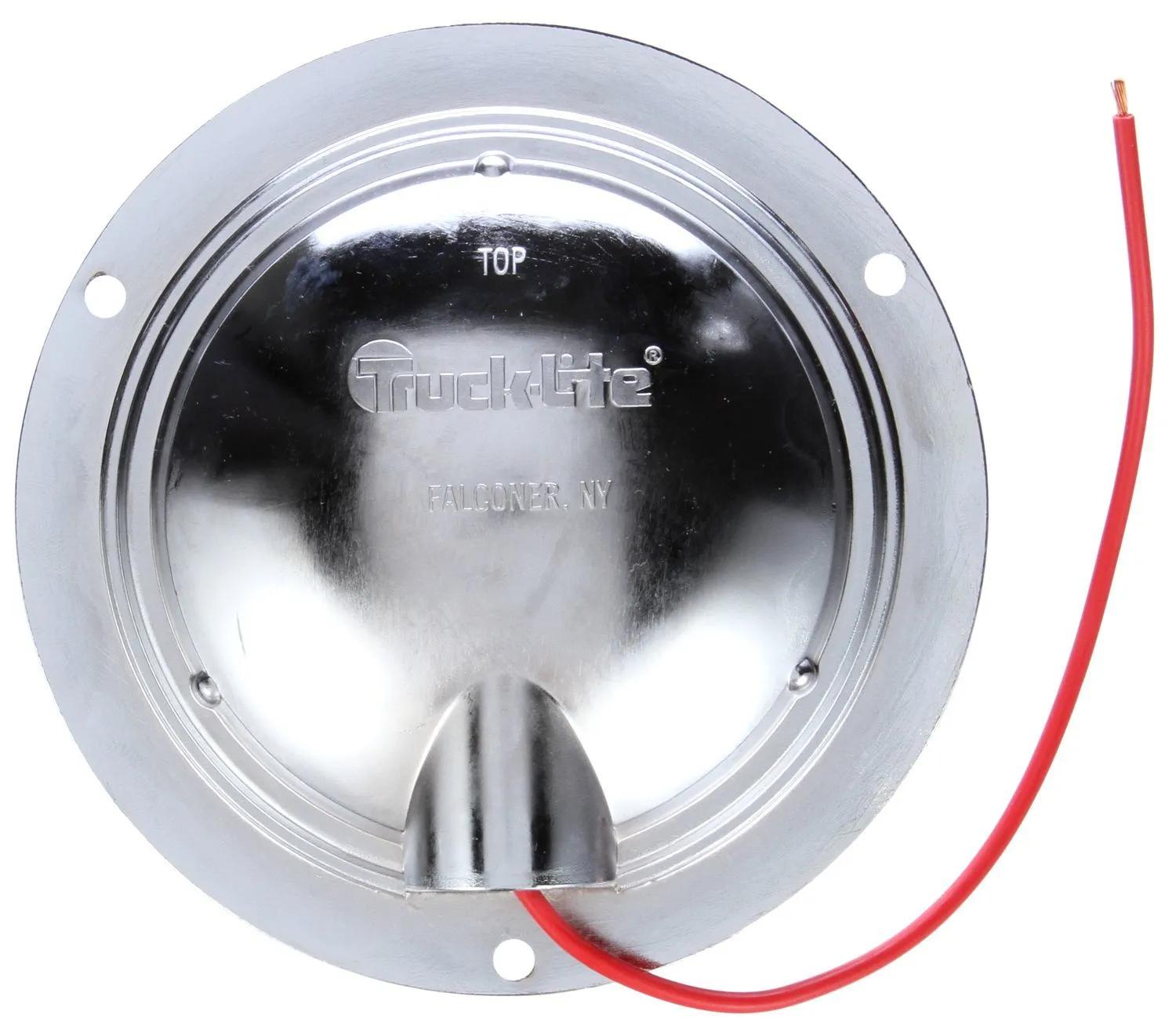

Dome Light, Clear, Round
#TRL80423C
Product Overview
80 Series, Hook-Up, Incandescent, 1 Bulb, Round Clear, Dome Light, Chrome Flange Mount, Hardwired, Stripped End, 12V
Specifications
| Amps | 2.25 amp |
| Application | Auxiliary |
| Color | Clear |
| Common Size | 4 in (10.16 cm) |
| Contents | Lamp |
| Depth | 1-5/16 in (3.33 cm) |
| Dimensions | 5-13/64 in (13.21 cm) x 1-19/64 in (3.3 cm) |
| Height | 5-9/32 in (13.41 cm) |
| Housing Color | Chrome |
| Kit (Y/N) | No |
| Lens Height | 4-1/8 in (10.49 cm) |
| Lens Material | Acrylic |
| Lens Width | 4-1/8 in (10.49 cm) |
| Light Intensity | 32 cp |
| Material | Zinc |
| Mount Type | Flange Mount |
| Number Of Wires | 1 |
| Packaging | Polybag |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Product Type | Dome Light |
| Shape | Round |
| Switch | No |
| Technology | Incandescent |
| VMRS Code | 034-004-100 |
| Volt | 12 V |
| Weight | 0.77 lb (0.35 kg) |
| Width | 5-9/32 in (13.41 cm) |
| Wire Gauge | 16 GA |
Interchanges & Equivalent parts:
000213V, 41315008, 60311, 562C160010, 105796, 46002627, 841380423C, 7G7837, 80423C, TL80423C, TLD80423C, TRU80423C, 7G7837, 80423C, 562C160010, 46002627, 3613W, TRU80423C, 81215, 83950, 8413-80423C, LIT80423C, TL 80423C, TL 80423C, TL80423C, TLD80423C, TLT 80423C, TKL80423C, 112001, 898948400, B80423, 80423C, TRU80423C, 562C160010, 46002627, 41315008, TL80423C, TLD80423C, 105796, 112001, 000213V, B80423, 898948400, 841380423C, 80423C, 7G7837, 46002627, 562C160010, 7G7837, 60311, TRU80423C, 3613W, 8413-80423C, 83950, TLD80423C, TL80423C, TL 80423C, 81215, TL 80423C, TLT 80423C, LIT80423C, TKL80423C, FOR14180
