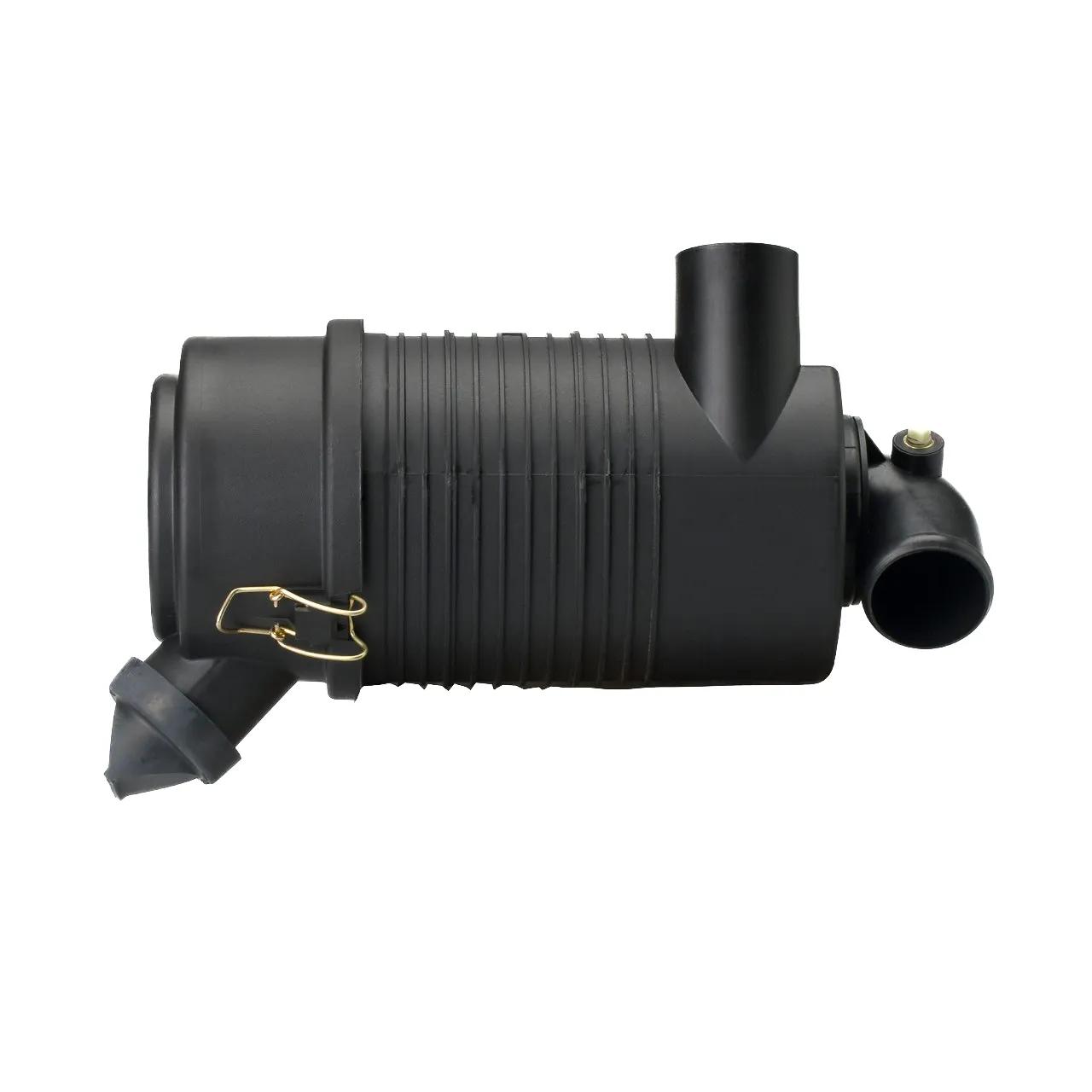

Donaldson Air Cleaner Radialseal, 12.99 in Length, 5.75 in Body Diameter, 2 in Inlet & Outlet Diameter, 81-106 CFM Airflow
#DONG057514
Product Overview
Donaldson FPG RadialSeal Air Cleaner featuring advanced RadialSeal sealing technology for reliable, self-centering, self-aligning, and self-sealing performance. Durable, corrosion-free plastic housing designed for superior performance in on- and off-road applications.Air Cleaner, Radialseal, 81 CFM (LR), 95 CFM (MR), 106 CFM (HR), 5.75 in Body Dia, 2 in Inlet Dia, 2 in Outlet Dia, Pressure Drop: 5.98 in (LR), 7.99 in (MR), 10 in (HR), FPG, 12.99 in L
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 5.75 in (146.1 mm) |
| Diameter Range | 2 to 2.99 in |
| Family | FPG |
| Inlet Diameter | 2 in (50.8 mm) |
| Inner Diameter | 2 in (50.8 mm) |
| Length | 12.99 in (330 mm) |
| Outer Diameter | 2 in (50.8 mm) |
| Outlet Diameter | 2 in (50.8 mm) |
| Overall Length | 12.99 in (330 mm) |
| Rated Flow High Range | 106 cfm (3.01 m³/min) |
| Rated Flow Low Range | 82 cfm (2.3 m³/min) |
| Rated Flow Mid Range | 95.35 cfm (2.7 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Series | FPG |
| Length Range | 8 to 8.99 in |
| Style | Radialseal |
| Airflow Rate | 81 CFM (LR), 95 CFM (MR), 106 CFM (HR) |
| Body Diameter | 5.75 in (146.1 mm) |
| Filter Type | Radialseal |
| Product Category | Air Cleaner |
Interchanges & Equivalent parts:
| AH19085 |
| 921142 |
| T839309C |
| 300042601 |
| 300042603 |
| 300042603Z |
| NX14210057 |
| 523291601 |
| 64562 |
| 782763 |
| 175783 |
| OE0135 |
| 2198147 |
| 3001965 |
| 20810 |
| 220000 |
| 15215 |
| 15090403 |
| 202707 |
| 1004824 |
| 1065277 |
| 287130001 |
| 6050137 |
| 52968912500 |
| DN G057514 |
| 020810 |
| 11802327 |
| 364200-021 |
| AF2279 |
| AF2342 |
| AH19085FLG |
| DONG057514 |
| M20358 |
| DN G057514 |
