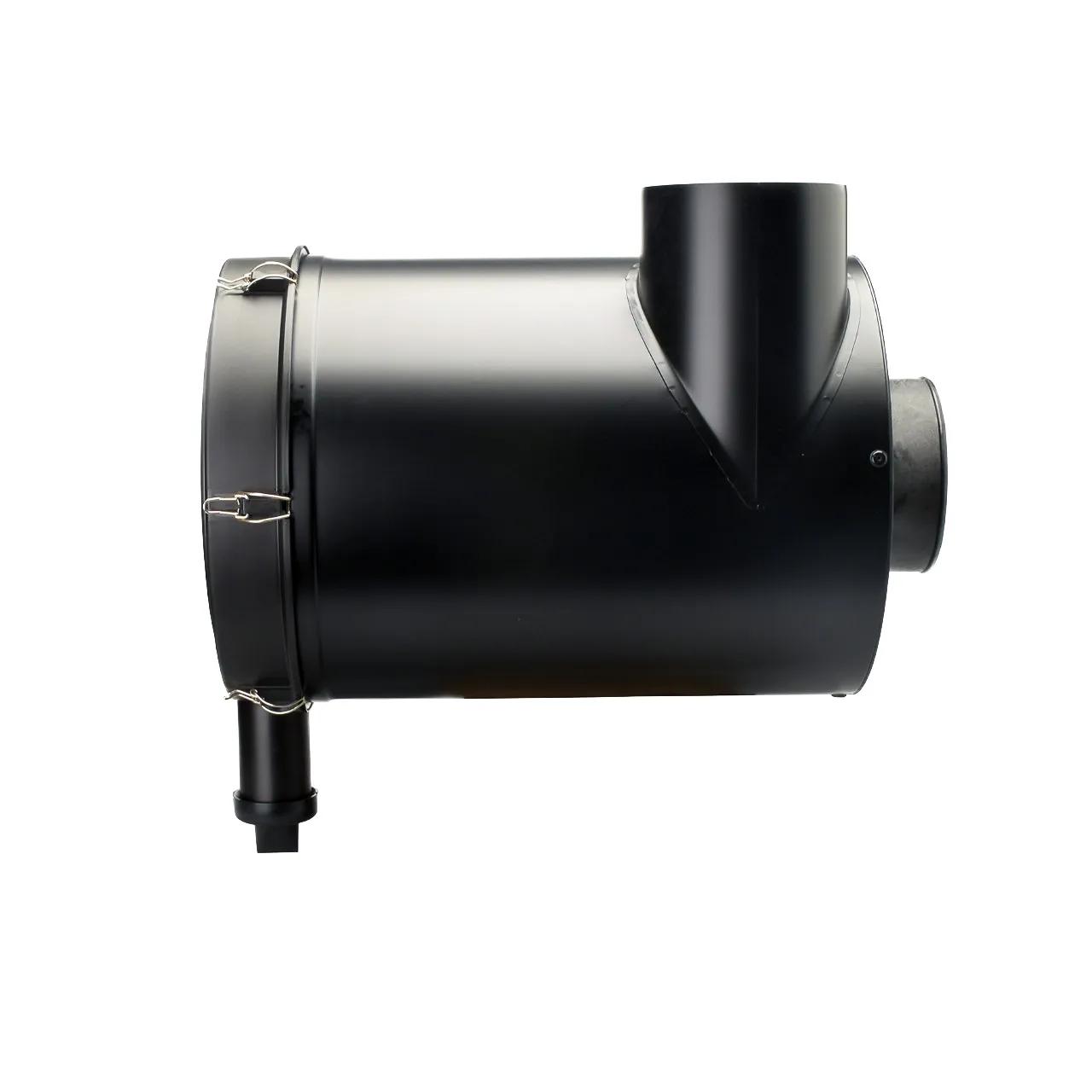

Donaldson Air Cleaner Radialseal, 22.17 in Length, 17.99 in Body Diameter, 8 in Outer Diameter, 1042-1392 CFM Airflow
#DONG180031
Product Overview
Air Cleaner, Radialseal, 1042 CFM (LR), 1229 CFM (MR), 1391 CFM (HR), 17.99 in Body Dia, 7.99 in Inlet Dia, 7.99 in Outlet Dia, Pressure Drop: 5.98 in (LR), 7.99 in (MR), 10 in (HR), FRG, 28.94 in L
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 17.99 in (457 mm) |
| Family | FRG |
| Inlet Diameter | 7.99 in |
| Length | 22.17 in (563.2 mm) |
| Outer Diameter | 8 in (203 mm) |
| Outlet Diameter | 8 in |
| Overall Length | 28.94 in (735.1 mm) |
| Rated Flow High Range | 1392 cfm (39.42 m³/min) |
| Rated Flow Low Range | 1042 cfm (30 m³/min) |
| Rated Flow Mid Range | 1229 cfm (34.81 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Series | FRG |
| Style | Radialseal |
| Airflow Rate | 1042-1392 CFM |
| Body Diameter | 17.99 in |
| Filter Type | Radialseal |
| Product Category | Air Cleaner |
Interchanges & Equivalent parts:
| FRG180031 |
| 554005014000 |
| 431132 |
| 102B0075 |
| 10000679 |
| RN24088 |
| RN24089 |
| DG180031 |
| 359964 |
| 63439 |
| AH169560 |
| GM69932 |
| 40C0825 |
| A022580 |
| 29320646 |
| G180031387140 |
| 215048 |
| 6307003 |
| P2697800 |
| 281741100 |
| 750201011175 |
| 504771 |
| 163552517 |
| 60027786 |
| DN G180031 |
| DN G180031 |
| 5492513 |
| 800181332 |
| 800104216 |
| 800159918 |
| 803190312 |
| 006307003 |
| 02250155690 |
| 1010500259 |
| 1000100021 |
| 1000100003 |
| 2191-G180031 |
| DONG180031 |
| RS4629 |
| RS4989 |
| 2250155690 |
