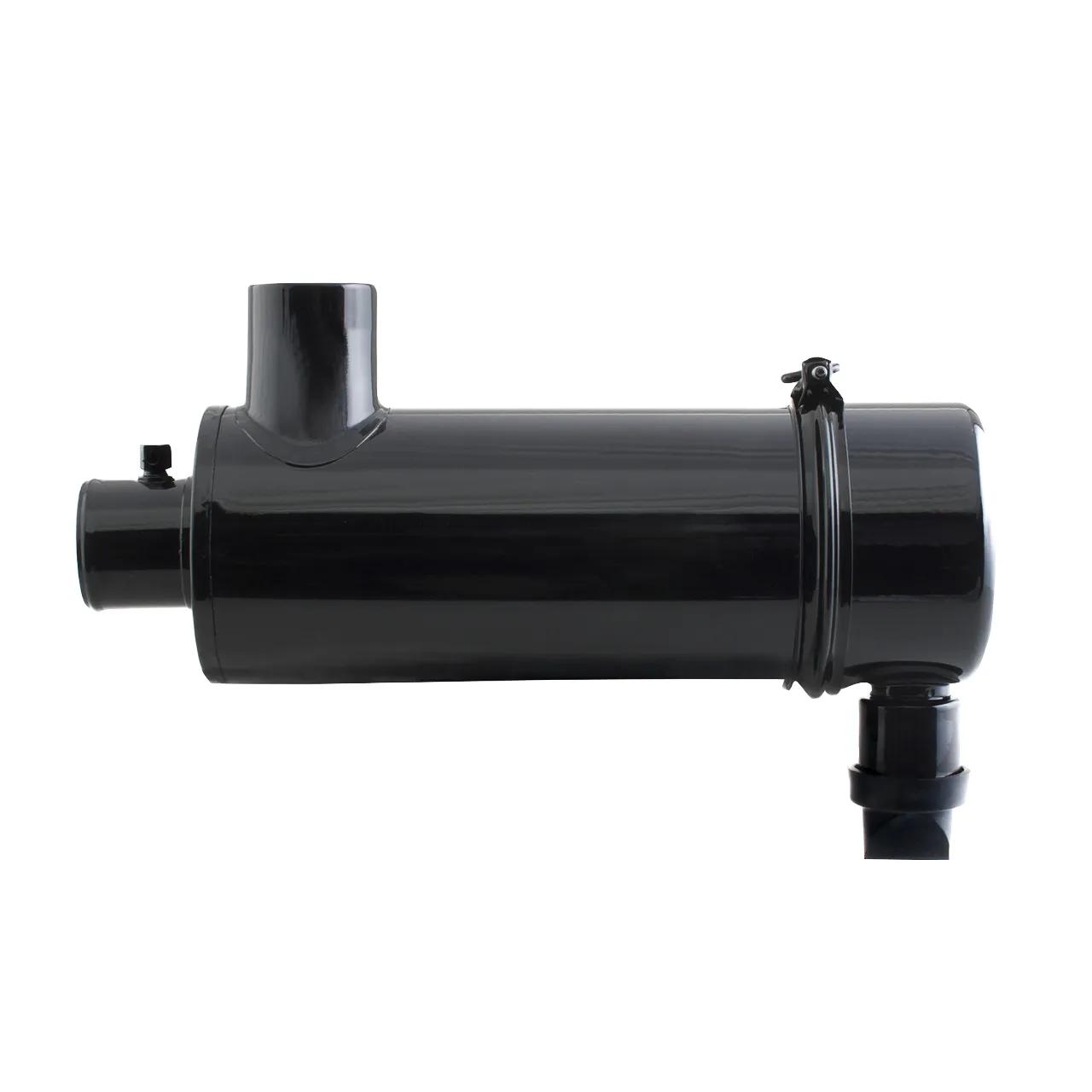

Donaldson Air Cleaner Radialseal, 92 CFM (LR), 106 CFM (MR), 120 CFM (HR), 5.25 in Body Diameter, 2.5 in Inlet & Outlet Diameter
#DONG052686
Product Overview
Air Cleaner, Radialseal, 92 CFM (LR), 106 CFM (MR), 120 CFM (HR), 5.25 in Body Dia, 2.5 in Inlet Dia, 2.5 in Outlet Dia, Pressure Drop: 5.98 in (LR), 7.99 in (MR), 10 in (HR), FRG, 17.06 in L
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 5.25 in (133.4 mm) |
| Family | FRG |
| Inlet Diameter | 2.5 in (63.5 mm) |
| Length | 11.56 in (293.7 mm) |
| Outlet Diameter | 2.5 in (63.5 mm) |
| Overall Length | 17.06 in (433.4 mm) |
| Rated Flow High Range | 121 cfm (3.43 m³/min) |
| Rated Flow Low Range | 92 cfm (2.6 m³/min) |
| Rated Flow Mid Range | 106 cfm (3.01 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Series | FRG |
| Style | Radialseal |
| Airflow Rate | 92 CFM (LR), 106 CFM (MR), 120 CFM (HR) |
| Body Diameter | 5.25 in |
| Filter Type | Radialseal |
| Product Category | Air Cleaner |
Interchanges & Equivalent parts:
| 2191-G052686 |
| DONG052686 |
| DN G052686 |
| DN G052686 |
