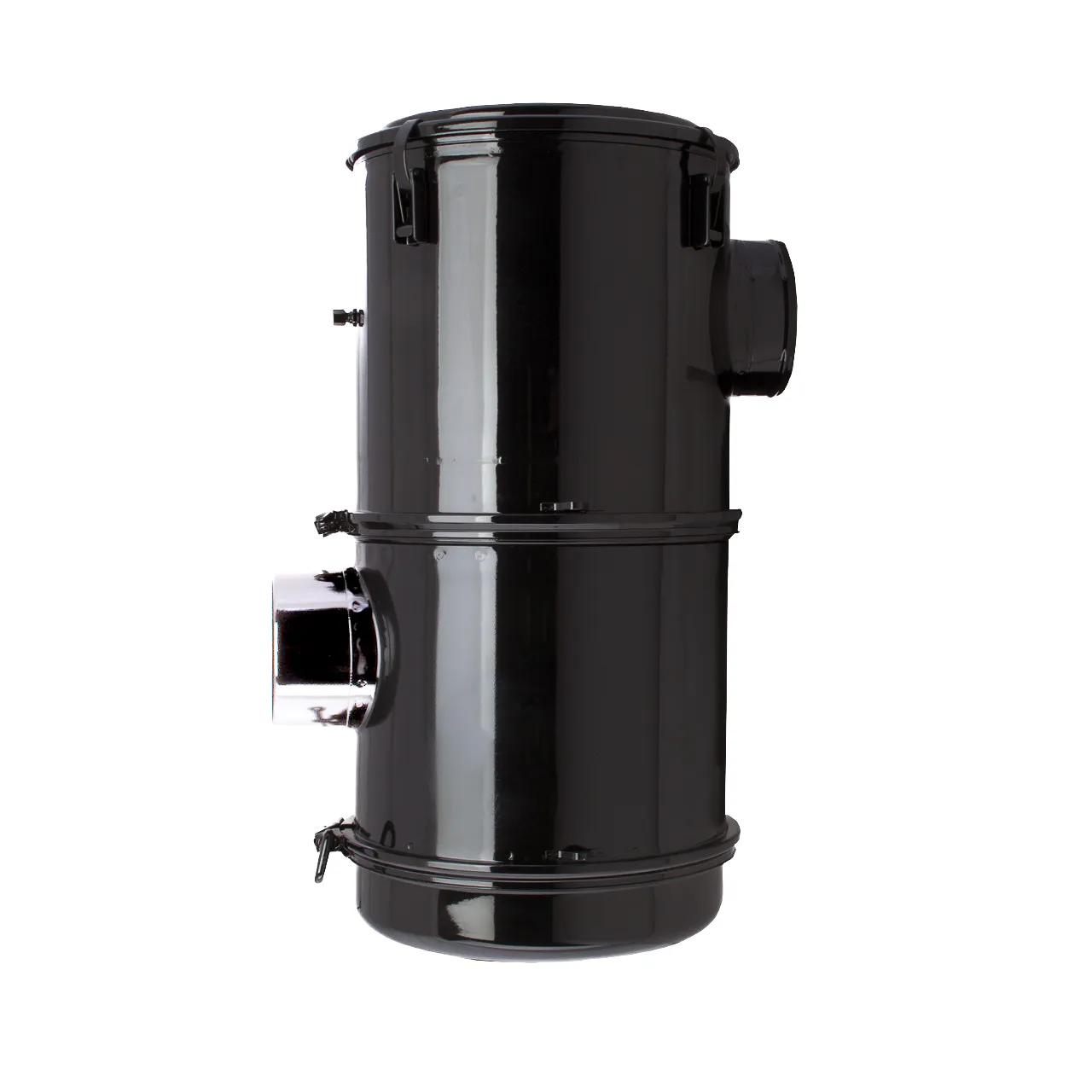

Donaldson Air Cleaner Tubular SBG, 14 in Body Diameter, 6 in Inlet & Outlet Diameter, 445-586 CFM Airflow
#DONG140261
Product Overview
Air Cleaner, Tubular, 445 CFM (LR), 519 CFM (MR), 586 CFM (HR), 14 in Body Dia, 6 in Inlet Dia, 6 in Outlet Dia, Pressure Drop: 5.98 in (LR), 7.99 in (MR), 10 in (HR), SBG, 30.47 in L, 19.02 in W
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter Range | 13 to 13.99 in |
| Family | SBG |
| Inlet Diameter | 5.98 in (151.9 mm) |
| Length | 13.91 in (353.4 mm) |
| Outlet Diameter | 6 in (152.4 mm) |
| Rated Flow High Range | 586 cfm (16.6 m³/min) |
| Rated Flow Low Range | 445 cfm (12.6 m³/min) |
| Rated Flow Mid Range | 519.13 cfm (14.7 m³/min) |
| Series | SBG |
| Length Range | 13 to 13.99 in |
| Style | Tubular |
| Width | 19.02 in (483.2 mm) |
| Airflow Rate | 445 CFM (LR), 519 CFM (MR), 586 CFM (HR) |
| Body Diameter | 14 in |
| Filter Type | Tubular |
| Product Category | Air Cleaner |
Interchanges & Equivalent parts:
| G140261 |
| 11072 |
| P01180 |
| SBG140261 |
| 20781F1 |
| 516808 |
| 0516808 |
| 2191-G140261 |
| DONG140261 |
| DN G140261 |
| DN G140261 |
| 01965 |
