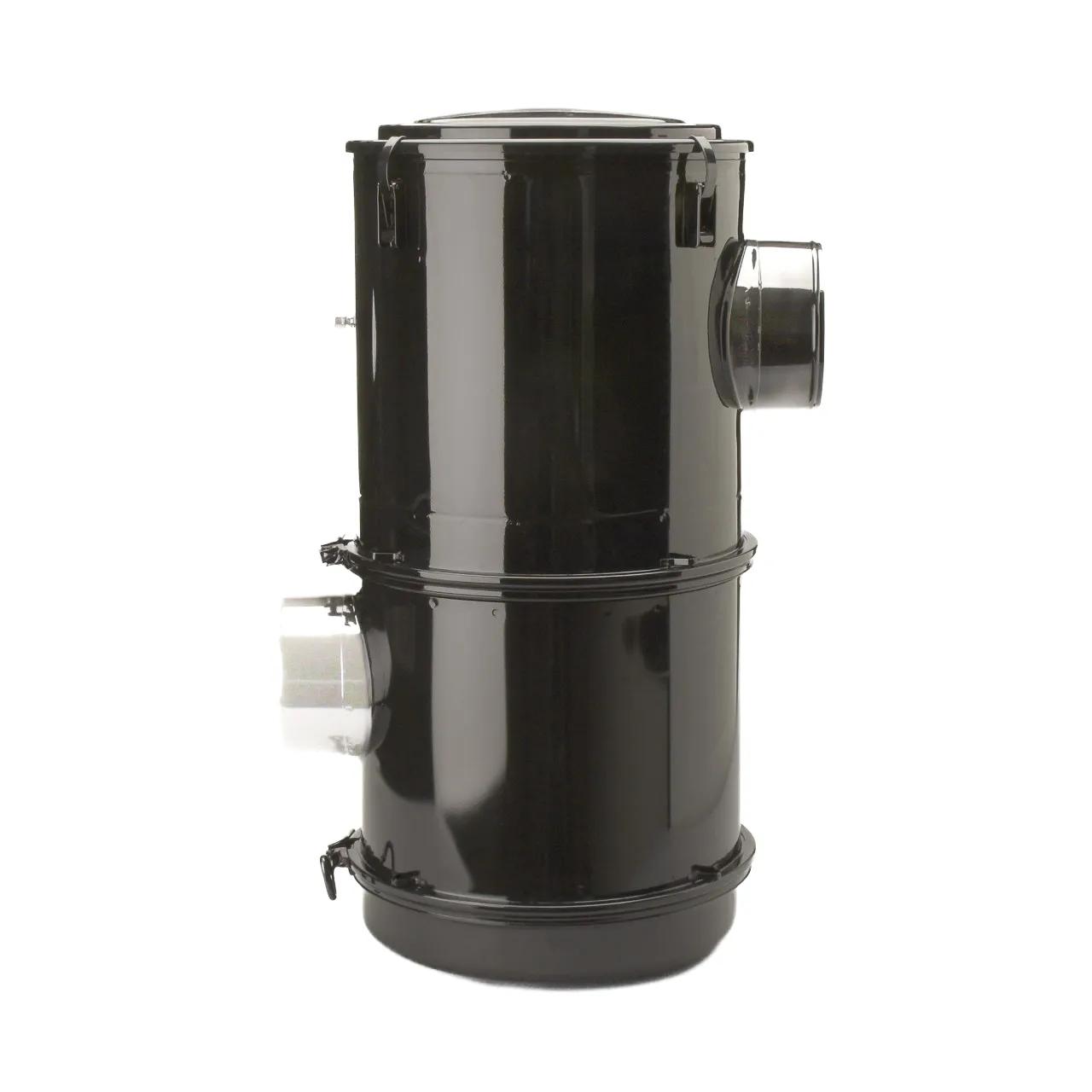

Donaldson Air Cleaner Tubular SBG Series, 16 in Body Diameter, 7 in Inlet & Outlet Diameter, 759-978 CFM Airflow
#DONG160035
Product Overview
Air Cleaner, Tubular, 759 CFM (LR), 869 CFM (MR), 978 CFM (HR), 16 in Body Dia, 7 in Inlet Dia, 7 in Outlet Dia, Pressure Drop: 5.98 in (LR), 7.99 in (MR), 10 in (HR), SBG, 33.47 in L, 22.01 in W
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 16 in (406.4 mm) |
| Inlet Diameter | 7.01 in (178.06 mm) |
| Length | 15.91 in (404.2 mm) |
| Outlet Diameter | 7 in (177.8 mm) |
| Overall Length | 33.47 in (850.2 mm) |
| Rated Flow High Range | 978 cfm (27.7 m³/min) |
| Rated Flow Low Range | 760 cfm (21.5 m³/min) |
| Rated Flow Mid Range | 868.75 cfm (24.6 m³/min) |
| Series | SBG |
| Length Range | 15 to 15.99 in |
| Width | 22.01 in (559.1 mm) |
| Airflow Rate | 759 CFM (LR), 869 CFM (MR), 978 CFM (HR) |
| Body Diameter | 16 in (406.4 mm) |
| Filter Type | Tubular |
| Product Category | Air Cleaner |
Interchanges & Equivalent parts:
| G160035 |
| P01183 |
| DNG160035 |
| SKS331975 |
| SBG160035 |
| 1060263 |
| DN G160035 |
| DN G160035 |
| 06819 |
| 2191-G160035 |
| DONG160035 |
