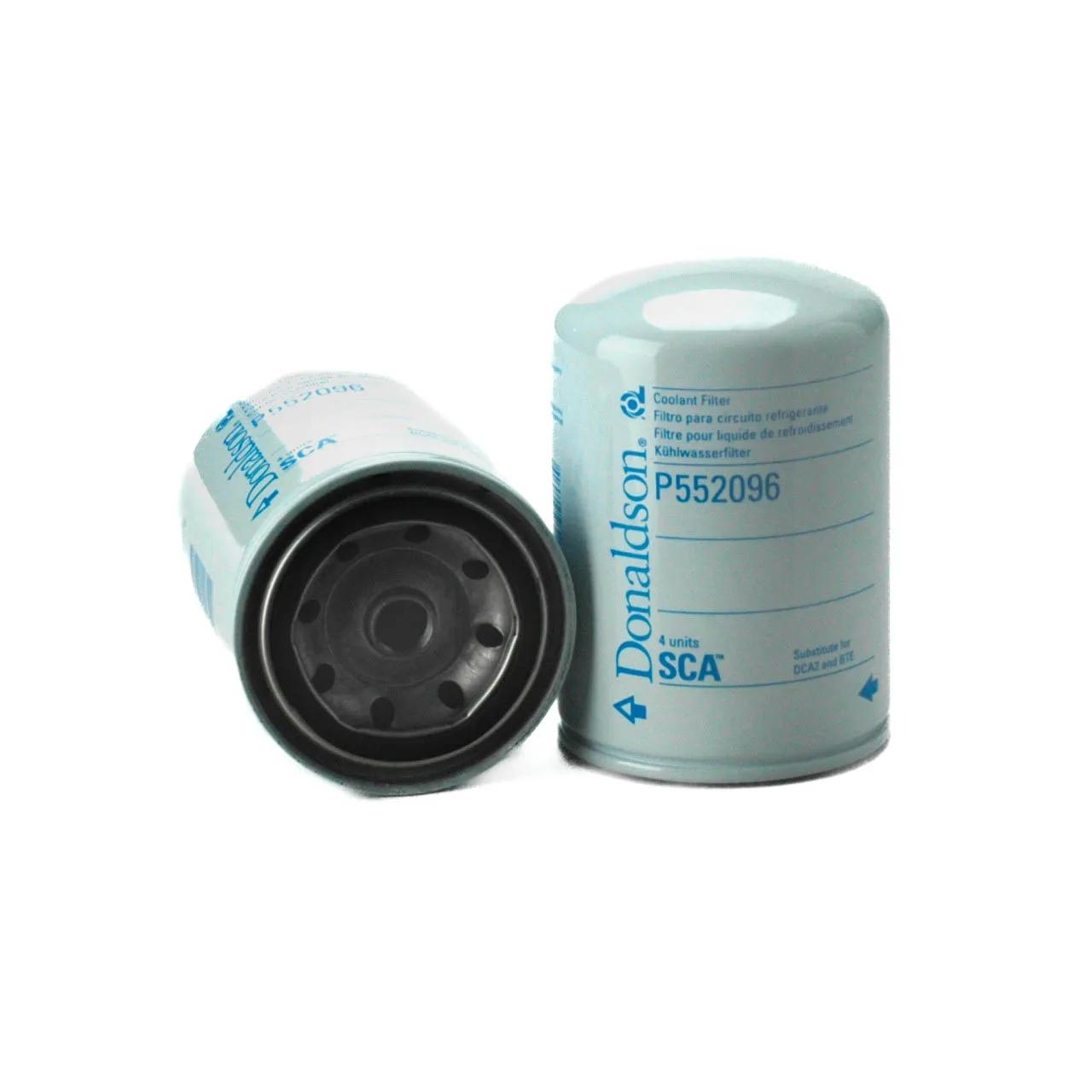

Donaldson Coolant Filter, Spin-On, 5.36 in Length, M16 x 1.5 Thread, 3.66 in Outer Diameter, 50 Micron Efficiency
#DONP552096
Product Overview
Coolant Filter, Cellulose Filter Media, Spin-On, 50 micron Efficiency, 2.4 in Gasket I.D., 2.8 in Gasket O.D., 5.35 in L
Features & Benefits
- Donaldson coolant filters provide protection from contamination for a range of coolant systems
- Contains enough additive to initially charge the cooling system to reach the first service interval
- Seals are constructed specifically to withstand extreme heat and cold
- Product range allows you to choose the filtration method that suits your maintenance practices and schedules
Specifications
| Application | Volvo |
| Diameter Range | 3 to 3.99 in |
| Gasket ID | 2.4 in (61 mm) |
| Gasket OD | 2.8 in (71.2 mm) |
| Length | 5.36 in (136.2 mm) |
| Outer Diameter | 3.66 in (92.97 mm) |
| Length Range | 5 to 5.99 in |
| Style | Spin-On |
| Thread Size | M16 x 1.5 |
| Efficiency | 50 Micron |
| Filter Media Type | Cellulose |
| Filter Type | Spin-On |
| Thread Size | M16 x 1.5 |
| Standards | SAE J1985 |
| Product Category | Coolant Filter |
Interchanges & Equivalent parts:
| BW5141 |
| 89196 |
| WF2096 |
| WFR82096 |
| PR9884 |
| WC21 |
| H28WF |
| WE2096 |
| LFW5141 |
| WA9409 |
| 4196 |
| AW2237SP |
| W65228 |
| WC7101 |
| SW1611 |
| SFC2096 |
| PSA237 |
| 24196 |
| 524196 |
| 96196 |
| VS1975 |
| CSM6506 |
| 56MW |
| UNIQUEL021 |
| 2243004 |
| CV102801 |
| 85402311 |
| WFC17 |
| 3562227705 |
| 20539991 |
| Y05996902 |
| 19500350 |
| 912027900 |
| 9120279 |
| RA101 |
| WF552096 |
| 16619645 |
| 1699826 |
| 1699830 |
| 16998304 |
| 16998307 |
| 20532237 |
| VOE20532237 |
| 1661964 |
| WGW2096 |
| 1661964-5 |
| DN P552096 |
| DN P552096 |
| 1699830-4 |
| 1699830-7 |
| 2191-P552096 |
| BW5140 |
| BW5183 |
| DONP552096 |
| FIL4196 |
| HLC1078526 |
| PFC6641 |
| SP-1103 |
| WF2096FLG |
| WC4 |
