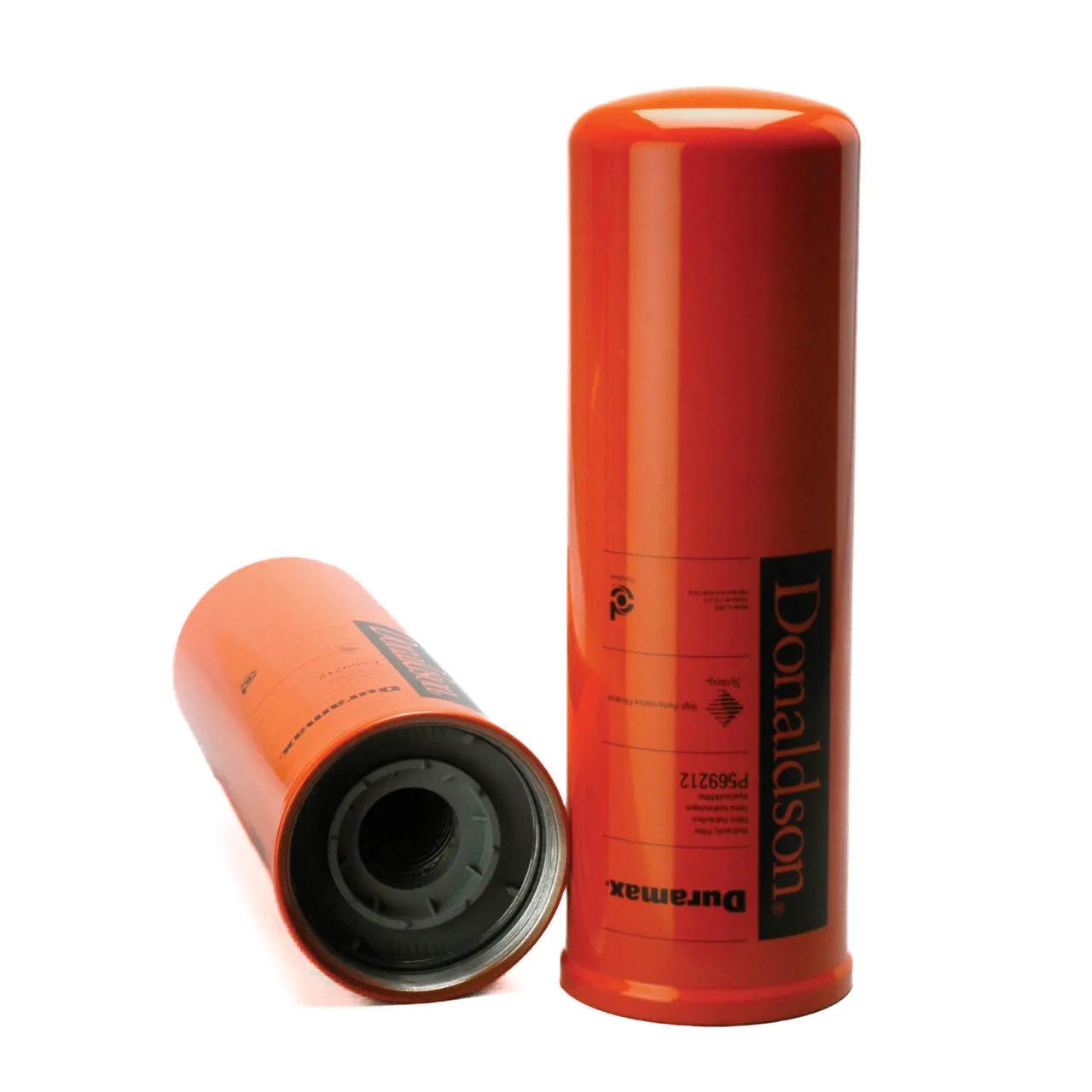

Donaldson Duramax Hydraulic Filter, Spin-On, Synthetic Media, 14.24 in Length, 4.55 in OD, Thread M108 x 2.5
#DONP569212
Product Overview
Donaldson Duramax hydraulic spin-on filter with synthetic media, designed for superior contamination control and long service life in hydraulic systems.Hydraulic Filter, Synthetic Media, Filter Rating: 11 micron, 4.06 in Gasket I.D., 4.55 in OD, Spin-On, M108 x 2.5 Thread, 14.24 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
- Duramax filters are the highest rated medium pressure spin-on filters available in the market.
- Duramax filters are proven, reliable, long-lived and easy to install.
- A variety of mix and match system of heads, housings and media choices to meet your exact requirements.
- Applications include hydrostatic charge side filtration, pilot circuits, power shift transmissions and kidney loop circuits.
- Improved performance including higher burst, greater fatigue strength and longer filter life.
Specifications
| Diameter Range | 4 to 4.99 in |
| Gasket ID | 4.06 in (103.2 mm) |
| Length | 14.24 in |
| Outer Diameter | 4.55 in |
| Series | HNK04/05 |
| Length Range | 14 to 14.99 in |
| Style | Spin-On |
| Thread Size | M108 x 2.5 |
| Filter Rating | 11 Micron |
| Thread Size | M108 x 2.5 |
| Media Type | Synthetic |
| Product Category | Hydraulic Filter |
Interchanges & Equivalent parts:
| P569212 |
| WH1260 |
| 400423 |
| SL10423 |
| WL10423 |
| 84162480 |
| 84189327 |
| 84189328 |
| RE577060 |
| RE577612 |
| RE589304 |
| RE590270 |
| RE310653 |

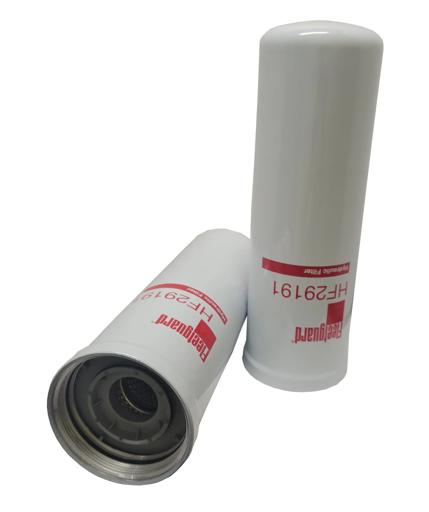

| HF29191 |
| FIL400423 |
| SH66246 |
| 84240234 |
