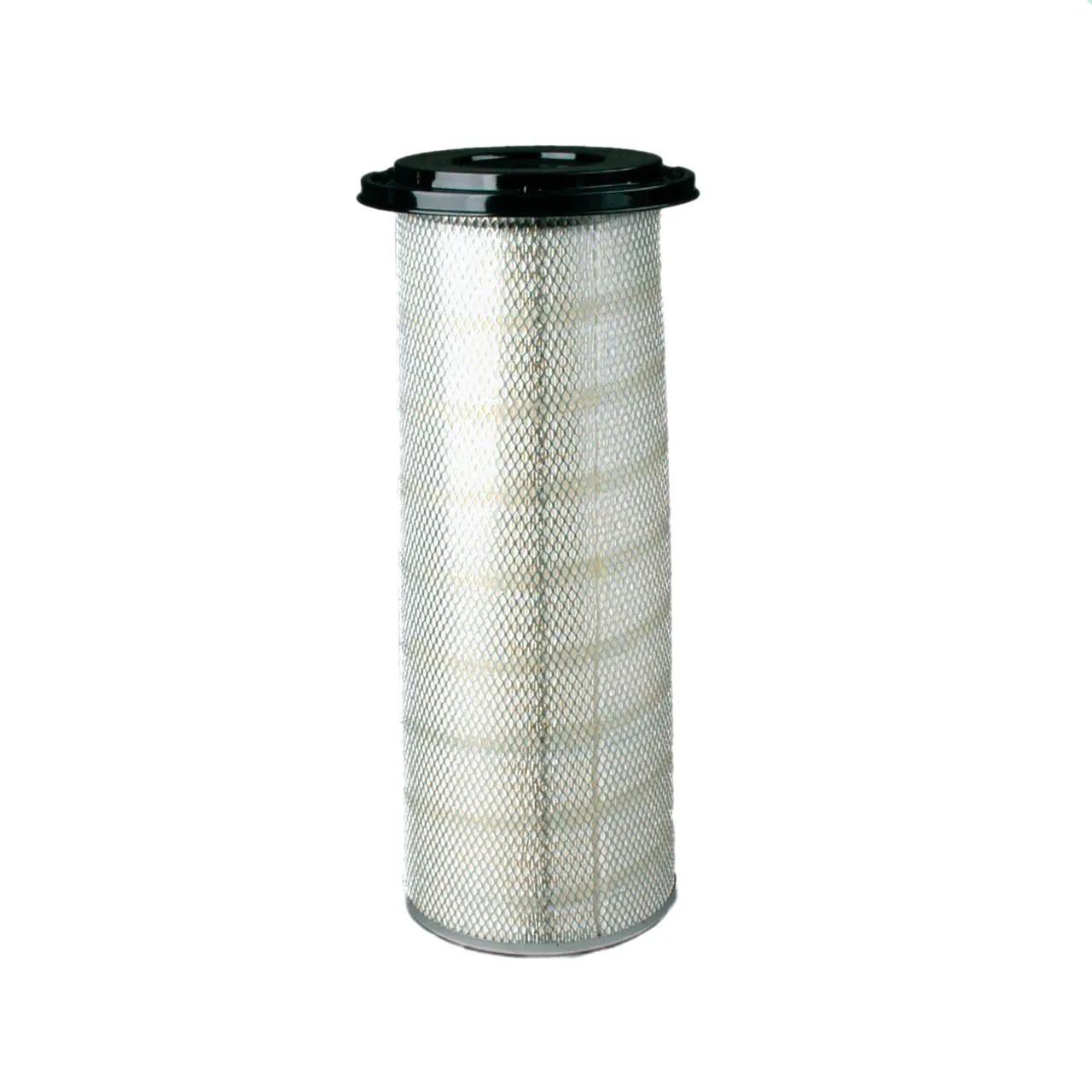

Donaldson ECG Cone Air Filter, 28.02 in Length, 10.62 in Outer Diameter, 6.61 in Inner Diameter, 99.9% Efficiency
#DONP150695
Product Overview
Why Choose Donaldson?
Features & Benefits
- ECG Konepac air cleaner family provides high airflow in compact size, for horizontal installation
- Cone shaped filter allows maximum media in a small package
- Durable housing withstands rugged conditions
Specifications
| Diameter Range | 10 to 10.99 in |
| Efficiency Test Std | ISO 5011 |
| Family | ECG |
| Inner Diameter | 6.61 in (167.9 mm) |
| Length | 28.02 in (711.8 mm) |
| Outer Diameter | 10.62 in (269.75 mm) |
| Small Outer Diameter (in.) | 9.21 in (234 mm) |
| Length Range | 28 to 28.99 in |
| Style | Cone |
| Type | Primary Air Filter |
| Airflow Rate | high airflow |
| Application | horizontal installation |
| Efficiency | 99.9 % |
| Filter Type | Primary Air Filter |
| Media Type | Cellulose |
| Minor OD | 9.21 in |
| Series | ECG |
| Product Category | Air Filter |
Interchanges & Equivalent parts:
| ARM150695 |
| ABPN10GAF1969M |
| PA2680 |
| CFM150695 |
| 88882 |

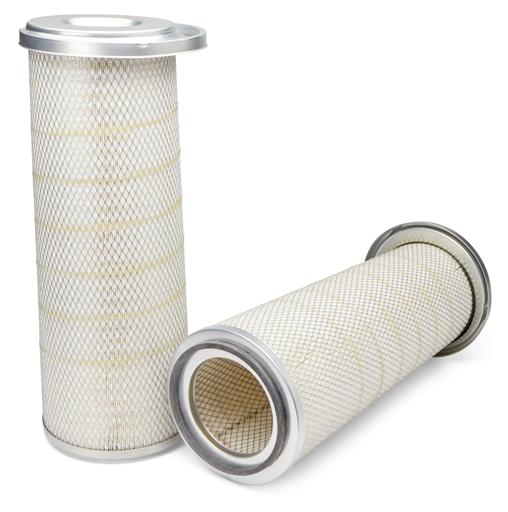

| AF1969 |
| AF1969M |
| FA0695 |
| AFR81969 |
| AFR81969M |
| CA6512 |
| AG971067A |
| GA695 |
| AF797 |
| SA16188 |
| LA1225 |
| LAF695 |
| A1140C |
| 6882 |
| 70016S |
| 6948138 |
| A84433 |
| A84433Q |
| AF4433 |
| AF4433Q |
| HDA5979 |
| P150695 |
| SL8928 |
| 46882 |
| 94882 |
| 3I0405 |
| PPP150695 |
| DA2513 |
| 9576P150695 |
| 2505002000 |
| DNP150695 |
| 25042054 |
| 2MD4128M |
| 57MD42 |
| 57MD428M |
| 57MD42M |
| FA2191P901439 |
| 31483001 |
| 6302034 |
| DONP150695 |
| N0397 |
| 1402464 |
| FAF4558 |
| 530162 |
| AF695 |
| 686984 |
| DEL150695 |
| AF150695 |
| 1110903 |
| V1110903 |
| WGA830 |
| E1125L |
| ABP N10G AF1969M |
| DN P150695 |
| 01402464 |
| 12337282 |
| 2191-P150695 |
| 38-2032S |
| 3I-0405 |
| 57MD31 |
| 97136305 |
| A150695 |
| AF1969FLG |
| AF1969MFLG |
| FA46882 |
| FIL6882 |
| HDA150695 |
| LAF69 |
| 2KYT6 |
| CFA2003 |
| A8684 |
| HA40182 |
