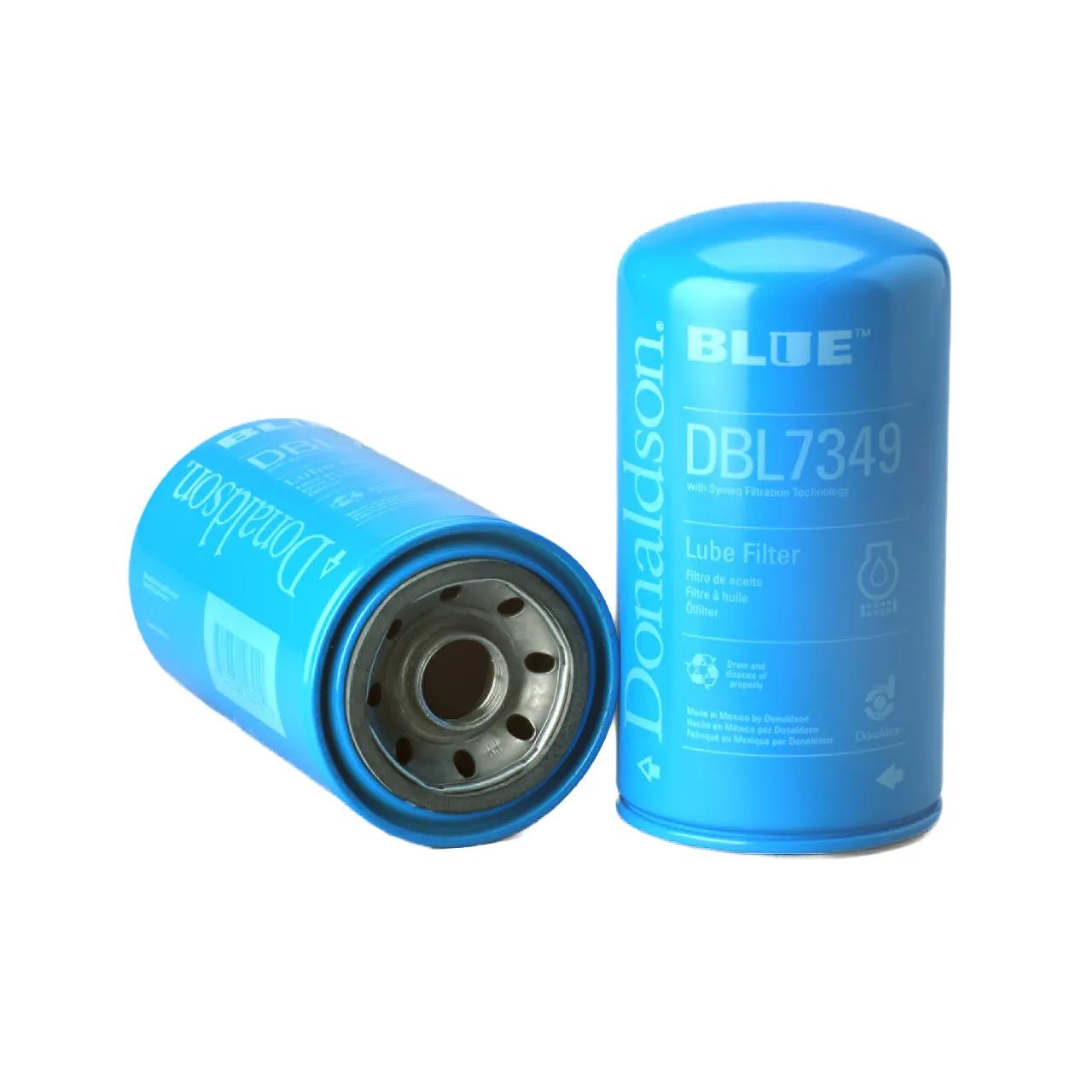

Donaldson Engine Oil Filter, Spin-On, Full-Flow, Synteq Media, Length 6.85 in
#DONDBL7349
Product Overview
Donaldson Blue lube filters remove more than 90% of contaminants 10 microns or larger (cellulose filters typically remove 50% or less), delivering greater efficiency and longer filter life with proven Synteq media.Lube Filter, Full-Flow, Synteq Media, Collapse Burst Pressure: 100 psi, Filter Rating: 15 micron, 2.44 in Gasket I.D., 2.83 in Gasket O.D., Standards: ISO 4548-12, Spin-On, 1-16 UN Thread, 6.85 in L
Features & Benefits
- Donaldson Blue lube filters are designed specifically for extended maintenance programs
- Proven Synteq media delivers greater efficiency and higher contaminant holding capacity
- Removes more than 90% of contaminants 10 microns or larger (cellulose filters typically remove 50% or less)
- Twice the contaminant holding capacity of standard cellulose filters - for longer filter life
- Direct replacements to standard filters - no system modifications
Specifications
| Gasket ID | 2.44 in |
| Gasket OD | 2.83 in |
| Length | 6.85 in (174 mm) |
| Style | Spin-On |
| Collapse Burst Pressure | 100 psi |
| Filter Rating | 15 micron |
| Filter Type | Full-Flow |
| Filtration Efficiency | More than 90% of contaminants 10 microns or larger |
| Thread Size | 1-16 UN |
| Media Type | Synteq |
| Standards | ISO 4548-12 |
| Product Category | Lube Filter |
Interchanges & Equivalent parts:
| BD7317 |
| 84620XE |
| LF3349 |
| LF16035 |
| LF3552 |

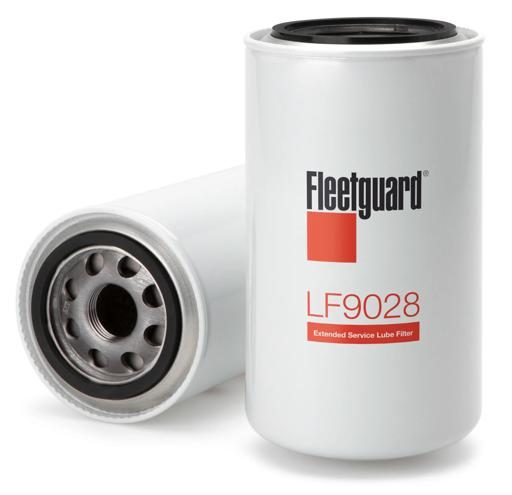

| LF9028 |
| HPH3976A |
| SO10008 |
| 7620XE |
| SP45202 |
| 57620XE |
| 300046300P12 |
| 300046300 |
| 1012N010 |
| Y03753603 |
| 76192087 |
| 11E170140 |
| 333Y7453 |
| YN50VU0001DA |
| INSP200018 |
| 991290710 |
| 252718130145 |
| 278618139902 |
| 5285612 |
| 278618999976 |
| 103004001 |
| LF7349 |
| 96332 |
| 57620XP |
| ABP N03 LL7349 |
| 025127 |
| 0016482100 |
| ALO19018 |
| BT7349 |
| DONELF7349 |
| LF9028FLG |
| LFP780XL |
