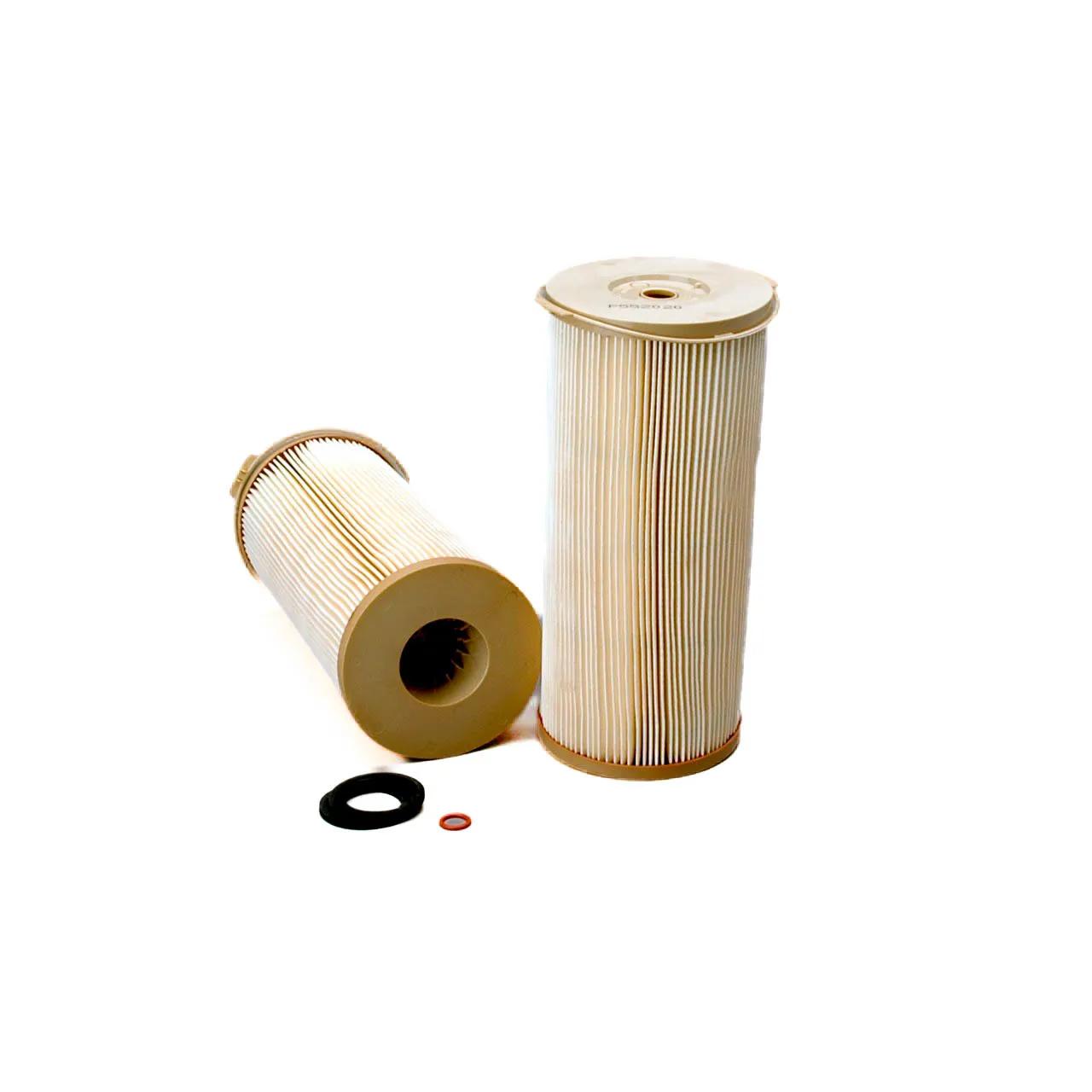

Donaldson Fuel Filter Cartridge, Water Separator, 10 Micron Beta Efficiency, 9.65 in Length, 4.37 in OD, 0.83 in ID
#DONP552020
Product Overview
Fuel Filter, Cellulose Filter Media, Water Separator Cartridge, 10 micron (Beta), 14 micron (Beta) Efficiency, 0.83 in ID, 4.37 in OD, 9.65 in L
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
- Donaldson fuel filters are designed to help prevent premature injector and pump wear by delivering cleaner fuel to your engines
- Reliable performance pressure relief valve allows fuel to rise slowly
- Compatible with existing electronic filter life indicators
- Cellulose media effectively meets application efficiency and capacity requirements
Specifications
| Diameter Range | 4 to 4.99 in |
| Efficiency Test Std | SAE J1488, J1985 |
| Inner Diameter | 0.83 in (21.1 mm) |
| Length | 9.65 in |
| Outer Diameter | 4.37 in |
| Overall Length | 7 in (177.8 mm) |
| Length Range | 9 to 9.99 in |
| Style | Cartridge |
| Application | RACOR 2020N10 |
| Efficiency | 10 micron (Beta), 14 micron (Beta) |
| Filter Media Type | Cellulose |
| Filter Type | Water Separator Cartridge |
| Product Category | Fuel Filter |
Interchanges & Equivalent parts:
| ABPN10GFS1206 |
| BF789010 |
| PF590 |
| PF59010 |
| PF59030 |
| PF7790 |
| PF789010 |
| PR59030E |
| 86210 |
| 86792 |
| 520 |
| 520W |
| J8620210 |
| FF217 |
| FS1206 |
| FS1293 |
| FS20202 |
| FFR8217 |
| FSR81206 |
| FSR81293 |
| G2020S |
| GS2033 |
| GS2033M |
| GTB6810 |
| 830 |
| FF1135 |
| FF1136 |
| FF1235 |
| FF1236 |
| FF1237 |
| FF830 |
| A16022 |
| HDA16022 |
| SN1206 |
| SN920210 |
| F3212 |
| FS753 |
| FS7531 |
| L2020F |
| L2020FN |
| LF2020FN2 |
| LFF3539 |
| P12781 |
| P1279X |
| EC189 |
| FD782 |
| FD782FP |
| 600201 |
| 3210 |
| 3792 |
| PM2020 |
| PP202030 |
| F73008 |
| PF3008 |
| 1000FE |
| 1000FH |
| 1000MA |
| 1020EO |
| 2020TM |
| 2020TMOR |
| 731000EE |
| 731000SERIES |
| 73100EE |
| 731020EO |
| 751000FE |
| 751000SERIES |
| 771000FE |
| 771000SERIES |
| 791000FE |
| 791000SERIES |
| 80012 |
| 8002 |
| 800A30 |
| 800A5 |
| 800SERIES |
| 2020N10 |
| 20202 |
| SK3925 |
| SFF1206 |
| P202 |
| PD202 |
| 33210 |
| 33792 |
| WF10201 |
| TP1045 |
| 563 |
| 2914808600 |
| 207694 |
| 95210 |
| 95212 |
| 1110716 |
| 3I1252 |
| 5134492 |
| 9Y4446 |
| 36107 |
| 590 |
| PC2020 |
| 264 |
| 531327 |
| DNP552020 |
| 4013F |
| G1001 |
| H4730252190 |
| H4730213500 |
| 04FS1206 |
| CPL2020 |
| 303173 |
| PF2020N12 |
| 53C0533 |
| 2191P552020 |
| MPL3125 |
| CBO4021 |
| 167241 |
| 71198854 |
| 688692 |
| P37 |
| FF552020 |
| FS552020 |
| 3130932 |
| 36104 |
| 3838854 |
| 3827277 |
| 811644 |
| WGFS1206 |
| E809KPD387 |
| 60249072 |
| 10337604 |
| FF1020 |
| PF7790-10 |
| TP1045F |
| DF30293 |
| YL00008002 |
| PF4624610 |
| E521KPD762 |
| PF7890-10 |
