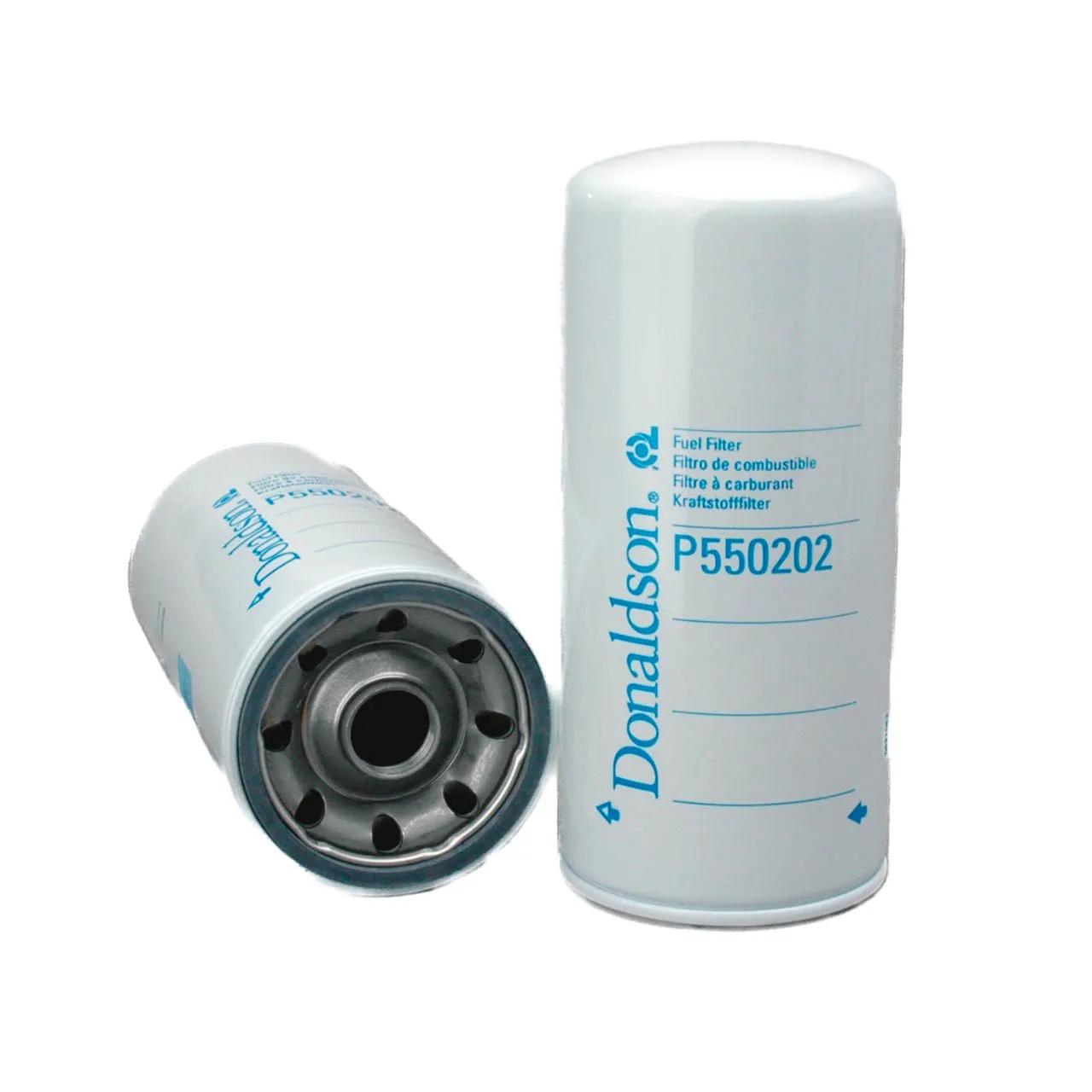

Donaldson Fuel/Water Separator Spin-On Filter, 10.24 in Length, 1 1/4-12 UN Thread, 4.66 in Outer Diameter, Cellulose Media
#DONP550202
Product Overview
Fuel Filter, Cellulose Media, Collapse Burst Pressure: 100 psi, Filter Rating: 9 micron, 3.86 in Gasket I.D., 4.33 in Gasket O.D., 4.66 in OD, Standards: ISO 19438, Spin-On, 1-1/4-12 UN Thread, For CUMMINS 299202, 10.24 in L
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Application | CUMMINS 299202 |
| Diameter Range | 4 to 4.99 in |
| Efficiency 99% | 9 Micron |
| Engine Manufacturer | Cummins |
| Gasket ID | 3.86 in (98.1 mm) |
| Gasket OD | 4.34 in (110.3 mm) |
| Length | 10-15/64 in |
| Outer Diameter | 4.66 in (118.3 mm) |
| Length Range | 10 to 10.99 in |
| Style | Spin-On |
| Thread Size | 1 1/4-12 UN |
| Collapse Burst Pressure | 100 psi |
| Filter Rating | 9 micron |
| Thread Size | 1 1/4-12 UN |
| Media Type | Cellulose |
| Standards | ISO 19438 |
| Product Category | Fuel Filter |
Interchanges & Equivalent parts:
| AMF202 |
| BF596 |
| 86116 |
| LFF202 |
| J8621202 |
| FFR8202 |
| PF202 |
| FF202 |
| FF5346 |
| P3403A |
| P3430 |
| P3430A |
| GP53E |
| GP55 |
| GP55M |
| 825 |
| FF825 |
| A16007 |
| HDA16007 |
| H176WK |
| SN202 |
| F199 |
| F199U |
| WK12111 |
| FD263 |
| FD263FP |
| FD792 |
| FD820 |
| FG802 |
| 3116 |
| PER134 |
| A596 |
| 6701685 |
| 6702818 |
| 6725583 |
| 6935223 |
| F70028 |
| F70134 |
| GP27 |
| GP28 |
| HDZ217 |
| FC57032 |
| SK3529 |
| SFF0202 |
| SFF1216 |
| 2433200 |
| 33116 |
| 4507143 |
| 73111946 |
| FC23010 |
| 557 |
| 95116 |
| SP539 |
| 2914617200 |
| E6639 |
| 299202 |
| 2266557 |
| 3I0754 |
| 3I1155 |
| 9Y4404 |
| 961419 |
| 961657 |
| MD0961657 |
| AZF426 |
| 3313306 |
| 3375404 |
| 531303 |
| 1214921H1 |
| 1257972H1 |
| 120002068 |
| 25010812 |
| 4054556 |
| 4084262 |
| 4790234 |
| 61259037 |
| E1HZ9365A |
| V61559 |
| 61559 |
| 9576P550202 |
| D9HZ9155B |
| DPHZ9155B |
| E1HT9155AA |
| E1HZ9155A |
| E1HZ9365B |
| DNP550202 |
| 822S |
| G033116 |
| Z237 |
| 12000206 |
| 3563465C1 |
| R37961D2 |
| 6003117110 |
| 6003117111 |
| 6003117130 |
| 6003117131 |
| 6003117132 |
| 6003117152 |
| 6003117632 |
| 6003197111 |
| CU299202 |
| CUFF202 |
| VJ8004 |
| 2539 |
| 4123629 |
| AP3615 |
| LK3615 |
| 25060 |
| MDF202 |
| MPL494 |
| TP917 |
| V6155 |
