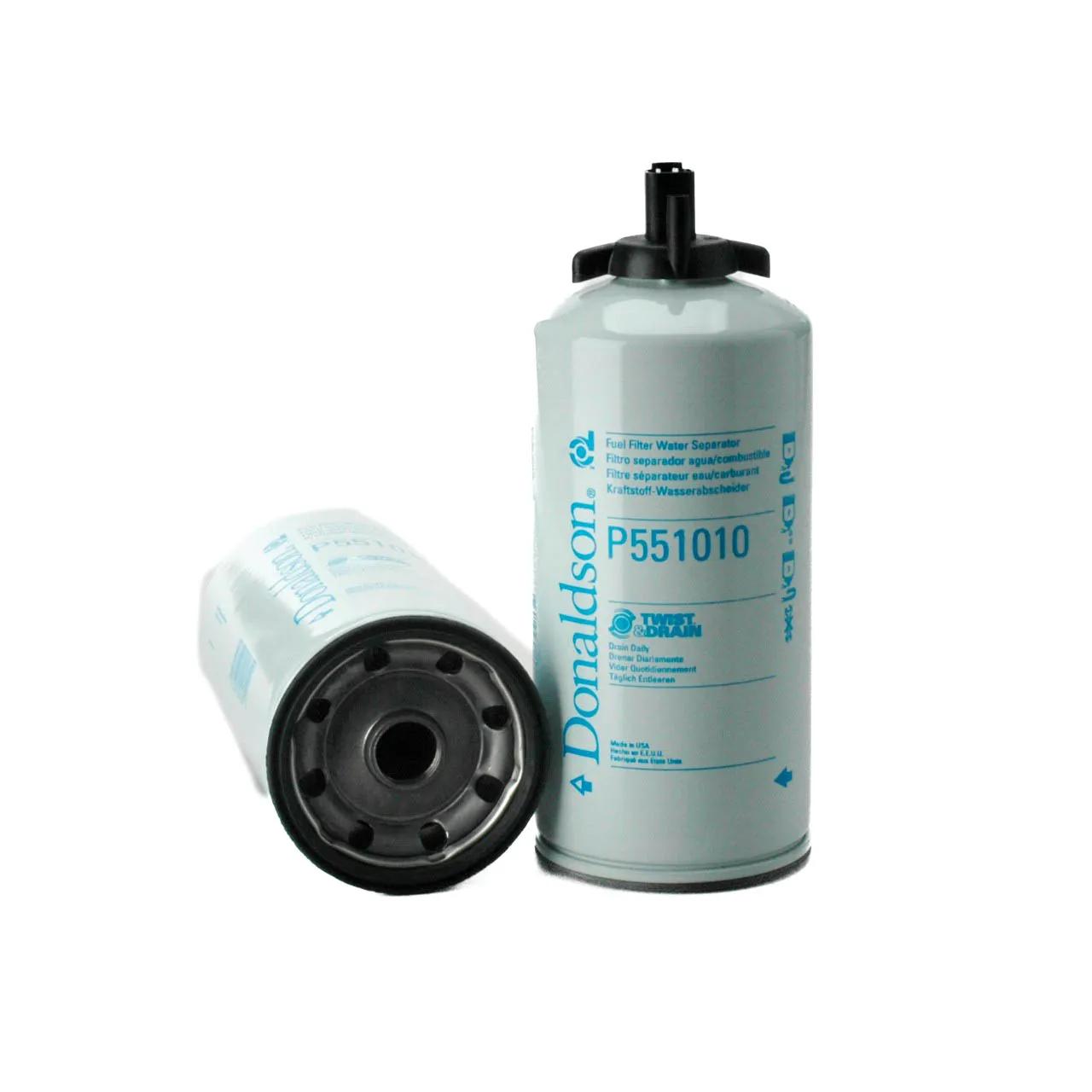

Donaldson Fuel/Water Separator Spin-On Filter, 10.36 in Length, 1-14 UN Thread, 4.23 in OD, Cellulose Media, 20 Micron
#DONP551010
Product Overview
Donaldson fuel filter and water separator with spin-on design featuring cellulose media and 20 micron filtration efficiency. Designed for reliable performance with DEUTSCH 2 Pin WIF sensor compatibility. Not for marine applications.Fuel Filter, Water Separator, Cellulose Media, 0.85 Filter Efficiency, Filter Rating: 20 micron, 3.54 in Gasket I.D., 3.86 in Gasket O.D., 4.22 in OD, Stand Pipe: Yes, Spin-On, 1-14 UN Thread, For DEUTSCH 2 Pin Wif Sensor, 10.36 in L
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Application | DEUTSCH 2 PIN WIF SENSOR |
| Diameter Range | 4 to 4.99 in |
| Emulsified H2O Efficiency | 85 Percent |
| Gasket ID | 3.54 in (90 mm) |
| Gasket OD | 3.86 in (98.1 mm) |
| Length | 10-23/64 in |
| Notes | Not for Marine Applications |
| Outer Diameter | 4.23 in (107.3 mm) |
| Length Range | 10 to 10.99 in |
| Stand Pipe | Yes |
| Thread Size | 1-14 UN |
| Type | Water Separator |
| Filter Efficiency | 0.85 |
| Filter Rating | 20 micron |
| Filter Type | Water Separator |
| Thread Size | 1-14 UN |
| Media Type | Cellulose |
| Product Category | Fuel Filter |
Interchanges & Equivalent parts:
| BF1382SP |
| 86606 |
| FS19995 |
| FF1186SP |
| SN40625 |
| 3608 |
| SK33222 |
| 33608 |
| 3222343171 |
| 2914866400 |
| V012938 |
| 4238521 |
| STCX769A |
| STCX769B |
| STCX770 |
| STCX771A |
| STCX771B |
| 9120287 |
| TWD P551010 |
| BF9903SP |
| 4312 |
| 1R0769 |
| 1R0770 |
| 1R0771 |
| 1R0781 |
| 3261641 |
| 3261642 |
| ELF7405 |
| FS20051 |
| HLC1119382 |
| LFF6771 |
| P550626 |
| BF9903-SP |
| 326-1641 |
