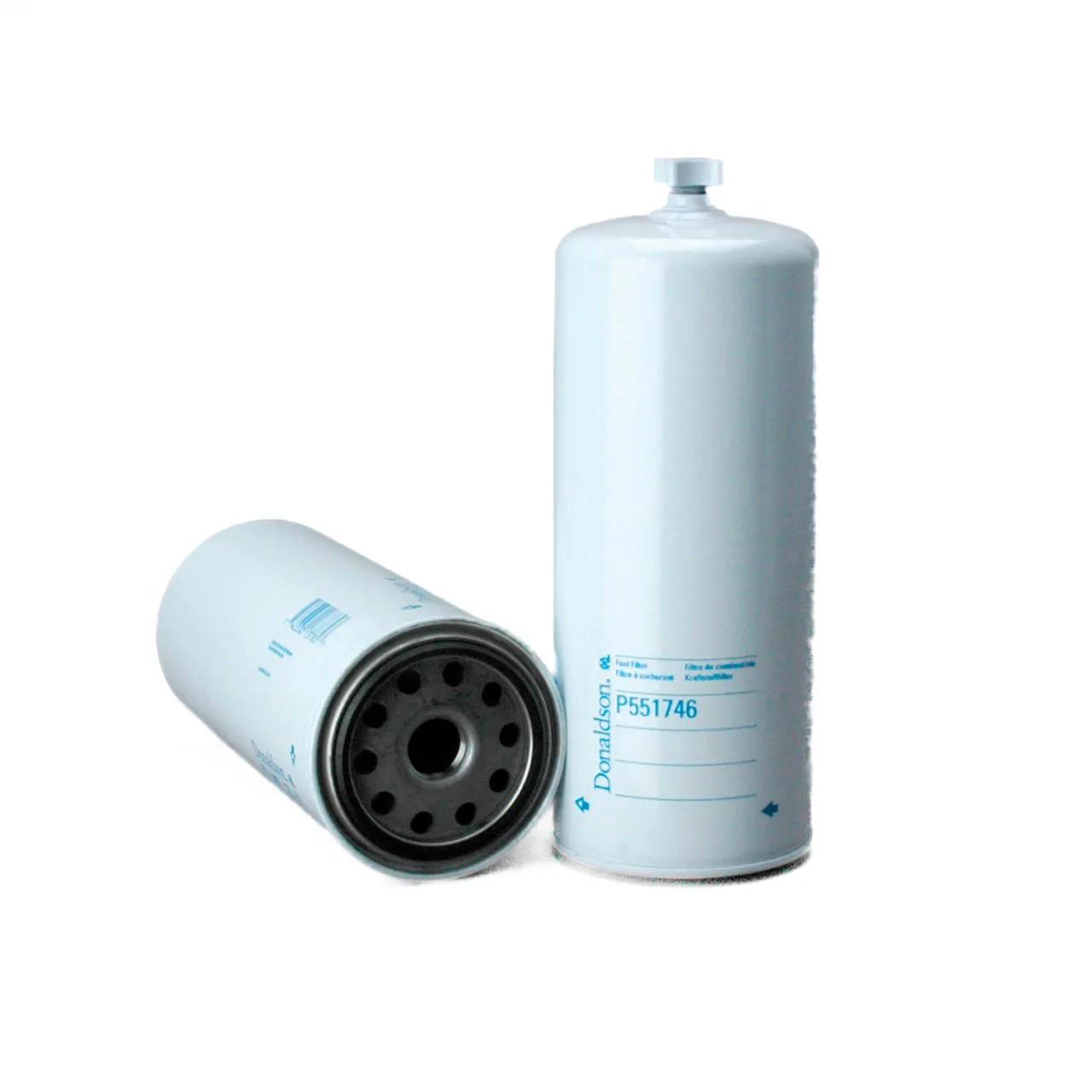

Donaldson Fuel/Water Separator Spin-On Filter, 11.31 in Length, 1-14 UN Thread, 4.3 in OD, 5 Micron Efficiency
#DONP551746
Product Overview
Fuel Filter, Water Separator, Collapse Burst Pressure: 90 psi, 0.95 Filter Efficiency, Filter Rating: 5 micron, 3.16 in Gasket I.D., 3.55 in Gasket O.D., 4.29 in OD, Standards: SAE J1985, Spin-On, 1-14 UN Thread, 11.31 in L
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter Range | 4 to 4.99 in |
| Efficiency 99% | 5 Micron |
| Emulsified H2O Efficiency | 95 Percent |
| Gasket ID | 3.16 in (80.3 mm) |
| Gasket OD | 3.55 in (90.2 mm) |
| Length | 11-5/16 in |
| Outer Diameter | 4.3 in (109 mm) |
| Length Range | 11 to 11.99 in |
| Style | Spin-On |
| Thread Size | 1-14 UN |
| Type | Water Separator |
| Collapse Burst Pressure | 90 psi |
| Filter Efficiency | 0.95 |
| Filter Rating | 5 micron |
| Filter Type | Water Separator |
| Thread Size | 1-14 UN |
| Standards | SAE J1985 |
| Product Category | Fuel Filter |
Interchanges & Equivalent parts:
| ABP N10G FS19591 |
| DN P551746 |
| DN P551746 |
| DONP551745 |
| FS19591 |

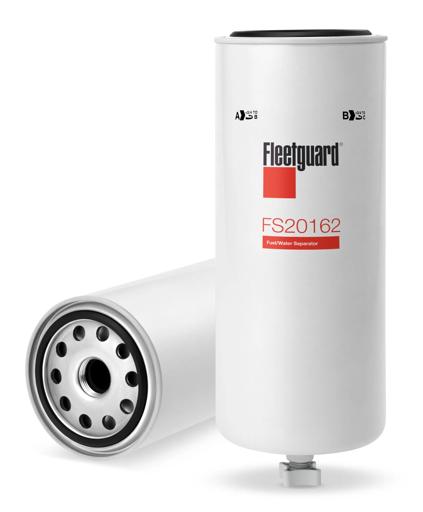

| FS20162 |
| 1290373 |
| FS19590 |
| 1335673 |
| 3780 |
| BF1283 |
| 2191-P551746 |
| FS19591FLG |
| 33780 |
| DONP551746 |
| 86780 |
| BF1265 |
| BF1260 |
| FF1181 |
| FS19934 |
| HLC1127926 |
| PS8450 |
| PS9263 |
| H7118WK10 |
| LFF8707 |
| PS4836 |
| PS4886 |
| LFF8707U |
| TP1417 |
