Donaldson Fuel/Water Separator Spin-On Filter, 2.8 in Length, 3.44 in Outer Diameter, Cellulose Media
#DONP556245
Product Overview
Fuel Filter, Cellulose Media, Filter Rating: 14 micron, 0.81 in ID, 3.48 in OD, Standards: SAE J1985, Cartridge, 2.8 in L
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
- Donaldson fuel filters are designed to help prevent premature injector and pump wear by delivering cleaner fuel to your engines.
- Reliable performance pressure relief valve allows fuel to rise slowly.
- Compatible with existing electronic filter life indicators.
- Cellulose media effectively meets application efficiency and capacity requirements.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Test Std | SAE J1985 |
| Gasket ID | 0.75 in (19.1 mm) |
| Length | 2.8 in |
| Outer Diameter | 3.44 in (87.38 mm) |
| Length Range | 2 to 2.99 in |
| Style | Cartridge |
| Filter Efficiency | 14 Micron |
| Filter Rating | 14 micron |
| Inside Diameter | 0.81 in |
| Media Type | Cellulose |
| Standards | SAE J1985 |
| Product Category | Fuel Filter |
Interchanges & Equivalent parts:
| PF167 |
| ALG296 |
| A952 |
| A963 |
| BF825 |
| 86142 |
| 86165 |
| 86166 |
| 86166MP |
| 296F |
| L131 |
| L137 |
| L296F |
| J8620296 |
| 1879513 |
| 26560017 |
| F03027450 |
| P26561117 |
| 522 |
| 533 |
| 566 |
| FFP10525 |

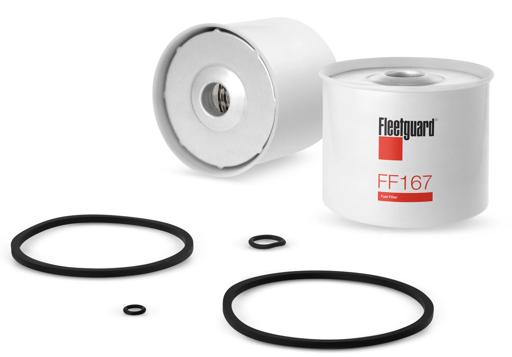

| FF167 |

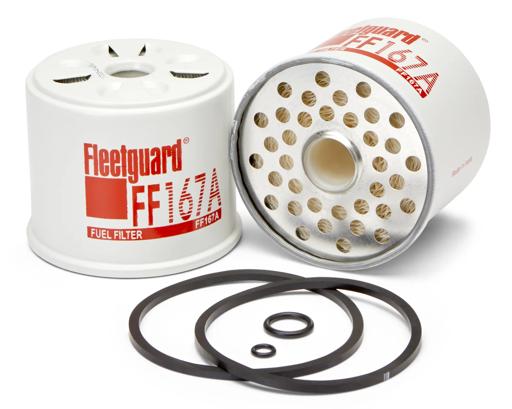

| FF167A |
| FFR8167 |
| FFR8167A |
| G296B |
| G296M |
| GG298 |
| 952 |
| FF963 |
| C1191 |
| C1191A |
| C1191PL |
| C4155 |
| 963 |
| F963 |
| FF952 |
| A16020 |
| HDA16020 |
| E2605101 |
| E751K |
| E75KD42 |
| SN001 |
| F960 |
| F961 |
| F961A |
| KF961A |
| BF917X |
| H9161X |
| P907X |
| P9155O |
| P91610 |
| P9161O |
| P9161X |
| P9165 |
| P91650 |
| P9165O |
| P9165X |
| P917X |
| P917 |
| P9172X |
| MFF1000P |
| MP409P |
| AFD157 |
| EFG296 |
| EFG3 |
| EFG315 |
| EFG4 |
| EFG5 |
| EFG88 |
| F0157 |
| FD157 |
| FD157FP |
| FD167 |
| FD169 |
| FG25 |
| FG38 |
| FL157 |
| FO157 |
| SFG103 |
| 608018 |
| 3142 |
| 3166 |
| 3166MP |
| RC149A |
| P346P |
| KX23 |
| L296FE |
| MP409 |
| F1061 |
| F50149 |
| F50150 |
| F57629 |
| MF629A |
| MFF516A |
| MFF629 |
| MFF629A |
| MFF629F |
| PED116 |
| PM4020 |
| T149 |
| T150 |
| FC51041 |
| FC1702 |
| FC5103 |
| FC5104 |
| FC5106 |
| FC5109 |
| SK3960 |
| SK3980 |
| SFF0167 |
| 9250787 |
| P2155 |
| PC2155 |
| PC3155 |
| 2436002 |
| 2201700 |
| 2436000 |
| 2436001 |
| 2030P |
| 33142 |
| 33166 |
| 33166MP |
| CR522 |
| CW1172MP |
| W33166 |
| ACD159 |
| ACD173 |
| ACD51 |
| ACD59 |
| TP621 |
| 70251397 |
| 702513979 |
| 835994M91 |
| 730290101 |
| MD093 |
| 105640406001 |
| 10564040600102 |
| 105640406002 |
| 10564040601 |
| FEM4039 |
| 2911649 |
| R2325P |
| PF223 |
| 157854 |
| 803972 |
| FSType |
| 803864 |
| 200212 |
| E75K |
