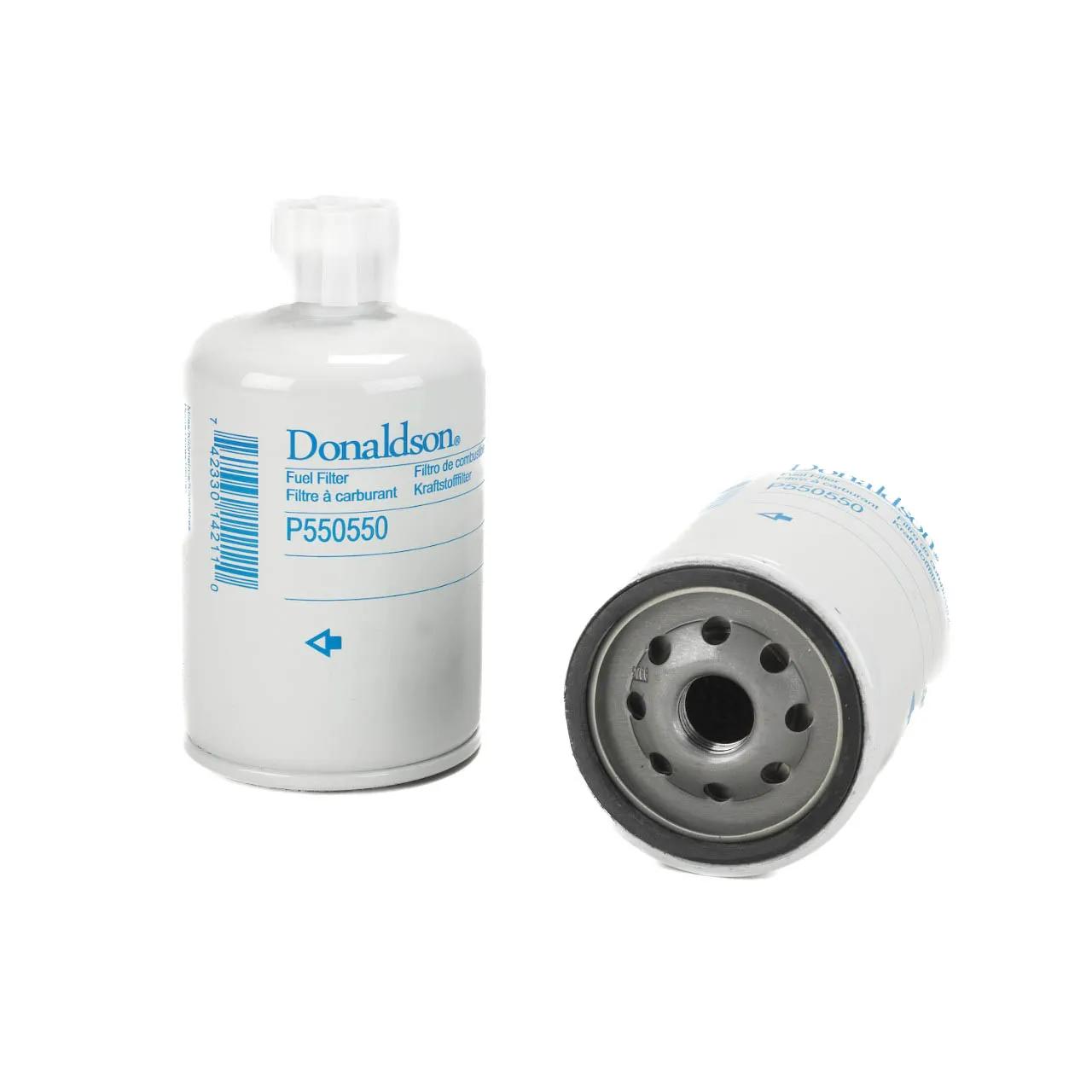

Donaldson Fuel/Water Separator Spin-On Filter, 5.58 in Length, 3.1 in Outer Diameter, 20 Micron Efficiency
#DONP550550
Product Overview
Donaldson spin-on fuel filter and water separator delivering 20 micron filtration efficiency with 90% emulsified water removal. Designed to meet SAE J1488 and J1985 standards for superior performance in on- and off-road applications. Not for marine use.Fuel Filter, Water Separator, Collapse Burst Pressure: 80 psi, 0.9 Filter Efficiency, Filter Rating: 20 micron, 2.46 in Gasket I.D., 2.76 in Gasket O.D., 3.10 in OD, Standards: SAE J1488, J1985, Spin-On, 3/4-16 UN Thread, 5.58 in L
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Test Std | SAE J1488, J1985 |
| Emulsified H2O Efficiency | 90 Percent |
| Gasket ID | 2.46 in (62.5 mm) |
| Gasket OD | 2.76 in (70.2 mm) |
| Length | 5.58 in |
| Notes | Not for Marine Applications |
| Outer Diameter | 3.1 in (78.74 mm) |
| Length Range | 5 to 5.99 in |
| Style | Spin-On |
| Collapse Burst Pressure | 80 psi |
| Filter Efficiency | 0.9 |
| Filter Rating | 20 micron |
| Filter Type | Water Separator |
| Thread Size | 3/4-16 UN |
| Standards | SAE J1488, J1985 |
| Product Category | Fuel Filter |
Interchanges & Equivalent parts:
| BF9904 |
| BF1275 |
| 86616 |

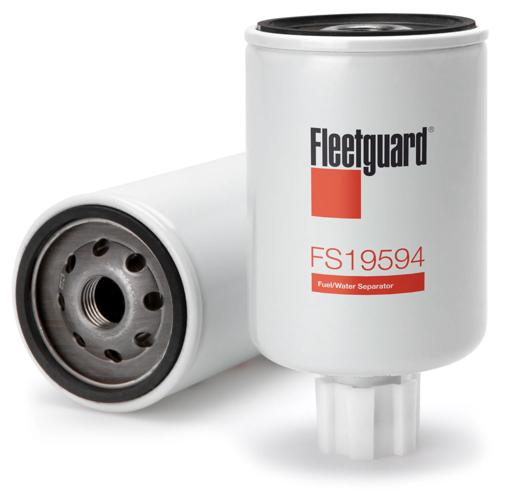

| FS19594 |
| FSR819594 |
| PS10966 |
| H240WK |
| SN40533 |
| FS3616 |
| LFF9594 |
| WK94022 |
| 3616 |
| Z686 |
| FC1814 |
| SK3294 |
| 2444400 |
| 33616 |
| 533616 |
| 95616 |
| 31782306 |
| C6003117480 |
| C6003112130 |
| 186933 |
| BR1179P |
| KC189 |
| 537A0211 |
| 164037F40B |
| 164037F401 |
| FS550550 |
| C6003112110 |
| DN P550550 |
| DN P550550 |
| 2191-P550550 |
| 600-311-2110 |
| DONP550550 |
| FS19594FLG |
| WF8319 |
| LFF5966 |
| 6003112110 |
| TP1526 |
