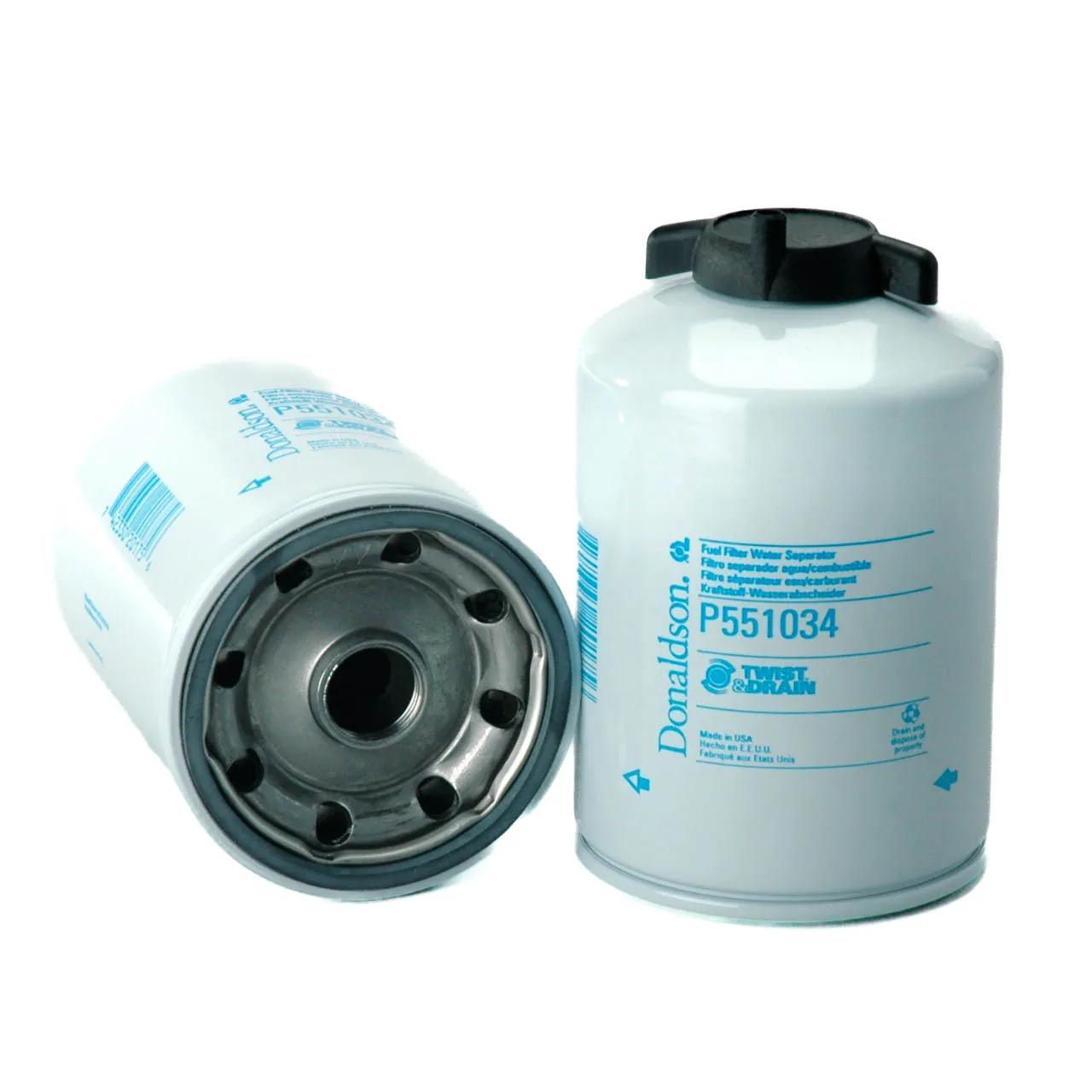

Donaldson Fuel/Water Separator Spin-On Filter, 6.82 in Length, 1-14 UN Thread, 4.23 in OD, 10 Micron Efficiency
#DONP551034
Product Overview
Wide range of efficiency ratings - you can rely on Donaldson's advanced filtration technology to provide the performance needed. This fuel/water separator features cellulose media with 95% emulsified water efficiency and a 10 micron filter rating, designed for superior performance in thousands of on- and off-road applications.Fuel Filter, Water Separator, Cellulose Media, Collapse Burst Pressure: 100 psi, 0.95 Filter Efficiency, Filter Rating: 10 micron, 3.56 in Gasket I.D., 3.90 in Gasket O.D., 4.22 in OD, Standards: SAE J1488, J1985, Spin-On, 1-14 UN Thread, For RACOR S3226T, 6.81 in L
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Application | RACOR S3226T |
| Emulsified H2O Efficiency | 95 Percent |
| Gasket ID | 3.56 in (90.5 mm) |
| Gasket OD | 3.9 in (99.1 mm) |
| Length | 6-13/16 in |
| Notes | Not for Marine Applications |
| Outer Diameter | 4.23 in |
| Style | Spin-On |
| Thread Size | 1-14 UN |
| Collapse Burst Pressure | 100 psi |
| Filter Efficiency | 0.95 |
| Filter Rating | 10 micron |
| Filter Type | Water Separator |
| Thread Size | 1-14 UN |
| Media Type | Cellulose |
| Standards | SAE J1488, J1985 |
| Product Category | Fuel Filter |
Interchanges & Equivalent parts:
| ABPN122R50419 |
| BF1296O |
| BF1346 |
| BF1346SP |
| BF1347 |
| WBF219B1 |
| BF9925O |
| 86412 |
| 86813 |
| FS1291 |
| FS19538 |
| FS19845 |
| FS19847 |
| FS19907 |
| FS19931 |
| FS19932 |
| FS19933 |
| FSR81291 |
| FSR819593 |
| PS7714 |
| PS9794 |
| FF1003 |
| H304WK |
| SN70246 |
| LFF5850 |
| LFF5850U |
| LFF5851 |
| LFF5851U |
| PL2707X |
| PL270X |
| 600006 |
| 3047 |
| 3412 |
| F65996 |
| F66026 |
| S6464 |
| WF10310 |
| 33047 |
| 33412 |
| 533812 |
| 553812 |
| SF10016 |
| WF10017 |
| WF10016 |
| 95412 |
| 13050733 |
| HG1500080146 |
| 40040300022 |
| K1006530 |
| 324957001 |
| ABPS3226FL02 |
| 319457L002 |
| 1685159C91 |
| 7306AAP00040N |
| FS550554 |
| 1000700908 |
| SK48662 |
| 600310 |
| ABP N03 F51034 |
| SP188108 |
| ALG2443 |
| K1006520 |
| 10024926 |
| DONP550554 |
| FS19593 |
| FS19932FLG |
| LUBLFF5851U |
| P550554 |
| S3226 |
| WF10 |
| 96677 |
| 86047 |
| 96699 |
| PS11143 |
| 96015 |
| BF9925-O |
| H730WK |
| H731WKD764 |
| 300109004 |
