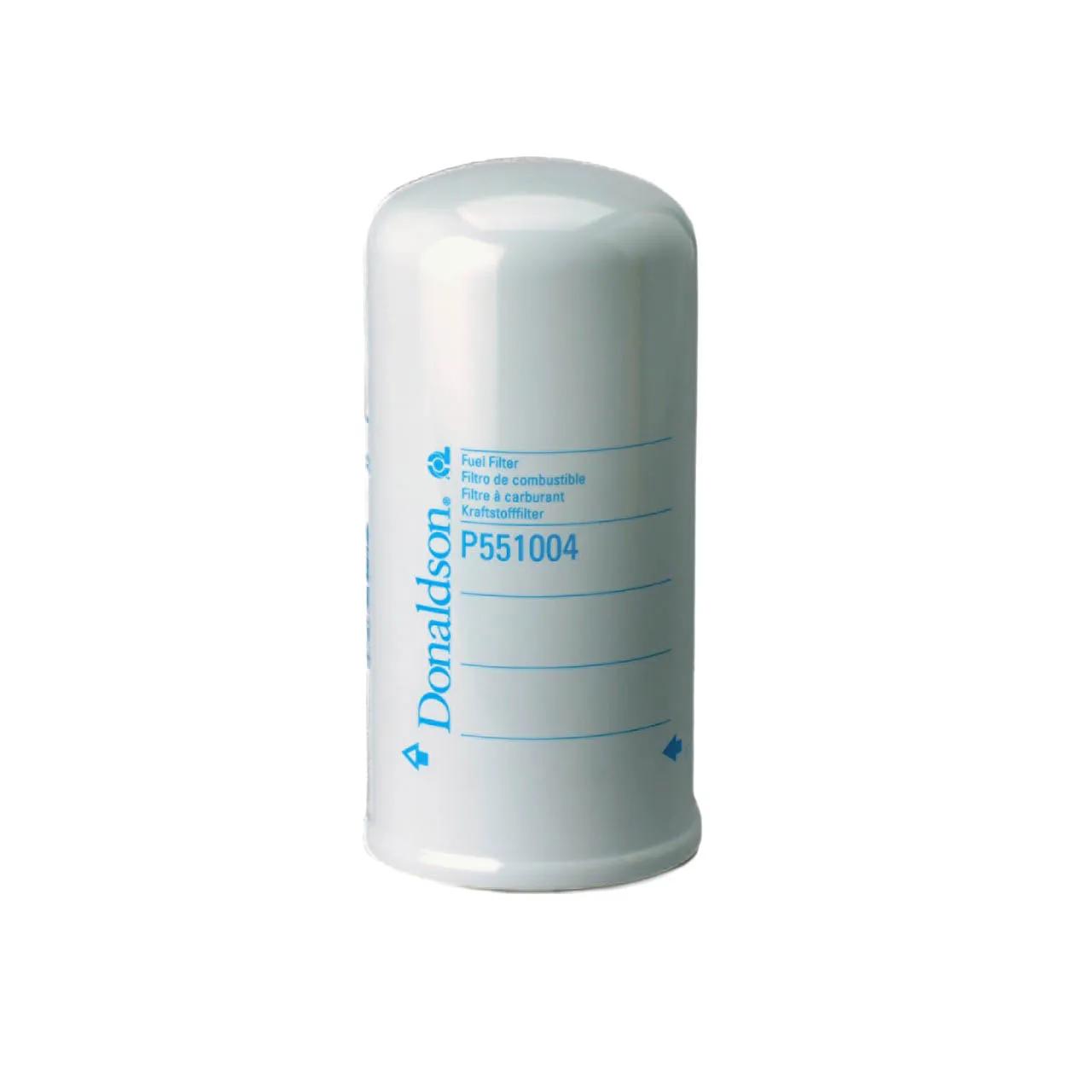

Donaldson Fuel/Water Separator Spin-On Filter, 7.88 in Length, 1-14 UN Thread, 3.82 in Outer Diameter, Synthetic Media
#DONP551004
Product Overview
Donaldson spin-on fuel/water separator filter featuring synthetic media for superior filtration performance. Designed to meet SAE J1985 standards with 5 micron efficiency, suitable for PACCAR applications.Fuel Filter, Synthetic Media, Collapse Burst Pressure: 500 psi, Filter Rating: 5 micron, 2.48 in Gasket I.D., 2.76 in Gasket O.D., 3.82 in OD, Standards: SAE J1985, Spin-On, 1-14 UN Thread, For PACCAR 1655115, 7.88 in L
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
- Synthetic media for enhanced filtration efficiency and durability.
- Meets SAE J1985 efficiency test standards with 5 micron filter rating.
- Collapse burst pressure rated at 500 psi for reliable operation.
Specifications
| Application | PACCAR 1655115 |
| Diameter Range | 3 to 3.99 in |
| Efficiency 99% | 5 Micron |
| Efficiency Test Std | SAE J1985 |
| Gasket ID | 2.48 in (63 mm) |
| Gasket OD | 2.76 in (70.2 mm) |
| Length | 7.88 in |
| Outer Diameter | 3.82 in (97.03 mm) |
| Length Range | 7 to 7.99 in |
| Style | Spin-On |
| Thread Size | 1-14 UN |
| Vehicle Make | Paccar |
| Collapse Burst Pressure | 500 psi |
| Filter Rating | 5 micron |
| Thread Size | 1-14 UN |
| Media Type | Synthetic |
| Standards | SAE J1985 |
| Product Category | Fuel Filter |
Interchanges & Equivalent parts:
| P551004 |
| 3177 |
| 33177 |
| BF9927 |
| 86177 |

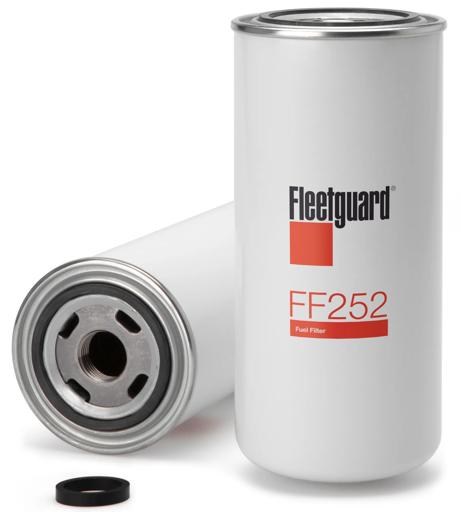

| FF252 |
| FF1241 |
| LFF6289 |
| WDK96218 |
| 1655115 |
| 1655115PE |
| 2191-P551004 |
| A4721800509 |
| FF252FLG |
| LFF6289LFB |
| ABP N03 F51004 |
| DN P551004 |
| H564WK |
