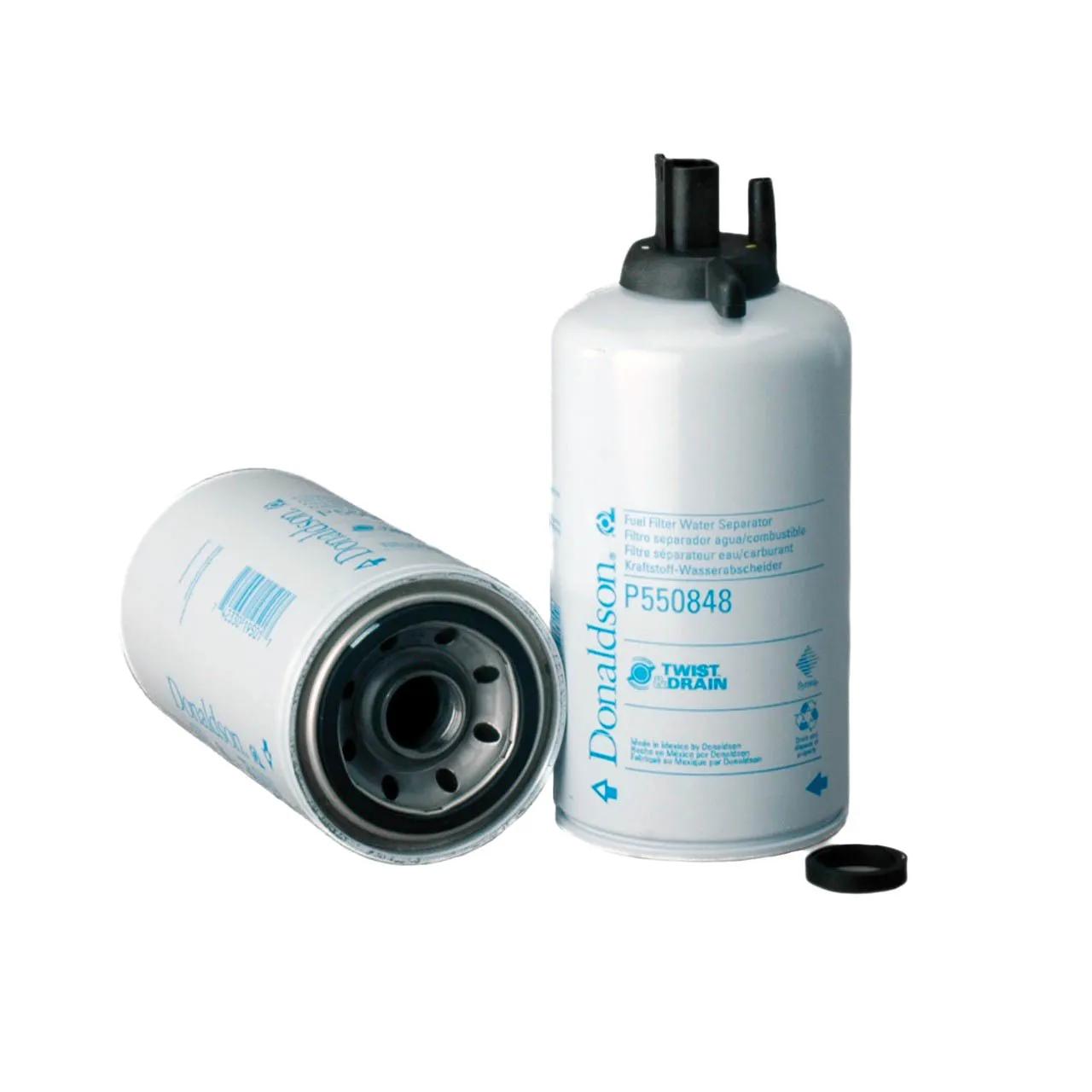

Donaldson Fuel/Water Separator Spin-On Filter, 8.41 in Length, 1-14 UN Thread, 3.67 in OD, Composite Media, 10 Micron
#DONP550848
Product Overview
Fuel Filter, Water Separator, Composite Media, 0.95 Filter Efficiency, Filter Rating: 10 micron, 2.44 in Gasket I.D., 2.83 in Gasket O.D., 3.67 in OD, Standards: SAE J1985, Spin-On, 1-14 UN Thread, 8.4 in L
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency 99% | 10 Micron |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 95 Percent |
| Gasket ID | 2.44 in (62 mm) |
| Gasket OD | 2.83 in (71.9 mm) |
| Length | 8-13/32 in |
| Notes | Not for Marine Applications |
| Outer Diameter | 3.67 in (93.22 mm) |
| Length Range | 8 to 8.99 in |
| Style | Spin-On |
| Thread Size | 1-14 UN |
| Type | Water Separator |
| Filter Efficiency | 0.95 |
| Filter Rating | 10 micron |
| Filter Type | Water Separator |
| Thread Size | 1-14 UN |
| Media Type | Composite |
| Standards | SAE J1985 |
| Product Category | Fuel Filter |
Interchanges & Equivalent parts:
| ALG2213 |
| BF1385SPS |
| BF46065SPS |
| 86955 |
| 86732 |
| FS13732 |
| FS19784 |
| FF1189SPS |
| SN40602 |
| LFF9732 |
| 3732 |
| 3955 |
| FG732 |
| Z831 |
| SK3183 |
| 33732 |
| 33955 |
| 533732 |
| 2657828816 |
| 4700945147 |
| 86038508 |
| 87356193 |
| 3973233 |
| 4931955 |
| 23061666 |
| 945147 |
| 263F107031 |
| 1635303 |
| 57890428 |
| 32925763 |
| 70020349 |
| 9238290700 |
| 40C0449 |
| 111972 |
| 71410010 |
| 715507A1 |
| 537A0388 |
| 87356194 |
| 84477359 |
| 4032390050 |
| 60208879 |
| B222100000444 |
| 103139 |
| 36361415030 |
| 288047704904 |
| 704970240 |
| 204214 |
| FS550848 |
| 43919935 |
| WK90201X |
| H514WKD695 |
| 5301449 |
| 49501000102 |
| 0019830505 |
| FS19732 |
| 4992119 |
| 262760 |
| BF1385-SPS |
| DONP550848 |
| FS19784FLG |
| FF1189-SPS |
| BF46065-SPS |
| ABP N03 F50848 |
| 3964599 |
| 90032021 |
| 19830505 |
