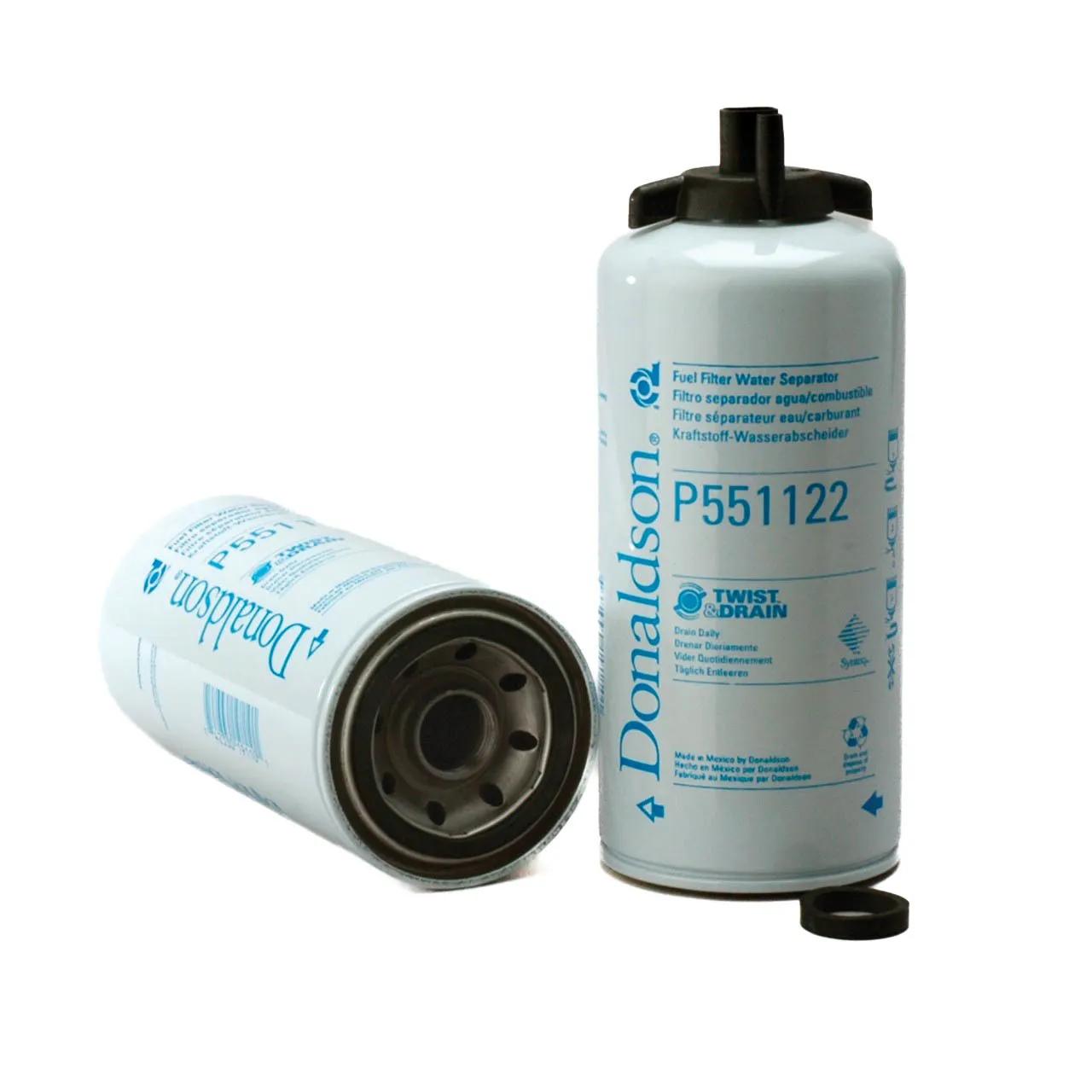

Donaldson Fuel/Water Separator Spin-On Filter, 9.04 in Length, 1-14 UN Thread, 3.66 in OD, 10 Micron Efficiency
#DONP551122
Product Overview
Fuel Filter, Water Separator, Composite Media, 0.95 Filter Efficiency, Filter Rating: 10 micron, 2.4 in Gasket I.D., 2.8 in Gasket O.D., 3.66 in OD, Stand Pipe: Yes, Standards: SAE J1985, Spin-On, 1-14 UN Thread, 9.03 in L
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency 99% | 10 Micron |
| Emulsified H2O Efficiency | 95 Percent |
| Gasket ID | 2.4 in (61 mm) |
| Gasket OD | 2.8 in (71.2 mm) |
| Length | 9-3/64 in |
| Notes | Not for Marine Applications |
| Outer Diameter | 3.66 in (92.97 mm) |
| Length Range | 9 to 9.99 in |
| Stand Pipe | Yes |
| Style | Spin-On |
| Thread Size | 1-14 UN |
| Type | Water Separator |
| Filter Efficiency | 95% |
| Filter Rating | 10 Micron |
| Filter Type | Water Separator |
| Thread Size | 1-14 UN |
| Media Type | Composite |
| Standards | SAE J1985 |
| Product Category | Fuel Filter |
Interchanges & Equivalent parts:
| ALG9072 |
| ABPN10GFS1022 |
| BF1272SPS |
| 86422 |
| FS1022 |
| PS8689 |
| GPP1022S |
| FF1108SP |
| FF1108SPS |
| SN40514 |
| LFF1022 |
| 3422 |
| F75984 |
| Z397 |
| Z823 |
| SFC570210 |
| SK3252 |
| 33422 |
| TF1029 |
| FI15170 |
| SFS4749 |
| BFE072 |
| J800394 |
| 459300016506 |
| VF2819 |
| 3800394 |
| 3944269 |
| 11NA70010 |
| 22177711 |
| 6744716040 |
| 4136520 |
| 707153A1 |
| MB504749 |
| S1680B |
| 15500391 |
| FS551122 |
| P552032 |
| ABP N03 F51122 |
| TWD P551122 |
| 2191-P551122 |
| 220594 |
| BF1272-SPS |
| BF1293SPS |
| DONP551022 |
| DONP551122 |
| FF1108-SPS |
| P551022 |
| BF1293-SPS |
| TP1529 |
| FS1022FLG |
